When reusing the rear axle beam assembly:

i.

1.51,1.281 1.896,1.281 true 1.917,1.385 1.917,1.552 1.917,1.552 2.229,1.552 true 2.25,1.448 2.563,1.604 0.313,0.156 10 false *a 1.333,1.208 1.646,1.365 0.313,0.156 10 false *b

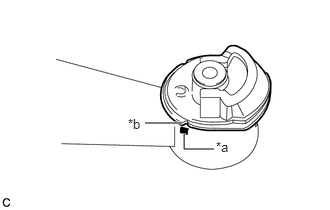

*a	Matchmark
*b	Notch

Align the notch on a new rear axle carrier bushing LH with the matchmark on the rear axle beam assembly and temporarily install the rear axle carrier bushing LH to the rear axle beam assembly.

NOTICE:

Be sure to install the rear axle carrier bushing LH in the same direction as it was before removal. The rear axle carrier bushing LH has to be installed in a specific direction.

When using a new rear axle beam assembly:

i.

2.583,1.146 2.896,1.302 0.313,0.156 10 false *a

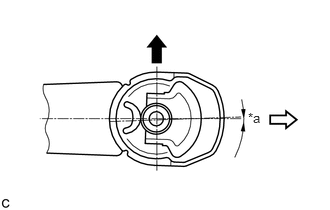

*a	0°53' +/- 3° (0.88° +/- 3°)
	Upper Side of the Vehicle
	Front of the Vehicle

Temporarily install a new rear axle carrier bushing LH as shown in the illustration.

NOTICE:

Be sure to install the rear axle carrier bushing LH as shown in the illustration. The rear axle carrier bushing LH has to be installed in a specific direction.

2.563,1.323 2.625,1.219 2.625,1.219 3.021,1.219 false 1.667,1.854 1.667,2.25 1.667,2.25 2.375,2.25 false 1.865,2.24 1.865,1.521 true 2.188,2.24 2.188,1.542 true 1.979,2.24 1.979,1.708 false 3.083,2.667 3.354,2.906 0.271,0.24 10 false *a 1.688,0.219 2,0.375 0.313,0.156 10 false *b 3.063,1.146 3.365,1.438 0.302,0.292 10 false SST 2.417,2.167 2.875,2.365 0.458,0.198 10 false SST

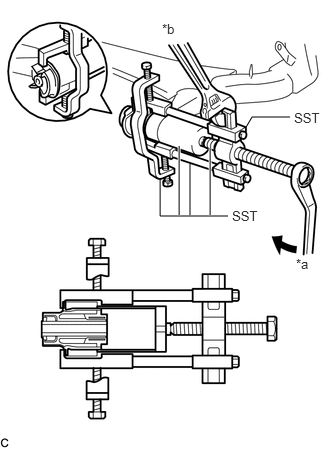

*a	Turn
*b	Hold

Using SST, install the rear axle carrier bushing LH to the rear axle beam assembly.

SST

09710-30012  (09710-04101)
09950-40011  (09951-04020, 09952-04010, 09953-04030, 09954-04020, 09955-04051, 09957-04010, 09958-04011)
09950-60010  (09951-00620)

NOTICE:

·

Do not damage the rubber portion when installing the rear axle carrier bushing LH.

·

Apply grease to the threads and tip of the SST center bolt before use.

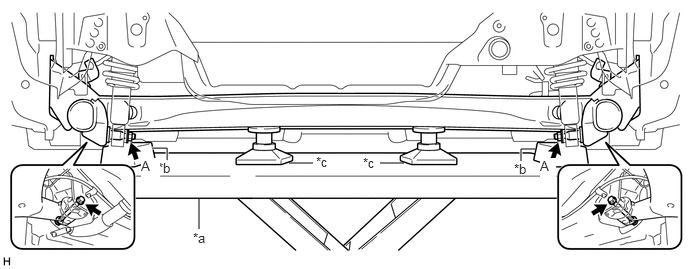

Slowly jack up the rear axle beam assembly with an engine lifter using 2 wooden blocks and 2 attachments or equivalent tools, and temporarily install the rear axle beam assembly to the body with the 2 bolts and 2 nuts.

2.073,2.385 2.073,2.073 false 3.26,1.698 3.01,1.698 false 4.208,1.698 3.958,1.698 false 1.74,1.667 1.74,1.542 1.74,1.542 1.583,1.542 true 5.427,1.677 5.427,1.552 5.427,1.552 5.573,1.552 true 2.01,2.396 2.323,2.552 0.313,0.156 10 false *a 1.646,1.667 1.958,1.823 0.313,0.156 10 false *b 3.292,1.604 3.604,1.76 0.313,0.156 10 false *c 3.781,1.615 4.073,1.781 0.292,0.167 10 false *c 5.354,1.677 5.667,1.833 0.313,0.156 10 false *b 1.469,1.646 1.667,1.865 0.198,0.219 10 true A 5.625,1.646 5.792,1.875 0.167,0.229 10 true A

*a	Engine Lifter	*b	Wooden Block
*c	Attachment	-	-

CAUTION:

Make sure to secure the rear axle beam assembly to prevent it from dropping.

NOTICE:

·

Because the nuts have their own stoppers, do not turn the nuts. Tighten the bolts with the nuts secured.

·

Insert the bolts with the threaded end facing the outside of the vehicle.

Install the rear flexible hose LH to the rear axle beam assembly with the bolt.

Torque:

29 N*m (296 kgf*cm, 21 ft.*lbf)

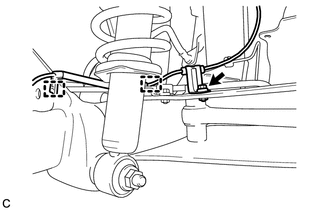

Install the skid control sensor wire LH to the rear axle beam assembly with the bolt and 2 clamps.

Torque:

8.0 N*m (82 kgf*cm, 71 in.*lbf)

0.073,2.344 3.375,4.448 3.302,2.104 0.083,0.031 3.396,2.188 3.313,2.156 0.115,0.052 0.469,0.292 0.354,0.24 10 true *A 0.156,2.396 0.406,2.635 0.25,0.24 10 true *B

*A	LH Side
*B	RH Side

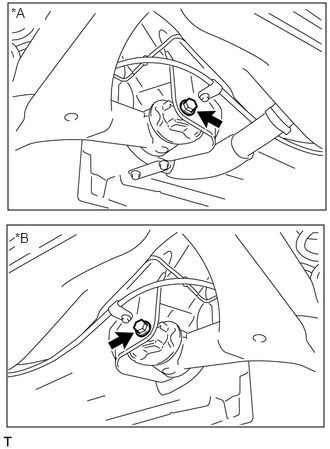

Install the rear axle beam assembly with the 2 bolts and 2 nuts.

Torque:

85 N*m (867 kgf*cm, 63 ft.*lbf)

NOTICE:

Because the nuts have their own stoppers, do not turn the nuts. Tighten the bolts with the nuts secured.

0.208,0.042 3.365,2.135 3.156,2.094 0.208,2.188 3.354,4.385 3.146,2.198 0.26,0.073 0.542,0.271 0.281,0.198 10 false *A 0.26,2.25 0.531,2.458 0.271,0.208 10 false *B

*A	LH Side
*B	RH Side

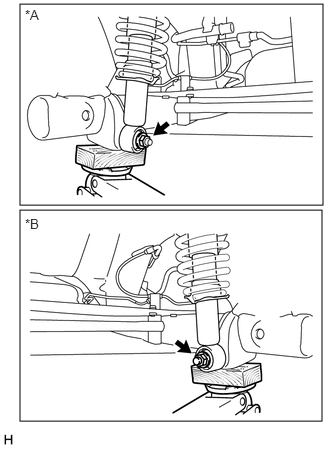

Install the rear shock absorber with coil springs LH and RH to the rear axle beam assembly with the 2 nuts.

Torque:

80 N*m (816 kgf*cm, 59 ft.*lbf)
