AXLE AND DIFFERENTIAL REAR AXLE HUB BOLT REPLACEMENT

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 1.REMOVE REAR WHEEL

Click hereSuspension>TIRE / WHEEL>TIRE AND WHEEL>REMOVAL

Hide Display 58804A 2.REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL

Hide Display 46441A 3.LOOSEN NO. 2 WIRE ADJUSTING NUT

Click hereBrake>PARKING BRAKE>PARKING BRAKE LEVER>REMOVAL

Hide Display 46430 4.SEPARATE NO. 3 PARKING BRAKE CABLE ASSEMBLY

Click hereBrake>BRAKE (REAR)>REAR BRAKE>REMOVAL

Hide Display 5.SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY

Remove the 2 bolts and separate the rear disc brake caliper assembly from the rear axle beam assembly.

NOTICE:: Use wire or an equivalent tool to keep the rear disc brake caliper assembly from hanging by the rear flexible hose.

Hide Display 42431 6.REMOVE REAR DISC

Click hereBrake>BRAKE (REAR)>REAR BRAKE>REMOVAL

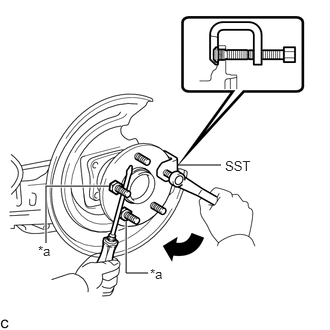

Hide Display 42312E 7.REMOVE REAR AXLE HUB BOLT

0.479,2.531 0.479,1.938 0.479,1.938 1.135,1.938 true 1.542,2.844 1.313,2.844 1.313,2.844 1.313,2.302 true 1.854,1.719 2.302,1.719 false 0.396,2.531 0.667,2.729 0.271,0.198 10 false *a 2.344,1.646 2.781,1.875 0.438,0.229 10 false SST 1.563,2.771 1.875,2.927 0.313,0.156 10 false *a

*a	Service Nut

Temporarily install 2 service nuts to the rear axle hub bolts as shown in the illustration.

Recommended Service Nut:: Thread diameter: 12.0 mm (0.472 in.); Thread pitch: 1.5 mm (0.0591 in.)

NOTICE:: Install the service nuts to prevent damage to the rear axle hub bolts.

Using SST and a screwdriver or an equivalent tool to hold the rear axle hub and bearing assembly, remove the rear axle hub bolt.

SST: 09628-10011

NOTICE:: Do not damage the threads of the rear axle hub bolts.

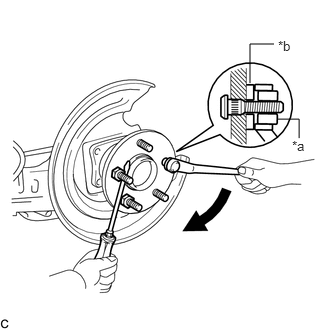

Hide Display 42312E 8.INSTALL REAR AXLE HUB BOLT

2.604,0.865 2.604,0.458 2.604,0.458 2.854,0.458 false 3.115,1.438 3.115,1.24 3.115,1.24 2.896,1.24 false 3.042,1.438 3.313,1.677 0.271,0.24 10 false *a 2.896,0.396 3.177,0.573 0.281,0.177 10 false *b

*a	Service Nut
*b	Washer

Temporarily install a new rear axle hub bolt to the rear axle hub and bearing assembly.

Install a washer and service nut to the rear axle hub bolt as shown in the illustration.

Recommended Service Nut:: Thread diameter: 12.0 mm (0.472 in.); Thread pitch: 1.5 mm (0.0591 in.)

HINT:: Recommended washer thickness is 5 mm (0.197 in.) or more.

Using a screwdriver or an equivalent tool to hold the rear axle hub and bearing assembly, install the rear axle hub bolt by tightening the service nut.

NOTICE:: ·

Install the service nuts to prevent damage to the rear axle hub bolts.

·

Do not damage the threads of the rear axle hub bolts.

Remove the 3 service nuts and washer from the 3 rear axle hub bolts.

Hide Display 42431 9.INSTALL REAR DISC

Click hereBrake>BRAKE (REAR)>REAR BRAKE>INSTALLATION

Hide Display 10.INSTALL REAR DISC BRAKE CALIPER ASSEMBLY

Install the rear disc brake caliper assembly to the rear axle beam assembly with the 2 bolts.

Torque:: 57.4 N*m (585 kgf*cm, 42 ft.*lbf)

Hide Display 46430 11.CONNECT NO. 3 PARKING BRAKE CABLE ASSEMBLY

Click hereBrake>BRAKE (REAR)>REAR BRAKE>INSTALLATION

Hide Display 12.ADJUST PARKING BRAKE

Click hereBrake>PARKING BRAKE>PARKING BRAKE SYSTEM>ADJUSTMENT

Hide Display 58804A 13.INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>INSTALLATION

Hide Display 14.INSTALL REAR WHEEL

Click hereSuspension>TIRE / WHEEL>TIRE AND WHEEL>INSTALLATION
