INTERIOR PANELS / TRIM FRONT CONSOLE BOX INSTALLATION
PROCEDURE
58910C

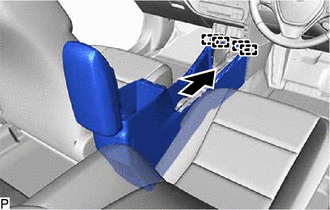

1.INSTALL REAR CONSOLE BOX ASSEMBLY
Engage the 4 guides as shown in the illustration.
for Manual Transaxle:
Install the rear console box assembly with the 2 bolts and 2 screws.
for Automatic Transaxle and CVT:
Install the rear console box assembly with the 2 bolts and 4 screws.
58815C
2.INSTALL CONSOLE BOX CARPET
Install the console box carpet.
58821C
3.INSTALL UPPER CONSOLE PANEL
Engage the 2 guides, 2 claws and 6 clips to install the upper console panel as shown in the illustration.
Engage the clamp.
58804A
4.INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY
Connect each connector.
Engage the 4 claws and 5 clips to install the upper console panel sub-assembly.
58843

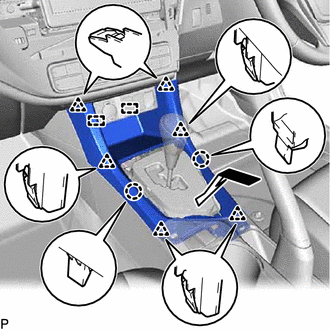

5.INSTALL SHIFTING HOLE BEZEL (for Manual Transaxle)
Engage the 2 guides.
Engage the 6 claws to install the shifting hole bezel.
58843
6.INSTALL SHIFTING HOLE BEZEL (for Automatic Transaxle and CVT)
Engage the 2 guides.
Engage the 6 claws to install the shifting hole bezel.
33504F

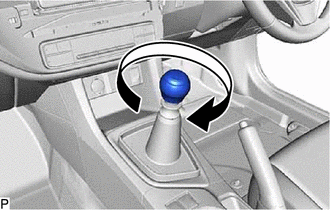

7.INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)
Turn the shift lever knob sub-assembly clockwise to install the shift lever knob sub-assembly.
58817A

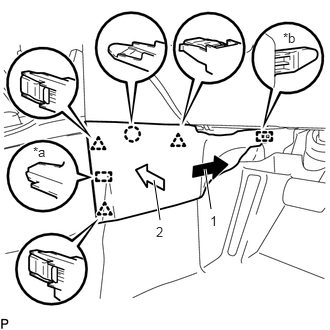

8.INSTALL FRONT NO. 2 CONSOLE BOX INSERT
| *a | Guide <A> |
| *b | Guide <B> |
Push the front No. 2 console box insert in the direction indicated by the arrow (1) to engage the guide <B>.
Push the front No. 2 console box insert in the direction indicated by the arrow (2) to engage the claw, 3 clips and guide <A> to install the front No. 2 console box insert.
58816B

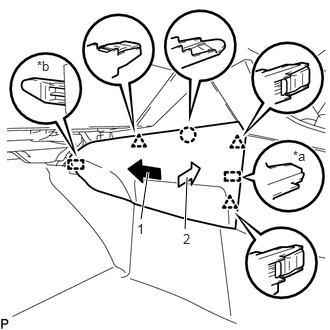

9.INSTALL CONSOLE BOX INSERT
| *a | Guide <A> |
| *b | Guide <B> |
Push the console box insert in the direction indicated by the arrow (1) to engage the guide <B>.
Push the console box insert in the direction indicated by the arrow (2) to engage the claw, 3 clips and guide <A> to install the console box insert.
55405B
10.INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
