INTERIOR PANELS / TRIM  UPPER INSTRUMENT PANEL  INSTALLATION


PROCEDURE

Hide 1.INSTALL UPPER INSTRUMENT PANEL ASSEMBLY

a.

When installing a new instrument panel sub-assembly:

i.

Immediately before installing the upper instrument panel assembly, twist and cut off the portion as shown in the illustration.

B358272



b.

Push the upper instrument panel assembly in the direction indicated by the arrow (1) to engage the 5 guides.

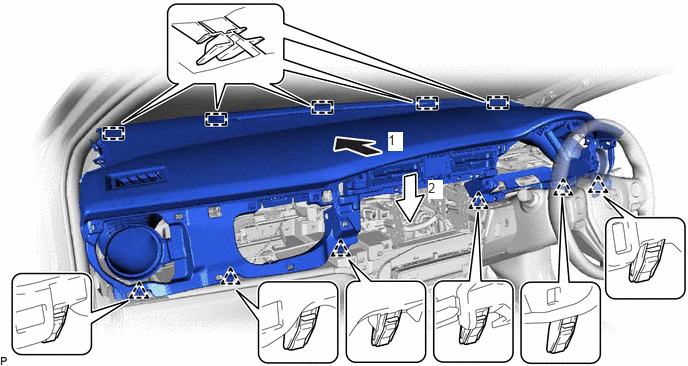

B480707N01
4.042,1.375 4.198,1.573 0.156,0.198 10 true 1 4.458,1.875 4.615,2.073 0.156,0.198 10 true 2


c.

Push the upper instrument panel assembly in the direction indicated by the arrow (2) to engage the 6 clips and install the upper instrument panel assembly.


d.

Install the bolt <A>.

Torque:
20 N*m (204 kgf*cm, 15 ft.*lbf)


e.

Install the 2 clips.


f.

Connect each connector.


Hide 55412C 3.INSTALL CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL

a.

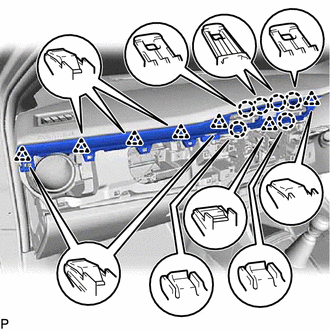

B480704

Engage the 6 claws and 7 clips to install the center No. 1 instrument cluster finish panel.


Hide 62212B 4.INSTALL FRONT PILLAR GARNISH ASSEMBLY LH

HINT:

Use the same procedure as for the RH side.

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION


Hide 55403F 5.INSTALL INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

a.

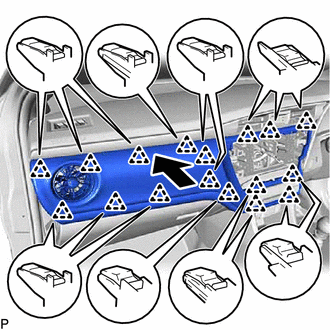

B480702

Engage the 17 clips to install the instrument panel finish panel sub-assembly as shown in the illustration.


Hide 55318C 6.INSTALL INSTRUMENT SIDE PANEL LH

a.

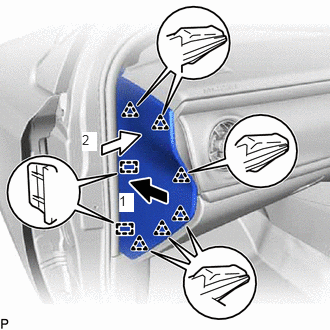

B456378N01
1.24,2.01 1.396,2.208 0.156,0.198 10 true 1 0.854,1.375 1.01,1.573 0.156,0.198 10 true 2

Push the instrument side panel LH in the direction indicated by the arrow (1) to engage the 2 guides and push it in the direction indicated by the arrow (2) to engage the 6 clips and install the instrument side panel LH.


Hide 62312B 7.INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION

Hide 62211U 8.INSTALL FRONT PILLAR GARNISH ASSEMBLY RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION

Hide 83100 9.INSTALL COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>INSTALLATION

Hide 55410C 10.INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

a.

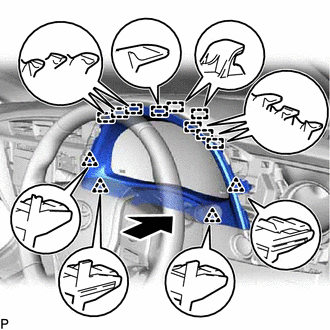

B456376

Engage the 9 guides and 4 clips to install the instrument cluster finish panel assembly as shown in the illustration.


Hide 55405B 11.INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

a.

Connect each connector.


b.

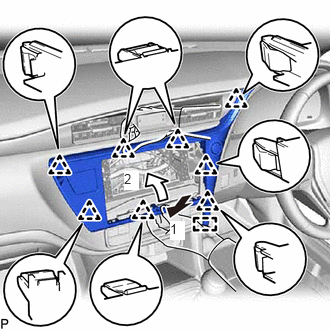

B480700N01
1.771,2.302 1.927,2.5 0.156,0.198 10 true 1 1.292,1.781 1.448,1.979 0.156,0.198 10 true 2

Push the center instrument cluster finish panel sub-assembly in the direction indicated by the arrow (1) to engage the guide and push it in the direction indicated by the arrow (2) to engage the 8 clips and install the center instrument cluster finish panel sub-assembly.


Hide 55404E 12.INSTALL UPPER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

a.

Engage the 4 clips to install the upper instrument cluster finish panel sub-assembly.


Hide 55317A 13.INSTALL INSTRUMENT SIDE PANEL RH

a.

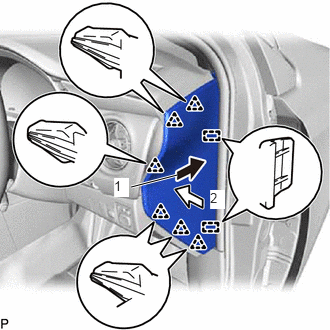

B456371N01
1.365,1.948 1.844,1.823 true 2.188,1.979 2.344,2.177 0.156,0.198 10 true 2 1.188,1.854 1.344,2.052 0.156,0.198 10 true 1

Push the instrument side panel RH in the direction indicated by the arrow (1) to engage the 2 guides and push it in the direction indicated by the arrow (2) to engage the 6 clips and install the instrument side panel RH.


Hide 62311B 14.INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>INSTALLATION

Hide 55435B 15.INSTALL NO. 1 METER HOOD CLUSTER

a.

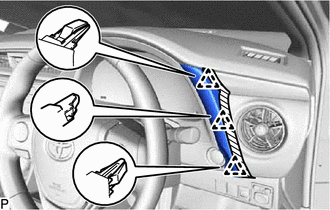

B456369C01
0,0 0,0 false

Engage the 3 clips to install the No. 1 meter hood cluster.


Hide 16.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>INITIALIZATION
