SUPPLEMENTAL RESTRAINT SYSTEMS  FRONT PASSENGER AIRBAG ASSEMBLY  INSTALLATION


PROCEDURE

Hide 82142A 1.INSTALL NO. 2 INSTRUMENT PANEL WIRE

a.

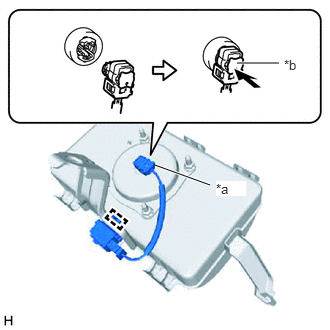

B324486C04
2.469,0.656 2.906,0.656 true 1.615,1.719 2.188,1.927 true 2.958,0.594 3.271,0.75 0.313,0.156 10 false *b 2.25,1.885 2.563,2.042 0.313,0.156 10 true *a
*a Airbag Connector
*b Airbag Connector Lock


Connect the airbag connector of the No. 2 instrument panel wire to the instrument panel passenger airbag assembly.

NOTICE:

When connecting any airbag connector, take care not to damage the airbag wire harness.



b.

Push in the airbag connector lock to install the airbag connector to the instrument panel passenger airbag assembly.


c.

Engage the clamp.


Hide 73960A 2.INSTALL INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY

a.
B356666

Engage the 3 hooks.


b.

Push in the instrument panel passenger airbag assembly to engage the 3 hooks.


c.

Install the instrument panel passenger airbag assembly with the 2 screws.


Hide 3.INSTALL UPPER INSTRUMENT PANEL ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>UPPER INSTRUMENT PANEL>INSTALLATION

Hide 82142A 4.CONNECT NO. 2 INSTRUMENT PANEL WIRE

a.

Check that the ignition switch is off.


b.

Check that the cable is disconnected from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.



c.

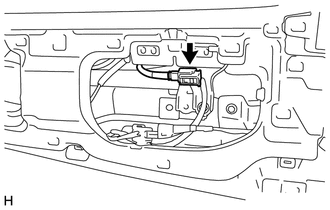

B356716

Connect the connector.

NOTICE:

When connecting any airbag connector, take care not to damage the airbag wire harness.



Hide 55412C 5.INSTALL CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>UPPER INSTRUMENT PANEL>INSTALLATION
