SUPPLEMENTAL RESTRAINT SYSTEMS AIRBAG SYSTEM DTC CHECK / CLEAR

DTC CHECK (USING SST CHECK WIRE)

1.792,1.344 1.792,1.865 1.792,1.865 1.979,1.865 false 1.615,0.792 1.615,0.271 1.615,0.271 1.802,0.271 false 2.021,1.781 2.271,1.969 0.25,0.188 10 false TC 1.844,0.198 2.094,0.375 0.25,0.177 10 false CG

Check for DTCs (Current trouble codes).

Turn the ignition switch to ON, and wait for at least 60 seconds.

ii.

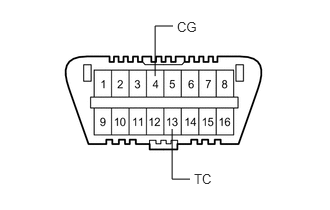

Using SST, connect terminals TC and CG of the DLC3.

SST: 09843-18040

NOTICE:: Connect the correct terminals to avoid a malfunction.

Check for DTCs (History trouble codes).

Turn the ignition switch off.

ii.

Using SST, connect terminals TC and CG of the DLC3.

SST: 09843-18040

NOTICE:: Connect the correct terminals to avoid a malfunction.

iii.

Turn the ignition switch to ON, and wait for at least 60 seconds.

Read the DTCs.

0.25,0.146 2.208,0.5 1.958,0.354 10 Normal System Code (without History Trouble Codes): 0.208,2.083 1.885,2.5 1.677,0.417 10 Normal System Code (with History Trouble Codes): 1.104,0.802 1.729,1.01 0.625,0.208 10 0.25 sec. 1.208,1.573 1.833,1.781 0.625,0.208 10 0.25 sec. 0.375,1.083 0.667,1.333 0.292,0.25 10 ON 0.375,1.448 0.667,1.698 0.292,0.25 10 OFF 0.375,2.917 0.667,3.167 0.292,0.25 10 ON 0.375,3.333 0.667,3.583 0.292,0.25 10 OFF 1.417,3.438 2.042,3.646 0.625,0.208 10 0.25 sec. 1.208,2.708 1.833,2.917 0.625,0.208 10 0.75 sec. 3.281,0.771 6,1.052 2.719,0.281 10 Trouble Code (Example Codes 11 and 31): 3.656,1.167 4.198,1.333 0.542,0.167 10 0.5 sec. 4.271,1.167 4.813,1.333 0.542,0.167 10 2.5 sec. 5.625,1.167 6.167,1.333 0.542,0.167 10 4.0 sec. 3.333,1.75 3.625,2 0.292,0.25 10 ON 3.333,2.188 3.625,2.438 0.292,0.25 10 OFF 3.875,3.167 4.49,3.417 0.615,0.25 10 DTC 11 4.958,3.167 5.688,3.458 0.729,0.292 10 DTC 31 6.344,2.552 6.844,2.719 0.5,0.167 10 Repeat 3.833,2.635 4.375,2.802 0.542,0.167 10 1.5 sec. 4.667,2.646 5.208,2.813 0.542,0.167 10 0.5 sec.

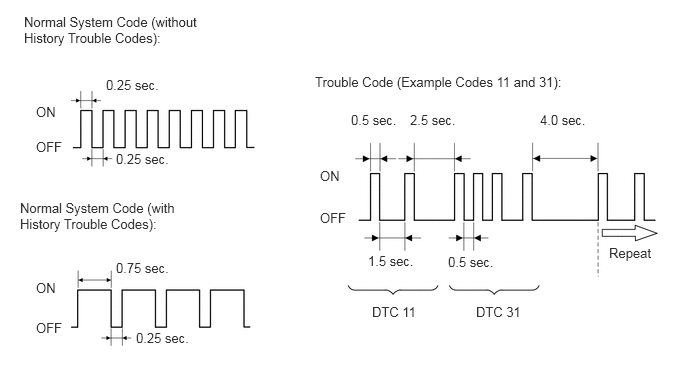

Read the blinking patterns of the DTCs. As an example, the blinking patterns for the normal system code and trouble codes 11 and 31 are shown in the illustration.

Normal system code indication (without history trouble codes)

The light blinks twice per second.

Normal system code indication (with history trouble codes)

When a history trouble code is stored in the airbag ECU assembly, the light blinks only once per second.

Trouble code indication

The first blink(s) indicate the first number of the DTC. The second blink(s) indicate the second number of the DTC and occur after a 1.5-second pause.

If there is more than 1 code, there will be a 2.5-second pause between each code. After all codes are shown, there will be a 4.0-second pause, and then all codes will be repeated.

HINT:: ·

If 2 or more malfunctions are found, the indication begins with the smaller-numbered code.

·

If DTCs are indicated without connecting the terminals, proceed to TC and CG Terminal Circuit.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>TC and CG Terminal Circuit

DTC CLEAR (USING SST CHECK WIRE)

Clear the DTCs.

When the ignition switch is turned off, the DTCs are cleared.

HINT:: Depending on the DTC, the code may not be cleared by turning the ignition switch off. In this case, proceed to the next step.

ii.

Using SST, connect terminals TC and CG of the DLC3, and then turn the ignition switch to ON.

SST: 09843-18040

iii.

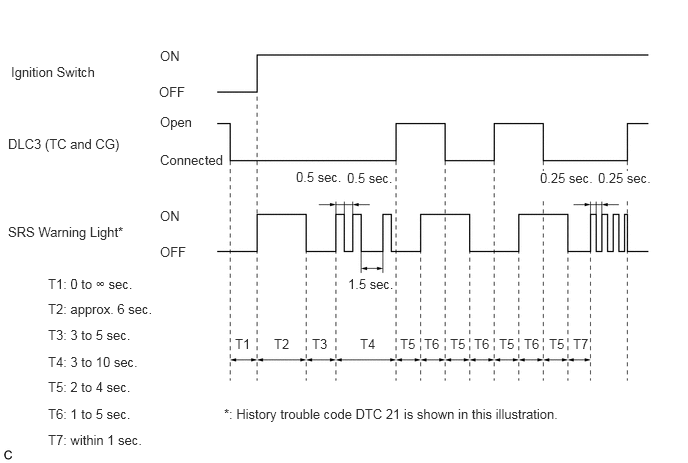

Disconnect terminal TC of the DLC3 within 3 to 10 seconds after the DTCs are output, and check if the SRS warning light comes on after 3 seconds.

iv.

Within 2 to 4 seconds after the SRS warning light comes on, connect terminals TC and CG of the DLC3.

The SRS warning light should go off within 2 to 4 seconds after connecting terminals TC and CG of the DLC3. Then, disconnect terminal TC within 2 to 4 seconds after the SRS warning light goes off.

vi.

The SRS warning light will come on again within 2 to 4 seconds after disconnecting terminal TC. Then, reconnect terminals TC and CG within 2 to 4 seconds after the SRS warning light comes on.

vii.

Check if the SRS warning light goes off within 2 to 4 seconds after connecting terminals TC and CG of the DLC3. Also check if the normal system code is output within 1 second after the SRS warning light goes off.

If DTCs are not cleared, repeat this procedure until the codes are cleared.

0.115,0.667 1.083,0.917 0.969,0.25 10 false Ignition Switch 1.656,0.875 2.073,1.125 0.417,0.25 10 false OFF 1.667,0.5 2.344,0.792 0.677,0.292 10 false ON 1.667,1.188 2.083,1.438 0.417,0.25 10 false Open 1.667,1.583 2.417,1.75 0.75,0.167 10 false Connected 1.667,2.542 2.083,2.792 0.417,0.25 10 false OFF 1.667,2.167 2.083,2.417 0.417,0.25 10 false ON 0.083,2.333 1.333,2.583 1.25,0.25 10 false SRS Warning Light* 0.083,1.417 1.25,1.667 1.167,0.25 10 false DLC3 (TC and CG) 0.5,2.875 1.667,3.042 1.167,0.167 10 false T1: 0 to ∞ sec. 0.5,3.135 1.667,3.302 1.167,0.167 10 false T2: approx. 6 sec. 0.5,3.406 1.667,3.573 1.167,0.167 10 false T3: 3 to 5 sec. 0.5,3.688 1.667,3.854 1.167,0.167 10 false T4: 3 to 10 sec. 0.5,3.948 1.667,4.115 1.167,0.167 10 false T5: 2 to 4 sec. 0.5,4.229 1.667,4.396 1.167,0.167 10 false T6: 1 to 5 sec. 0.5,4.5 1.667,4.667 1.167,0.167 10 false T7: within 1 sec. 2.333,4.229 6.146,4.51 3.813,0.281 10 false *: History trouble code DTC 21 is shown in this illustration. 2.448,3.5 3.615,3.667 1.167,0.167 10 false T1 2.854,3.5 4.021,3.667 1.167,0.167 10 false T2 3.25,3.5 3.583,3.667 0.333,0.167 10 false T3 3.75,3.5 4.083,3.667 0.333,0.167 10 false T4 4.167,3.5 4.5,3.667 0.333,0.167 10 false T5 4.417,3.5 4.75,3.667 0.333,0.167 10 false T6 4.688,3.5 5.021,3.667 0.333,0.167 10 false T5 5.198,3.5 5.531,3.667 0.333,0.167 10 false T5 5.719,3.5 6.052,3.667 0.333,0.167 10 false T5 4.938,3.5 5.271,3.667 0.333,0.167 10 false T6 5.458,3.5 5.792,3.667 0.333,0.167 10 false T6 5.969,3.5 6.302,3.667 0.333,0.167 10 false T7 3.625,2.875 4.24,3.073 0.615,0.198 10 false 1.5 sec. 3.083,1.76 4.25,1.927 1.167,0.167 10 false 0.5 sec. 3.615,1.771 4.781,1.938 1.167,0.167 10 false 0.5 sec. 5.625,1.771 6.229,1.958 0.604,0.188 10 false 0.25 sec. 6.229,1.771 6.906,1.938 0.677,0.167 10 false 0.25 sec.

DTC CHECK (USING GTS)

Turn the ignition switch off.

Connect the GTS to the DLC3.

Turn the ignition switch to ON, and wait for at least 60 seconds.

Turn the GTS on.

Enter the following menus: Body Electrical / SRS Airbag / Trouble Codes.

Body Electrical > SRS Airbag > Trouble Codes: 50001 188

Check for DTCs by following the prompts on the GTS screen.

HINT:: Refer to the GTS operator's manual for further details.

DTC CLEAR (USING GTS)

Turn the ignition switch off.

Connect the GTS to the DLC3.

Turn the ignition switch to ON, and wait for at least 60 seconds.

Turn the GTS on.

Enter the following menus: Body Electrical / SRS Airbag / Trouble Codes.

Body Electrical > SRS Airbag > Clear DTCs: 50002 188

Clear the DTCs by following the prompts on the GTS screen.

HINT:: Refer to the GTS operator's manual for further details.
