PARKING BRAKE  PARKING BRAKE LEVER  REMOVAL


PROCEDURE

Hide 58910C 1.REMOVE REAR CONSOLE BOX ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL

Hide 46441A 2.LOOSEN NO. 2 WIRE ADJUSTING NUT

a.

Release the parking brake lever lock and return it to its off position.


b.

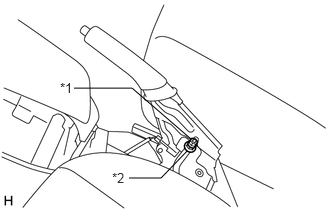

C291467C01
0.771,0.917 1.375,0.917 1.375,0.917 1.99,1.448 false 1.344,1.854 1.677,1.854 1.677,1.854 1.948,1.573 false 0.625,0.833 0.938,0.99 0.313,0.156 10 false *1 1.167,1.771 1.479,1.927 0.313,0.156 10 false *2
*1 Lock Nut
*2 No. 2 Wire Adjusting Nut


Remove the lock nut and loosen the No. 2 wire adjusting nut.


Hide 46430 3.SEPARATE NO. 3 PARKING BRAKE CABLE ASSEMBLY

a.

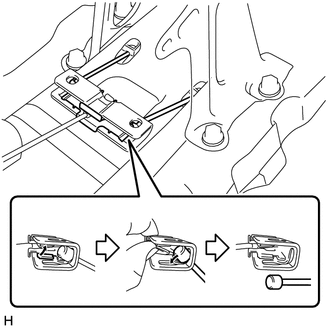

C291468

Separate the No. 3 parking brake cable assembly from the parking brake lever sub-assembly as shown in the illustration.


Hide 46420 4.SEPARATE NO. 2 PARKING BRAKE CABLE ASSEMBLY

HINT:

Perform the same procedure as for the No. 3 parking brake cable assembly.


Hide 46201E 5.REMOVE PARKING BRAKE LEVER SUB-ASSEMBLY

a.
C291469

Disconnect the parking brake switch assembly connector.


b.
C291470

Remove the 2 bolts and parking brake lever sub-assembly.
