*a	Identification Mark
	Front of the Vehicle

Temporarily install the rear stabilizer bar to the rear axle beam assembly with the 2 bolts and 2 nuts.

NOTICE:

·

Ensure that the identification mark is on the right side of the vehicle.

·

Insert the bolts with the threaded end facing the lower side of the vehicle.

0.063,0.063 3.365,2.292 3.302,2.229 0.063,2.333 3.385,4.51 3.323,2.177 0.125,0.115 0.438,0.271 0.313,0.156 10 false *A 0.115,2.385 0.427,2.542 0.313,0.156 10 false *B

*A	LH Side
*B	RH Side

Fully tighten the 2 nuts.

Torque:

230 N*m (2345 kgf*cm, 170 ft.*lbf)

NOTICE:

Because the bolts have their own stoppers, do not turn the bolts. Tighten the nuts with the bolts secured.

0.135,2.74 3.313,3.521 3.177,0.781 0.135,3.594 3.313,4.313 3.177,0.719 0.823,4.208 0.823,4.052 false 0.708,3.198 0.833,2.969 0.833,2.969 1.146,2.969 false 0.833,3.198 0.938,2.969 false 2.719,3.198 2.667,2.979 2.667,2.979 2.375,2.979 false 2.604,3.208 2.542,2.99 false 0.719,3.979 0.844,3.75 0.844,3.75 1.156,3.75 false 0.833,3.979 0.938,3.75 false 2.708,3.979 2.656,3.76 2.656,3.76 2.365,3.76 false 2.604,3.979 2.542,3.76 false 0.188,2.781 0.5,2.979 0.313,0.198 10 false *A 0.177,3.635 0.49,3.833 0.313,0.198 10 false *B 1.167,2.875 1.479,3.073 0.313,0.198 10 false *a 2.219,2.875 2.531,3.073 0.313,0.198 10 false *a 2.219,3.656 2.531,3.854 0.313,0.198 10 false *a 1.177,3.646 1.49,3.844 0.313,0.198 10 false *a

*A	Top View
*B	Rear View
*a	Identification Mark

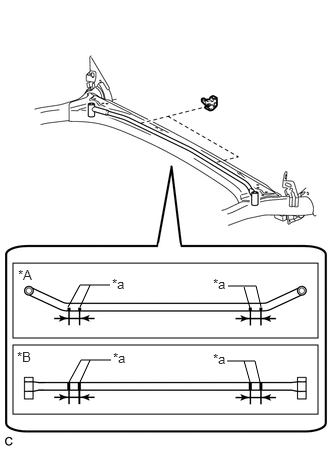

Install the 2 rear axle beam dampers to the rear stabilizer bar as shown in the illustration.

NOTICE:

Make sure to install each rear axle beam damper between the 2 identification marks on the right side and left side of the vehicle.
