BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS REAR SPEED SENSOR REMOVAL
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the LH side and RH side.
·The following procedure is for the LH side.
·If the rear speed sensor rotor needs to be replaced, replace the rear axle hub and bearing assembly.
·The rear speed sensor is a component of the rear axle hub and bearing assembly. If the rear speed sensor is malfunctioning, replace the rear axle hub and bearing assembly.
PROCEDURE
1. PRECAUTION
- NOTICE:
-
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.
-
Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION
2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
- NOTICE:
-
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
-
Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>INITIALIZATION
3.REMOVE REAR WHEEL
89516D
4.DISCONNECT SKID CONTROL SENSOR WIRE

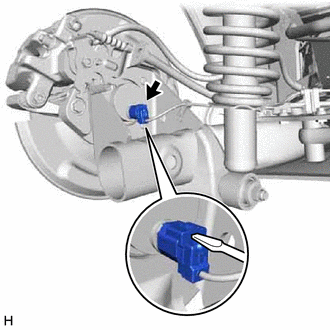

Using a screwdriver, disconnect the connector from the rear speed sensor.
- NOTICE:
-
Be careful not to damage the rear speed sensor.
58804A
5.REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY
46441A
6.LOOSEN NO. 2 WIRE ADJUSTING NUT
46430
7.SEPARATE NO. 3 PARKING BRAKE CABLE ASSEMBLY
Click hereBrake>BRAKE (REAR)>REAR BRAKE>REMOVAL
8.SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY
42431
9.REMOVE REAR DISC
Click hereBrake>BRAKE (REAR)>REAR BRAKE>REMOVAL
42450B
10.REMOVE REAR AXLE HUB AND BEARING ASSEMBLY
Remove the rear axle hub and bearing assembly.
Click hereDrivetrain>AXLE AND DIFFERENTIAL>REAR AXLE HUB>REMOVAL
- HINT:
- ·
The rear speed sensor is a component of the rear axle hub and bearing assembly. If the rear speed sensor is malfunctioning, replace the rear axle hub and bearing assembly.
·If the rear speed sensor rotor needs to be replaced, replace the rear axle hub and bearing assembly.
