AXLE AND DIFFERENTIAL  REAR AXLE HUB  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 1.REMOVE REAR WHEEL

Click hereSuspension>TIRE / WHEEL>TIRE AND WHEEL>REMOVAL

Hide 89516D 2.DISCONNECT SKID CONTROL SENSOR WIRE (w/ ABS)

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>REAR SPEED SENSOR>REMOVAL

Hide 58804A 3.REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL

Hide 46441A 4.LOOSEN NO. 2 WIRE ADJUSTING NUT

Click hereBrake>PARKING BRAKE>PARKING BRAKE LEVER>REMOVAL

Hide 46430 5.SEPARATE NO. 3 PARKING BRAKE CABLE ASSEMBLY

Click hereBrake>BRAKE (REAR)>REAR BRAKE>REMOVAL

Hide 6.SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY

Click hereDrivetrain>AXLE AND DIFFERENTIAL>REAR AXLE HUB BOLT>REPLACEMENT

Hide 42431 7.REMOVE REAR DISC

Click hereBrake>BRAKE (REAR)>REAR BRAKE>REMOVAL

Hide 42450B 8.REMOVE REAR AXLE HUB AND BEARING ASSEMBLY

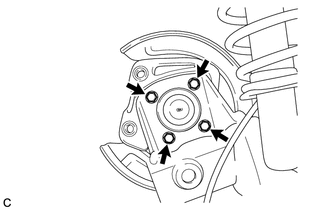

a.
C173540

Remove the 4 bolts, rear axle hub and bearing assembly and rear disc brake dust cover sub-assembly from the rear axle beam assembly.
