STEERING COLUMN  STEERING COLUMN ASSEMBLY  REMOVAL


PROCEDURE

Hide 2. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD

Hide 45130 3.REMOVE HORN BUTTON ASSEMBLY

·

w/ Airbag System: Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>STEERING PAD>REMOVAL

·

w/o Airbag System: Click hereSteering>STEERING COLUMN>STEERING WHEEL>REMOVAL


Hide 4.REMOVE STEERING WHEEL ASSEMBLY

Click hereSteering>STEERING COLUMN>STEERING WHEEL>REMOVAL

Hide 45287 5.REMOVE LOWER STEERING COLUMN COVER

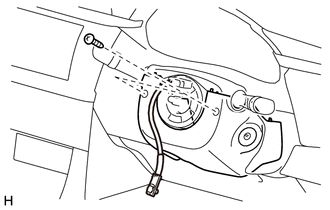

a.
C292311

Remove the 2 screws.

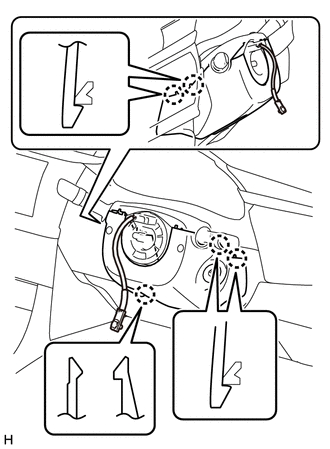

b.
C292312

Disengage the 5 claws and remove the lower steering column cover.


Hide 45286B 6.REMOVE UPPER STEERING COLUMN COVER

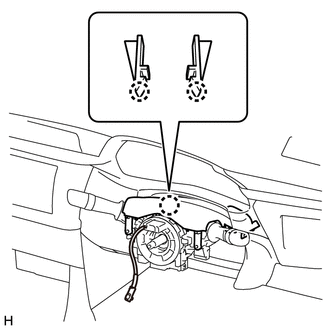

a.
C292313

Disengage the 2 claws and remove the upper steering column cover.


Hide 7.REMOVE TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY

a.

Disconnect each connector from the turn signal switch assembly with spiral cable sub-assembly.


b.

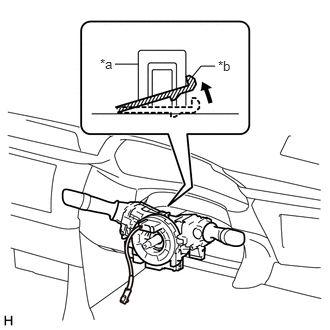

C292314C01
1.198,0.667 1.438,0.667 false 2,0.802 2.094,0.688 2.094,0.688 2.24,0.688 false 1.042,0.583 1.354,0.74 0.313,0.156 10 false *a 2.271,0.604 2.583,0.76 0.313,0.156 10 false *b
*a Clamp
*b Claw


Using pliers, expand the clamp.


c.

While holding the clamp expanded, raise the claw using a screwdriver to disengage it, and then remove the turn signal switch assembly with spiral cable sub-assembly from the steering column assembly.


Hide 45259A 8.REMOVE COLUMN HOLE COVER SILENCER SHEET

a.

Turn back the floor carpet.


b.

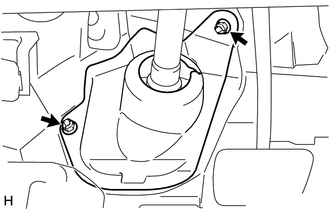

C292315

Remove the 2 clips and column hole cover silencer sheet.


Hide 45260 9.SEPARATE NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY

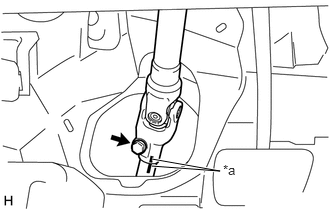

a.
C292316C01
1.583,1.729 2.292,1.781 2.292,1.781 1.583,1.656 true 2.323,1.688 2.635,1.844 0.313,0.156 10 false *a
*a Matchmark


Put matchmarks on the No. 2 steering intermediate shaft assembly and steering intermediate shaft assembly.


b.

Remove the bolt.


c.

Separate the No. 2 steering intermediate shaft assembly from the steering intermediate shaft assembly.


Hide 10.REMOVE UPPER INSTRUMENT PANEL ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>UPPER INSTRUMENT PANEL>REMOVAL

Hide 55545 11.REMOVE FUSE BOX OPENING COVER

Click hereVehicle Interior>INTERIOR PANELS / TRIM>LOWER INSTRUMENT PANEL>REMOVAL

Hide 55446A 12.REMOVE NO. 1 SWITCH HOLE BASE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>LOWER INSTRUMENT PANEL>REMOVAL

Hide 55447C 13.REMOVE NO. 2 SWITCH HOLE BASE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>LOWER INSTRUMENT PANEL>REMOVAL

Hide 55606 14.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>LOWER INSTRUMENT PANEL>REMOVAL

Hide 55045 15.REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>LOWER INSTRUMENT PANEL>REMOVAL

Hide 16.REMOVE BRAKE PEDAL SUPPORT ASSEMBLY

Click hereBrake>BRAKE SYSTEM (OTHER)>BRAKE PEDAL>REMOVAL

Hide 45260 17.REMOVE NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY

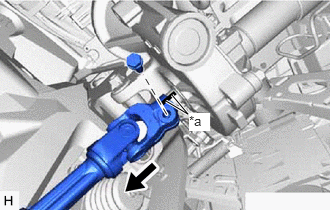

a.
C270006C02
1.729,1.052 1.958,1.188 1.958,1.188 1.792,0.99 true 1.969,1.177 2.188,1.365 0.219,0.188 10 true *a
*a Matchmark


Remove the bolt and slide the No. 2 steering intermediate shaft assembly.

NOTICE:

Do not remove the No. 2 steering intermediate shaft assembly from the steering column assembly.



b.

Put matchmarks on the No. 2 steering intermediate shaft assembly and the steering column assembly.


c.

Remove the No. 2 steering intermediate shaft assembly from the steering column assembly.


Hide 18.REMOVE STEERING COLUMN ASSEMBLY

a.

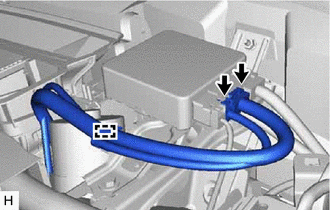

C269249

Disconnect the 2 connectors.


b.

Disengage the clamp.


c.

Disconnect each connector and disengage each wire harness clamp from the steering column assembly.

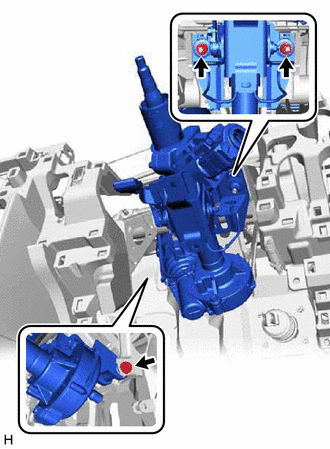

d.
C305241

Remove the bolt, 2 nuts and steering column assembly.
