SUPPLEMENTAL RESTRAINT SYSTEMS  STEERING PAD  REMOVAL


PROCEDURE

Hide 1. PRECAUTION

CAUTION:

Be sure to read Precaution thoroughly before servicing.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>PRECAUTION


NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION


Hide 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.


NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>INITIALIZATION


Hide 45186 3.REMOVE LOWER NO. 2 STEERING WHEEL COVER

a.

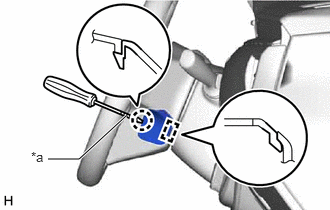

B345311C01
1.313,1.208 0.823,1.656 0.823,1.656 0.5,1.656 true 0.323,1.552 0.635,1.75 0.313,0.198 10 false *a
*a Protective Tape


Using a screwdriver with its tip wrapped with protective tape, disengage the claw and guide to remove the lower No. 2 steering wheel cover.


Hide 45130 4.REMOVE HORN BUTTON ASSEMBLY

CAUTION:

When storing the horn button assembly, keep the airbag deployment side facing upward.


a.

Check that the ignition switch is off.


b.

Check that the cable is disconnected from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.



c.

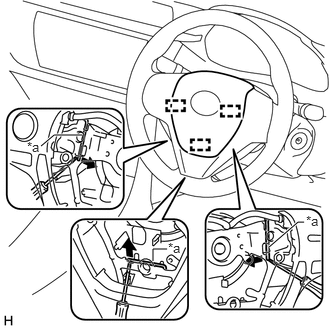

B356648C01
2.802,2.573 3.104,2.313 3.104,2.313 3.167,2.313 true 1.594,2.719 1.594,2.594 1.594,2.594 1.74,2.594 false 0.427,1.521 0.563,1.406 0.563,1.406 0.854,1.406 true 0.281,1.448 0.521,1.667 0.24,0.219 10 false *a 1.75,2.5 2.063,2.698 0.313,0.198 10 false *a 3.188,2.219 3.417,2.469 0.229,0.25 10 false *a
*a Torsion Spring


Using a T30H "TORX" screwdriver, push in the 3 torsion springs to disengage the 3 pins.

NOTICE:

Do not drop the horn button assembly.


HINT:

Insert the T30H "TORX" screwdriver from the installation hole for the lower No. 2 steering wheel cover and 2 service holes.



d.

Pull out the horn button assembly from the steering wheel assembly and support the horn button assembly with one hand.

NOTICE:

When removing the horn button assembly, do not pull the airbag wire harness.



e.

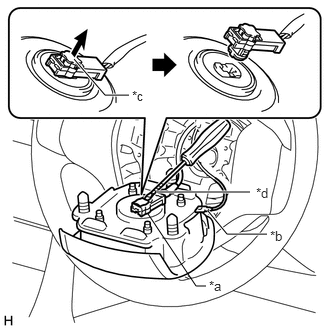

B356649C01
1.542,2.229 2.042,2.979 2.042,2.979 2.146,2.979 false 2.167,2.198 2.365,2.438 2.365,2.438 2.781,2.438 true 0.771,0.615 1.094,0.99 1.094,0.99 1.344,0.99 true 1.625,2 2.604,2 true 2.177,2.896 2.5,3.104 0.323,0.208 10 false *a 2.813,2.375 3.094,2.604 0.281,0.229 10 false *b 1.375,0.917 1.688,1.115 0.313,0.198 10 false *c 2.667,1.927 2.979,2.125 0.313,0.198 10 false *d
*a Airbag Connector
*b Horn Connector
*c Airbag Connector Lock
*d Protective Tape


Disconnect the horn connector from the horn button assembly.


f.

Using a screwdriver with its tip wrapped with protective tape, release the airbag connector lock.


g.

Disconnect the airbag connector to remove the horn button assembly.

NOTICE:

When disconnecting any airbag connector, take care not to damage the airbag wire harness.
