STEERING COLUMN  STEERING WHEEL  REMOVAL


PROCEDURE

Hide 1. PRECAUTION

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION


Hide 2.ALIGN FRONT WHEELS FACING STRAIGHT AHEAD

Hide 45186 3.REMOVE LOWER NO. 2 STEERING WHEEL COVER (w/o Airbag System)

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>STEERING PAD>REMOVAL

Hide 45130 4.REMOVE HORN BUTTON ASSEMBLY (w/o Airbag System)

a.

Disconnect the cable from the negative (-) battery terminal.

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>INITIALIZATION



b.

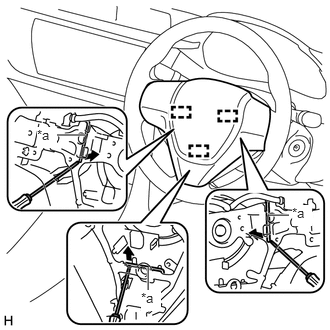

C292307C01
0.594,1.406 0.885,1.406 true 2.802,2.24 3.01,2.24 true 1.542,2.781 1.542,3.021 true 0.385,1.323 0.594,1.542 0.208,0.219 10 true *a 1.469,3.021 1.677,3.24 0.208,0.219 10 true *a 3.042,2.135 3.25,2.354 0.208,0.219 10 true *a
*a Torsion Spring


Using a T30H "TORX" screwdriver, push in the 3 torsion springs to disengage the 3 pins.

NOTICE:

Do not drop the horn button assembly.


HINT:

Insert the T30H "TORX" screwdriver from the installation hole for the lower No. 2 steering wheel cover and 2 service holes.



c.

Pull out the horn button assembly from the steering wheel assembly and support the horn button assembly with one hand.

NOTICE:

When removing the horn button assembly, do not pull the wire harness.



d.

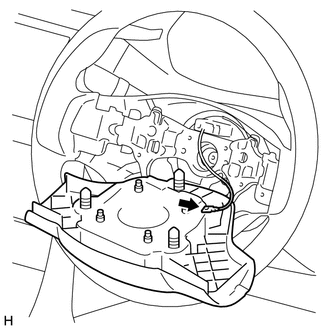

C292308

Disconnect the horn connector to remove the horn button assembly.


Hide 45130 5.REMOVE HORN BUTTON ASSEMBLY (w/ Airbag System)

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>STEERING PAD>REMOVAL

Hide 6.REMOVE STEERING WHEEL ASSEMBLY

a.

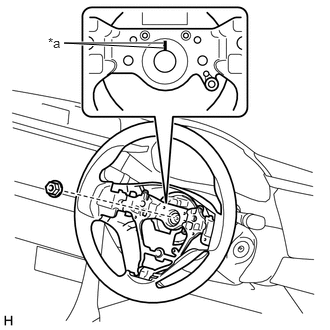

C292309C01
1.708,0.5 0.667,0.448 0.667,0.448 1.708,0.448 true 0.5,0.365 0.813,0.521 0.313,0.156 10 false *a
*a Matchmark


Remove the steering wheel assembly set nut.


b.

Put matchmarks on the steering wheel assembly and steering main shaft.


c.

Disconnect each connector from the spiral cable sub-assembly.


d.

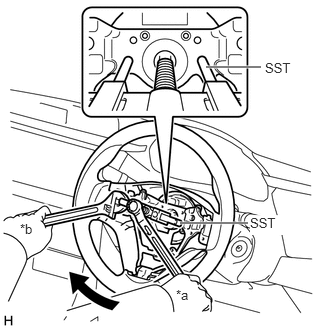

C292310C01
2.146,0.698 2.719,0.698 true 1.875,2.323 2.583,2.323 true 1.833,2.99 2.146,3.146 0.313,0.156 10 false *a 0.208,2.302 0.521,2.458 0.313,0.156 10 false *b 2.604,2.24 3.01,2.448 0.406,0.208 10 true SST 2.76,0.625 3.167,0.833 0.406,0.208 10 true SST
*a Turn
*b Hold


Using SST, remove the steering wheel assembly.

SST
09950-50013  (09951-05010, 09952-05010, 09953-05020, 09954-05070)

NOTICE:

Apply a small amount of grease to the threads and tip of SST (09953-05020) before use.



Hide 84250A 7.REMOVE STEERING PAD SWITCH ASSEMBLY (w/ Steering Pad Switch)

Click hereSteering>STEERING COLUMN>STEERING PAD SWITCH>REMOVAL

Hide 84632 8.REMOVE CRUISE CONTROL MAIN SWITCH (w/ Cruise Control System)

Click hereEngine / Hybrid System>CRUISE CONTROL>CRUISE CONTROL MAIN SWITCH>REMOVAL

Hide 84633 9.REMOVE CRUISE CONTROL SWITCH WIRE (w/ Cruise Control System)

a.

Remove the cruise control switch wire.


Hide 84610F 10.REMOVE SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY) (w/ Shift Paddle Switch)

a.

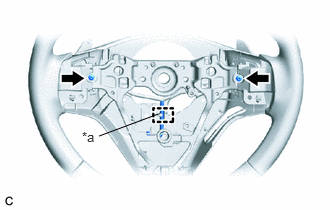

C278729C01
1.031,1.417 1.646,1.188 false 0.854,1.344 1.042,1.521 0.188,0.177 10 *a
*a Guide


Remove the 2 screws from the steering wheel assembly.


b.

Disengage the guide from the steering wheel assembly.


c.

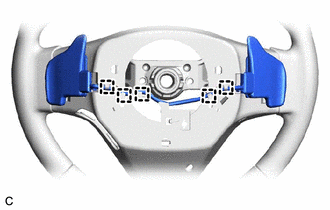

C270617

Disengage the 5 guides to remove the 2 shift paddle switches (transmission shift switch assemblies) with No. 1 switch wire from the steering wheel assembly.
