STEERING COLUMN  STEERING PAD SWITCH  REMOVAL


PROCEDURE

Hide 45130 1.REMOVE HORN BUTTON ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>STEERING PAD>REMOVAL

Hide 84250A 2.REMOVE STEERING PAD SWITCH ASSEMBLY

a.

Disconnect the steering pad switch connector from the spiral cable sub-assembly.


b.

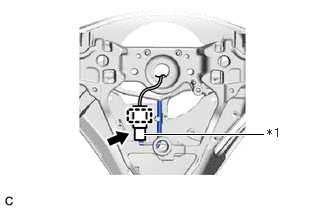

C278689C01
1.5,1.396 2.74,1.396 true 2.781,1.313 3.094,1.469 0.313,0.156 10 *1
*1 No. 1 Switch Wire


Disengage the steering pad switch connector clamp from the lower steering wheel boss cover.


c.

w/ Shift Paddle Switch:

i.

Disconnect the No. 1 switch wire.



d.

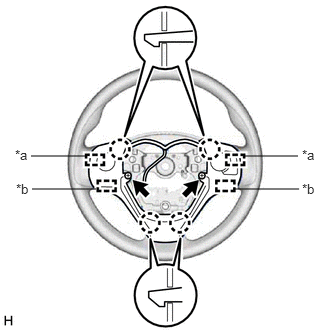

C353533C01
2.542,1.625 3.104,1.625 false 2.448,1.969 3.115,1.969 false 0.323,1.625 0.885,1.625 false 0.333,1.969 1,1.969 false 3.146,1.531 3.344,1.708 0.198,0.177 10 false *a 3.146,1.885 3.323,2.052 0.177,0.167 10 false *b 0.156,1.531 0.354,1.708 0.198,0.177 10 false *a 0.167,1.885 0.344,2.052 0.177,0.167 10 false *b
*a Pin
*b Guide


Remove the 2 screws.


e.

Disengage the 4 claws, 2 pins and 2 guides to remove the steering pad switch assembly from the steering wheel assembly.
