BRAKE SYSTEM (OTHER)  BRAKE PEDAL  REMOVAL


PROCEDURE

Hide 83100 1.REMOVE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL

Hide 55606 2.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>LOWER INSTRUMENT PANEL>REMOVAL

Hide 84340 3.REMOVE STOP LIGHT SWITCH ASSEMBLY

Click hereVehicle Exterior>LIGHTING (EXT)>STOP LIGHT SWITCH>REMOVAL

Hide 84345 4.REMOVE STOP LIGHT SWITCH MOUNTING ADJUSTER

Hide 47101A 5.REMOVE BRAKE PEDAL RETURN SPRING

a.

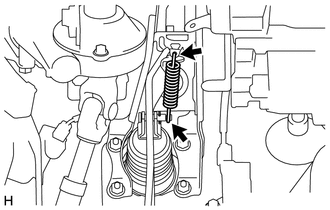

C292602

Remove the brake pedal return spring from the brake pedal support assembly and push rod pin.


Hide 47264A 6.REMOVE PUSH ROD PIN

a.

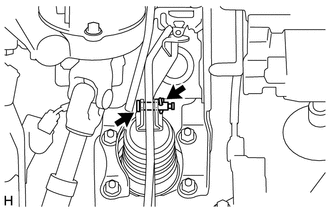

C292603

Remove the clip and push rod pin.


Hide 7.REMOVE BRAKE PEDAL SUPPORT ASSEMBLY

a.

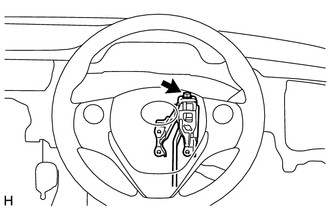

C292605

Remove the bolt and separate the brake pedal support assembly from the instrument panel reinforcement assembly.


b.

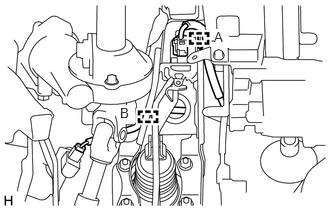

C292604N01
2.229,0.302 2.385,0.5 0.156,0.198 10 true A 1.25,1.094 1.406,1.292 0.156,0.198 10 true B

Disengage the clamp (A) and separate the wire harness from the brake pedal support assembly.


c.

for Manual Transaxle:

i.

Disengage the clamp (B) and separate the wire harness from the brake pedal support assembly.



d.

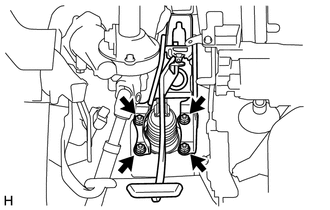

C292606

Remove the 4 nuts and brake pedal support assembly.


e.

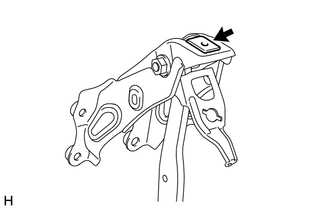

C292608

Remove the nut from the brake pedal support assembly.
