INTERIOR PANELS / TRIM  LOWER INSTRUMENT PANEL  REMOVAL


PROCEDURE

Hide 2.REMOVE UPPER INSTRUMENT PANEL ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>UPPER INSTRUMENT PANEL>REMOVAL

Hide 67913 4.REMOVE FRONT DOOR SCUFF PLATE RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL

Hide 62111C 5.REMOVE COWL SIDE TRIM BOARD RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL

Hide 55545 6.REMOVE FUSE BOX OPENING COVER

a.

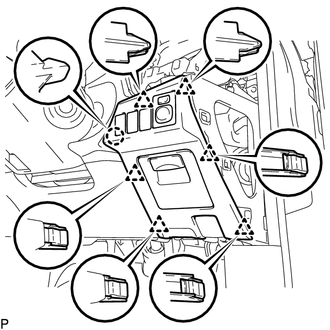

B373313

Disengage the claw and 6 clips.


b.

Disconnect each connector and remove the fuse box opening cover.


Hide 55446A 7.REMOVE NO. 1 SWITCH HOLE BASE

a.

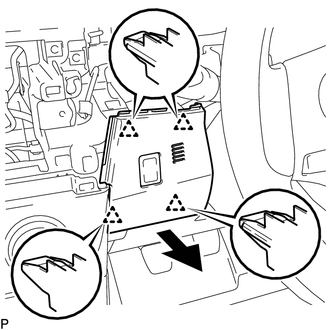

B358287

Disengage the 4 clips as shown in the illustration.


b.

Disconnect the connector and remove the No. 1 switch hole base.


Hide 55447C 8.REMOVE NO. 2 SWITCH HOLE BASE

a.

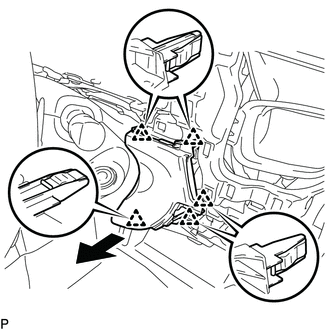

B358283

Disengage the 5 clips and remove the No. 2 switch hole base as shown in the illustration.


Hide 55606 9.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

a.
B358290

Remove the 2 screws <G>.


b.
B358291

Disengage the claw and guide, and remove the No. 1 instrument panel under cover sub-assembly.


Hide 55045 10.REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

a.
B358292

Disengage the 7 clips and remove the lower instrument panel finish panel sub-assembly.


Hide 86211 11.REMOVE NO. 1 RADIO BRACKET

a.

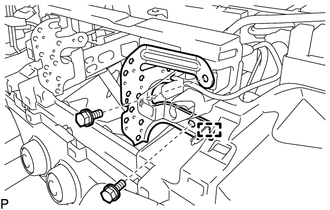

B373314

Remove the 2 bolts <C>.


b.

Disengage the guide to remove the No. 1 radio bracket.


Hide 86212 12.REMOVE NO. 2 RADIO BRACKET

a.

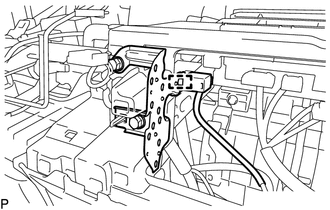

B373315

Disengage the clamp.


b.

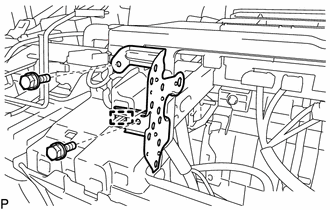

B373316

Remove the 2 bolts <C>.


c.

Disengage the guide to remove the No. 2 radio bracket.


Hide 13.REMOVE AIR CONDITIONING PANEL ASSEMBLY (for Manual Air Conditioning System)

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING PANEL(for Manual Air Conditioning System)>REMOVAL

Hide 55900 14.REMOVE AIR CONDITIONING CONTROL ASSEMBLY (for Automatic Air Conditioning System)

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING PANEL(for Automatic Air Conditioning System)>REMOVAL

Hide 55434B 15.REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

a.
B358293

Disengage the 2 clips and 3 guides as shown in the illustration.


b.

Disengage the clamp.


c.

Disconnect each connector and remove the lower center instrument panel finish panel.


Hide 67914 16.REMOVE FRONT DOOR SCUFF PLATE LH

HINT:

Use the same procedure as for the RH side.


Hide 62112 17.REMOVE COWL SIDE TRIM BOARD LH

HINT:

Use the same procedure as for the RH side.


Hide 55550 18.REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

a.
B358296C01
0.333,0.833 0.583,0.583 true 1.333,3.25 1.167,3 true 1.344,3.177 1.656,3.333 0.313,0.156 10 true *1 0.167,0.75 0.479,0.906 0.313,0.156 10 true *a 2.031,1.281 2.26,1.438 0.229,0.156 10 true A 0.615,1.26 0.781,1.427 0.167,0.167 10 true B
*1 Glove Compartment Door Stopper Sub-assembly
*a Stopper


Disengage the claw to disconnect the glove compartment door stopper sub-assembly.


b.

Slightly bend the stoppers (A) and (B) in the directions indicated by the arrows in the illustration and open the glove compartment door assembly until the stoppers are disengaged.


c.
B358297C01
1.833,0.25 2.146,0.406 0.313,0.156 10 false *a 2.417,1.917 2.729,2.073 0.313,0.156 10 false *b 2.667,1.01 2.979,1.167 0.313,0.156 10 false 53°
*a Closed
*b Open Approximately 53°


Open the glove compartment door assembly to approximately 53° from its closed position. Pull it horizontally in the direction indicated by the arrow to disengage the 2 hinges and remove the glove compartment door assembly.

NOTICE:

Pulling the glove compartment door assembly upward to remove it causes the hinges to deform. Be sure to pull out the glove compartment door assembly horizontally.



Hide 55054 19.REMOVE GLOVE COMPARTMENT DOOR STOPPER SUB-ASSEMBLY

a.
B358298

Disengage the claw to remove the glove compartment door stopper sub-assembly.


Hide 53601 20.DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

a.
B358299

Disengage the claw and 2 guides, and disconnect the hood lock control lever sub-assembly.


Hide 55303B 21.REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY

a.

Disengage each clamp.

B373506C01
0.458,1.104 0.906,0.656 true 5.698,3.417 6.323,3.198 true 0.948,0.552 1.323,0.792 0.375,0.24 12 false *A 5.49,3.344 5.802,3.542 0.313,0.198 10 false *a
*A w/ Rain Sensor - -
*a DLC3 - -



b.

w/ Rain Sensor:

i.

Disconnect each connector.



c.

Disengage the 2 claws and disconnect the DLC3.


d.

Remove the 2 bolts <A> or <B>, 8 screws <D>, screw <E> or <F> and lower instrument panel sub-assembly.

B358301C01
6.615,1.531 6.927,1.688 0.313,0.156 10 false *a 6.771,0.792 7.083,0.948 0.313,0.156 10 false *b 3.458,2.281 3.771,2.438 0.313,0.156 10 false *c 6.208,0.906 6.521,1.063 0.313,0.156 10 false *b 1.76,2.625 2.073,2.781 0.313,0.156 10 false *a 6.281,1.792 6.594,1.948 0.313,0.156 10 false *b 5.125,2.031 5.438,2.188 0.313,0.156 10 true *b 4.615,2.219 4.927,2.375 0.313,0.156 10 true *b 2.104,2.344 2.417,2.5 0.313,0.156 10 true *b 2.677,2.146 2.99,2.302 0.313,0.156 10 true *b 3.781,1.813 4.094,1.969 0.313,0.156 10 true *b
*a Bolt <A> or <B> *b Screw <D>
*c Screw <E> or <F> - -
