INTERIOR PANELS / TRIM  FRONT CONSOLE BOX  REMOVAL


PROCEDURE

Hide 58817A 1.REMOVE FRONT NO. 2 CONSOLE BOX INSERT

a.
B358306C01
1.365,2.323 1.542,1.833 true 2.333,2.188 2.229,1.74 true 0.344,1.5 0.656,1.656 0.313,0.156 10 false *a 2.938,0.302 3.25,0.458 0.313,0.156 10 false *b 1.323,2.354 1.635,2.51 0.313,0.156 10 false 1 2.302,2.219 2.615,2.375 0.313,0.156 10 false 2
*a Guide <A>
*b Guide <B>


Pull the front No. 2 console box insert in the direction indicated by the arrow (1) as shown in the illustration to disengage the claw, 3 clips and guide <A>.


b.

Pull the front No. 2 console box insert in the direction indicated by the arrow (2) as shown in the illustration to disengage the guide <B> to remove the front No. 2 console box insert.


Hide 58816B 2.REMOVE CONSOLE BOX INSERT

a.
B358308C01
1.25,2.146 1.49,1.781 true 2.104,2.438 2,1.802 true 3.021,1.521 3.333,1.677 0.313,0.156 10 false *a 0.365,0.604 0.677,0.76 0.313,0.156 10 false *b 2.073,2.448 2.385,2.604 0.313,0.156 10 false 1 1.125,2.156 1.438,2.313 0.313,0.156 10 false 2
*a Guide <A>
*b Guide <B>


Pull the console box insert in the direction indicated by the arrow (1) as shown in the illustration to disengage the claw, 3 clips and guide <A>.


b.

Pull the console box insert in the direction indicated by the arrow (2) as shown in the illustration to disengage the guide <B> to remove the console box insert.


Hide 33504F 3.REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)

a.

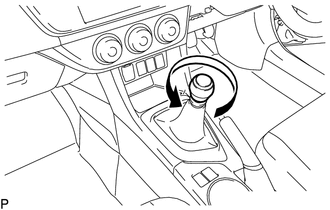

B373318

Turn the shift lever knob sub-assembly counterclockwise and remove the shift lever knob sub-assembly.


Hide 58843 4.REMOVE SHIFTING HOLE BEZEL (for Manual Transaxle)

a.

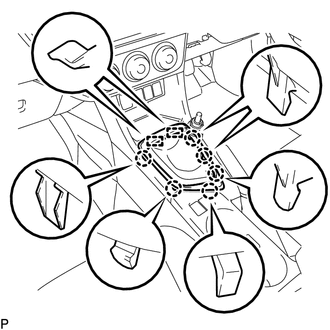

B373319
1.781,2.083 1.938,2.281 0.156,0.198 10 true 1 2.302,2.031 2.458,2.229 0.156,0.198 10 true 2 2.406,1.688 2.563,1.885 0.156,0.198 10 false 3 2.292,1.51 2.448,1.708 0.156,0.198 10 false 4 2.198,1.302 2.354,1.5 0.156,0.198 10 false 5 1.406,1.781 1.563,1.979 0.156,0.198 10 true 6

Disengage the 6 claws in the order shown in the illustration.


b.

Disengage the 2 guides and remove the shifting hole bezel.


Hide 58843 5.REMOVE SHIFTING HOLE BEZEL (for Automatic Transaxle and CVT)

a.

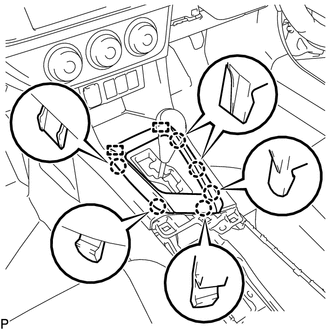

B373320
1.604,2.271 1.76,2.469 0.156,0.198 10 true 1 2.229,2.271 2.385,2.469 0.156,0.198 10 true 2 2.375,2.021 2.531,2.219 0.156,0.198 10 true 3 2.188,1.635 2.344,1.833 0.156,0.198 10 true 4 2,1.354 2.156,1.552 0.156,0.198 10 false 5 0.948,1.74 1.104,1.938 0.156,0.198 10 true 6

Disengage the 6 claws in the order shown in the illustration.


b.

Disengage the 2 guides and remove the shifting hole bezel.


Hide 58804A 6.REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

a.
B358311

Disengage the 4 claws and 5 clips.


b.

Disconnect each connector and remove the upper console panel sub-assembly.


Hide 58821C 7.REMOVE UPPER CONSOLE PANEL

a.
B358312

Disengage the clamp.


b.

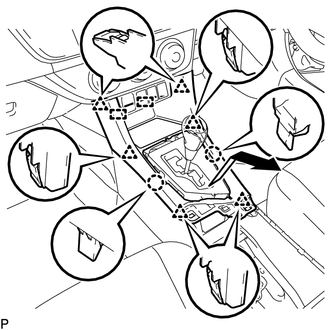

B373324

Disengage the 2 claws, 6 clips and 2 guides and remove the upper console panel as shown in the illustration.


Hide 58815C 8.REMOVE CONSOLE BOX CARPET

a.
B352268

Remove the console box carpet.


Hide 58910C 9.REMOVE REAR CONSOLE BOX ASSEMBLY

a.
B373321

for Manual Transaxle:

i.

Remove the 2 bolts and 2 screws.



b.

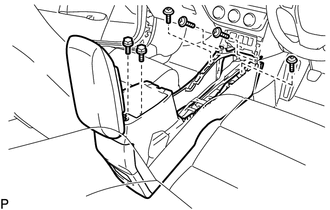

B373322

for Automatic Transaxle and CVT:

i.

Remove the 2 bolts and 4 screws.



c.

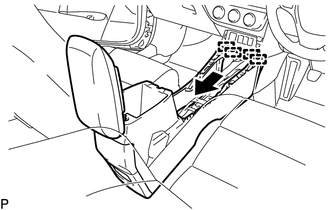

B373323

Disengage the 4 guides as shown in the illustration and remove the rear console box assembly.
