33504F 1.REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)

58843 2.REMOVE SHIFTING HOLE BEZEL (for Manual Transaxle)

58843 3.REMOVE SHIFTING HOLE BEZEL (for Automatic Transaxle and CVT)

58804A 4.REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

58821C 5.REMOVE UPPER CONSOLE PANEL

55012A 6.REMOVE NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

55650 7.REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY

55011A 8.REMOVE NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

55405B 9.REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

55410C 10.REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

55446A 11.REMOVE NO. 1 SWITCH HOLE BASE

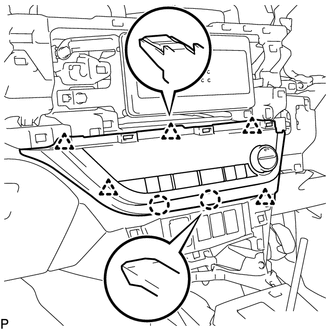

55900 12.REMOVE AIR CONDITIONING CONTROL ASSEMBLY

a.

Disengage the 2 claws and 5 clips.

b.

Disconnect the connector to remove the air conditioning control assembly.
