DOOR / HATCH  LUGGAGE COMPARTMENT DOOR  DISASSEMBLY


PROCEDURE

Hide 64719A 1.REMOVE LUGGAGE COMPARTMENT DOOR COVER

a.

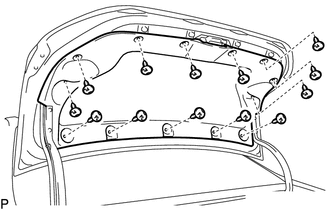

B358512

Remove the 13 clips and luggage compartment door cover.


Hide 64610 2.REMOVE LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY

Click hereVehicle Interior>DOOR LOCK>LUGGAGE COMPARTMENT DOOR LOCK>REMOVAL

Hide 3.REMOVE LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY (w/ Lock Cylinder)

a.
B358515

Remove the 2 nuts and luggage compartment door lock cylinder assembly.


Hide 81590A 4.REMOVE REAR LIGHT ASSEMBLY LH

Click hereVehicle Exterior>LIGHTING (EXT)>REAR LIGHT ASSEMBLY>REMOVAL

Hide 81580D 5.REMOVE REAR LIGHT ASSEMBLY RH

HINT:

Use the same procedure as for the LH side.


Hide 76801A 6.REMOVE LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY (w/o Lock Cylinder)

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH>REMOVAL

Hide 76801A 7.REMOVE LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY (w/ Lock Cylinder)

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH>REMOVAL

Hide 84945 8.REMOVE LUGGAGE ELECTRICAL KEY SWITCH (w/ Smart Entry and Start System)

Click hereVehicle Exterior>DOOR / HATCH>LUGGAGE COMPARTMENT DOOR OPENER OUTER SWITCH>REMOVAL

Hide 64459 9.REMOVE LUGGAGE COMPARTMENT DOOR CUSHION

a.

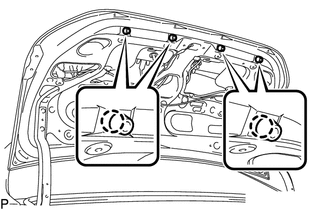

B352591

Disengage the 4 claws to remove the 4 luggage compartment door cushions.


Hide 81270 10.REMOVE LICENSE PLATE LIGHT ASSEMBLY (for LH Side)

Click hereVehicle Exterior>LIGHTING (EXT)>LICENSE PLATE LIGHT ASSEMBLY>REMOVAL

Hide 81270 11.REMOVE LICENSE PLATE LIGHT ASSEMBLY (for RH Side)

HINT:

Use the same procedure as for the LH side.
