w/ Lock Cylinder:

i.

1.719,0.427 2.188,0.427 false 1.719,2.906 2.188,2.906 false 1.552,2.802 1.865,2.958 0.313,0.156 10 false *a 1.563,0.344 1.875,0.5 0.313,0.156 10 false *a

*a	Luggage Compartment Door Open Rod

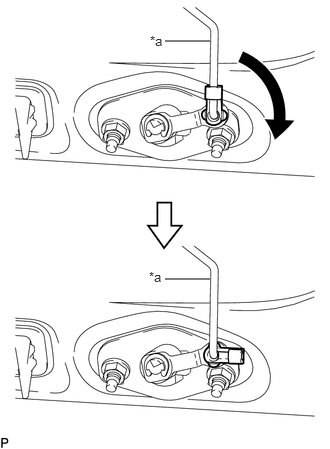

Disconnect the luggage compartment door open rod as shown in the illustration.

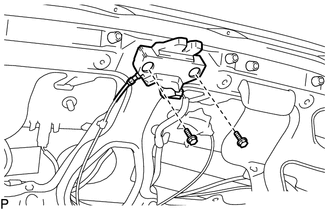

Remove the 2 bolts and disconnect the luggage compartment door lock assembly.

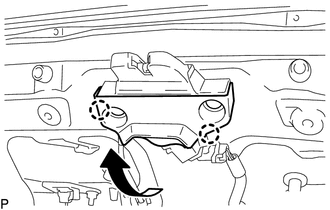

Disengage the 2 claws as shown in the illustration.

Disconnect the luggage door lock control cable sub-assembly to remove the luggage compartment door lock assembly.
