LIGHTING (EXT)  REAR LIGHT ASSEMBLY  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 64719A 1.REMOVE LUGGAGE COMPARTMENT DOOR COVER

Click hereVehicle Exterior>DOOR / HATCH>LUGGAGE COMPARTMENT DOOR>DISASSEMBLY

Hide 81590A 2.REMOVE REAR LIGHT ASSEMBLY

a.

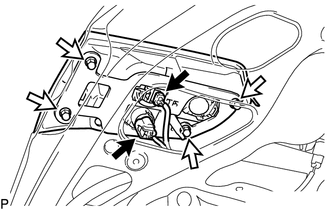

E282391

Disconnect each connector.


b.

Remove the 4 nuts and rear light assembly.
