LIGHTING (EXT)  LICENSE PLATE LIGHT ASSEMBLY  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

·

The license plate light bulb can be replaced by removing only the license plate light lens. It is not necessary to remove the license plate light assembly.



PROCEDURE

Hide 76801A 1.REMOVE LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH>REMOVAL

Hide 81270 2.REMOVE LICENSE PLATE LIGHT ASSEMBLY

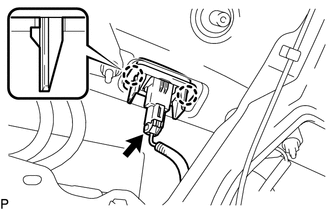

a.
E278569

Disconnect the connector.


b.

Disengage the 2 claws to remove the license plate light assembly.


Hide 81274B 3.REMOVE LICENSE PLATE LIGHT PACKING

a.
E274784

Remove the license plate light packing.

NOTICE:

Do not reuse the removed license plate light packing. Be sure to install a new license plate light packing to prevent water ingress.



Hide 81271 4.REMOVE LICENSE PLATE LIGHT LENS

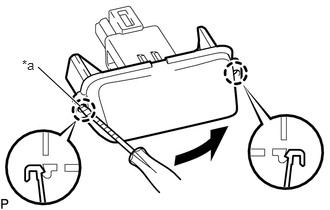

a.
E274785C01
0.396,0.698 0.833,1.104 true 0.229,0.594 0.542,0.792 0.313,0.198 10 false *a
*a Insert into the hole
V100155

Protective Tape


Insert a screwdriver wrapped with protective tape into the license plate light lens hole, tilt it as shown in the illustration and disengage the 2 claws to remove the license plate light lens.


Hide 81270B 5.REMOVE LICENSE PLATE LIGHT BULB

a.
E274786

Remove the license plate light bulb.
