BRAKE SYSTEM (OTHER)  BRAKE BOOSTER  INSTALLATION


PROCEDURE

Hide 44785 1.INSTALL BRAKE BOOSTER GASKET

a.

Install a new brake booster gasket to the brake booster assembly.


Hide 44610 2.INSTALL BRAKE BOOSTER ASSEMBLY

a.

Temporarily install the brake booster assembly to the vehicle body.

NOTICE:

Do not apply excessive force to the brake lines.



b.

Temporarily install the lock nut and brake master cylinder push rod clevis to the brake booster assembly.

NOTICE:

Fully tighten the lock nut when adjusting the brake pedal height.



c.

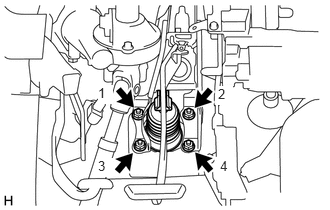

C292607N01
1.021,0.885 1.177,1.083 0.156,0.198 10 true 1 2.271,0.896 2.427,1.094 0.156,0.198 10 true 2 1.021,1.646 1.177,1.844 0.156,0.198 10 true 3 2.292,1.646 2.448,1.844 0.156,0.198 10 true 4

Install the 4 nuts to secure the brake booster assembly.

Torque:
12.7 N*m (130 kgf*cm, 9 ft.*lbf)

NOTICE:

Tighten the 4 nuts in the order shown in the illustration.



Hide 47264A 3.INSTALL PUSH ROD PIN

Hide 47101A 4.INSTALL BRAKE PEDAL RETURN SPRING

Hide 5.INSTALL ENGINE ROOM MAIN WIRE

a.

Engage the 2 clamps to install the engine room main wire.


b.

Install the bolt.

Torque:
8.4 N*m (86 kgf*cm, 74 in.*lbf)


Hide 44773F 6.INSTALL UNION TO CHECK VALVE HOSE

a.

Install the union to check valve hose with the 2 nuts.

Torque:
5.4 N*m (55 kgf*cm, 48 in.*lbf)


b.

Connect the union to check valve hose to the brake booster assembly, and slide the clip to secure it.


Hide 7.INSTALL BRAKE LINE (w/o ABS)

a.

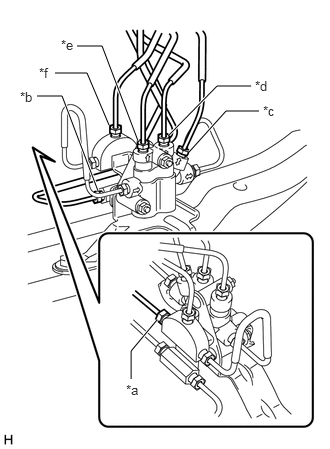

C292644C01
1.969,1.583 2.354,1.156 2.354,1.156 2.698,1.156 true 1.365,3.948 1.365,3.656 1.365,3.656 1.635,3.333 true 0.385,1 0.646,1 0.646,1 1.021,1.99 true 1.76,1.406 2.26,0.896 2.26,0.896 2.615,0.896 true 0.802,0.479 1.063,0.479 1.063,0.479 1.438,1.469 true 0.573,0.76 0.906,0.76 0.906,0.76 1.135,1.302 true 1.313,3.979 1.625,4.135 0.313,0.156 10 false *a 0.208,0.927 0.521,1.083 0.313,0.156 10 false *b 2.74,1.073 3.052,1.229 0.313,0.156 10 false *c 2.656,0.813 2.969,0.969 0.313,0.156 10 false *d 0.635,0.385 0.948,0.542 0.313,0.156 10 false *e 0.406,0.677 0.719,0.833 0.313,0.156 10 false *f
*a From 1st Chamber of Master Cylinder Sub-assembly
*b From 2nd Chamber of Master Cylinder Sub-assembly
*c To Front Wheel Cylinder Assembly LH
*d To Rear Wheel Cylinder Assembly RH
*e To Rear Wheel Cylinder Assembly LH
*f To Front Wheel Cylinder Assembly RH


Temporarily tighten the 6 brake lines to the correct positions on the proportioning valve assembly and No. 2 brake tube way as shown in the illustration.


b.

Using a union nut wrench, fully tighten each brake line.

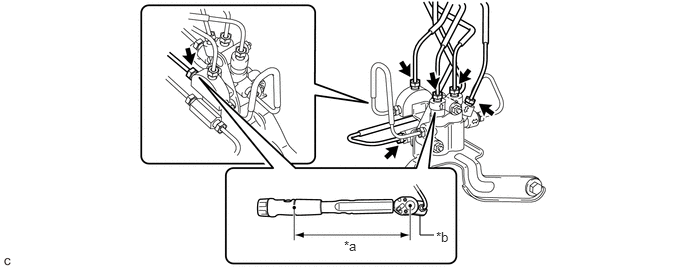

C362323C01
4.521,2.448 4.375,2.448 4.375,2.448 4.375,2.24 false 3.583,2.479 3.896,2.635 0.313,0.156 10 false *a 4.542,2.385 4.854,2.542 0.313,0.156 10 false *b
*a Torque Wrench Fulcrum Length *b Union Nut Wrench


Torque:
Specified tightening torque : 15.2 N*m (155 kgf*cm, 11 ft.*lbf)

NOTICE:
·

Do not kink or damage the brake lines.

·

Do not allow the brake lines to twist or interfere with other parts or the vehicle body during tightening.

·

Do not allow any foreign matter such as dirt or dust to enter the brake lines from the connecting parts.



HINT:
·

Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION

·

When using a union nut wrench (fulcrum length of 22 mm (0.866 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)):

13.38 N*m (136 kgf*cm, 10 ft.*lbf)




c.

Install the brake lines with the 2 bolts.

Torque:
5.4 N*m (55 kgf*cm, 48 in.*lbf)


Hide 8.INSTALL BRAKE LINE (w/ ABS)

a.

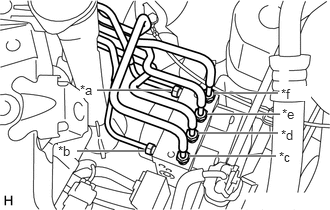

C290739C02
2.229,0.969 2.896,0.969 true 2.156,1.188 2.917,1.188 true 2.063,1.385 2.896,1.385 true 1.969,1.625 2.875,1.625 true 0.802,1.573 1.51,1.573 true 1.01,0.938 1.781,0.938 true 0.604,1.49 0.802,1.646 0.198,0.156 10 true *b 0.833,0.854 1,1.021 0.167,0.167 10 true *a 2.906,1.552 3.219,1.708 0.313,0.156 10 false *c 2.927,1.323 3.24,1.479 0.313,0.156 10 false *d 2.938,1.104 3.25,1.26 0.313,0.156 10 false *e 2.927,0.896 3.24,1.052 0.313,0.156 10 true *f
*a From 1st Chamber of Master Cylinder Sub-assembly
*b From 2nd Chamber of Master Cylinder Sub-assembly
*c To Front Wheel Cylinder Assembly LH
*d To Rear Wheel Cylinder Assembly RH
*e To Rear Wheel Cylinder Assembly LH
*f To Front Wheel Cylinder Assembly RH


Temporarily tighten the 6 brake lines to the correct positions on the brake actuator assembly as shown in the illustration.


b.

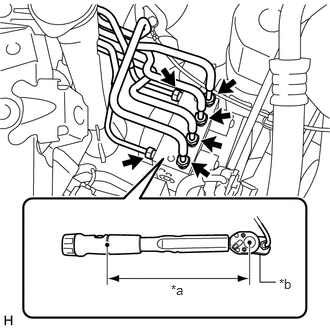

C352584C02
2.875,2.938 2.708,2.938 2.708,2.938 2.708,2.646 false 1.781,2.938 2.094,3.094 0.313,0.156 10 false *a 2.906,2.875 3.219,3.031 0.313,0.156 10 false *b
*a Torque Wrench Fulcrum Length
*b Union Nut Wrench


Using a union nut wrench, fully tighten each brake line.

Torque:
Specified tightening torque : 15.2 N*m (155 kgf*cm, 11 ft.*lbf)

NOTICE:
·

Do not kink or damage the brake lines.

·

Do not allow the brake lines to twist or interfere with other parts or the vehicle body during tightening.

·

Do not allow any foreign matter such as dirt or dust to enter the brake lines from the connecting parts.



HINT:
·

Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION

·

When using a union nut wrench (fulcrum length of 22 mm (0.866 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)):

13.38 N*m (136 kgf*cm, 10 ft.*lbf)




c.

Install the brake lines with the 2 bolts.

Torque:
5.4 N*m (55 kgf*cm, 48 in.*lbf)


Hide 9.INSTALL BRAKE LINE (w/ VSC)

a.

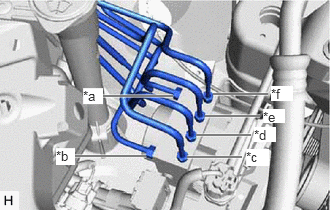

C289479C02
2.219,0.979 2.792,0.979 true 2.135,1.208 2.708,1.208 true 2.042,1.406 2.615,1.406 true 1.948,1.635 2.521,1.635 true 1.063,1 1.802,1 true 0.781,1.625 1.521,1.625 true 0.583,1.542 0.781,1.719 0.198,0.177 10 true *b 0.865,0.917 1.073,1.083 0.208,0.167 10 true *a 2.563,1.552 2.802,1.729 0.24,0.177 10 true *c 2.646,1.323 2.875,1.479 0.229,0.156 10 true *d 2.74,1.135 2.969,1.281 0.229,0.146 10 true *e 2.823,0.896 3.052,1.052 0.229,0.156 10 true *f
*a From 1st Chamber of Master Cylinder Sub-assembly
*b From 2nd Chamber of Master Cylinder Sub-assembly
*c To Front Wheel Cylinder Assembly LH
*d To Rear Wheel Cylinder Assembly RH
*e To Rear Wheel Cylinder Assembly LH
*f To Front Wheel Cylinder Assembly RH


Temporarily tighten the 6 brake lines to the correct positions on the brake actuator assembly as shown in the illustration.


b.

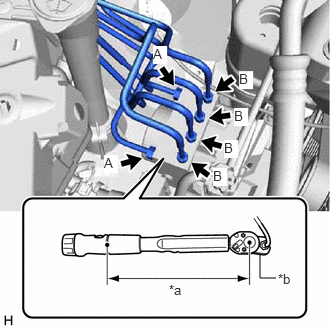

C334684C02
2.875,2.896 2.708,2.896 2.708,2.896 2.708,2.646 false 1.76,2.938 2.073,3.094 0.313,0.156 10 false *a 2.896,2.823 3.208,2.979 0.313,0.156 10 false *b 1.083,1.615 1.229,1.802 0.146,0.188 10 true A 1.594,0.479 1.74,0.667 0.146,0.188 10 true A 2.49,0.74 2.635,0.927 0.146,0.188 10 true B 2.438,1.125 2.583,1.313 0.146,0.188 10 true B 2.333,1.458 2.479,1.646 0.146,0.188 10 true B 2.219,1.75 2.365,1.938 0.146,0.188 10 true B
*a Torque Wrench Fulcrum Length
*b Union Nut Wrench


Using a union nut wrench, fully tighten each brake line.

Torque:
Specified tightening torque (A) : 19.6 N*m (200 kgf*cm, 14 ft.*lbf)
Specified tightening torque (B) : 15.2 N*m (155 kgf*cm, 11 ft.*lbf)

NOTICE:
·

Do not kink or damage the brake lines.

·

Do not allow the brake lines to twist or interfere with other parts or the vehicle body during tightening.

·

Do not allow any foreign matter such as dirt or dust to enter the brake lines from the connecting parts.



HINT:
·

Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION

·

When using a union nut wrench (fulcrum length of 20 mm (0.787 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)):

(A): 17.45 N*m (178 kgf*cm, 13 ft.*lbf)

·

When using a union nut wrench (fulcrum length of 22 mm (0.866 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)):

(B): 13.38 N*m (136 kgf*cm, 10 ft.*lbf)




c.

Install the brake lines with the 2 bolts.

Torque:
5.4 N*m (55 kgf*cm, 48 in.*lbf)


Hide 47314 10.INSTALL FRONT NO. 4 BRAKE TUBE

a.

Engage the grommet to install the front No. 4 brake tube.


b.

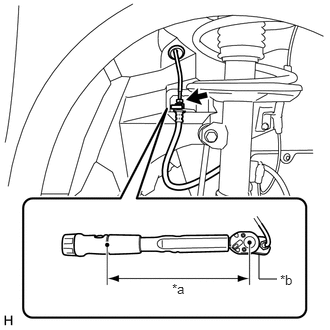

C352585C01
2.885,2.906 2.698,2.906 2.698,2.906 2.698,2.646 false 1.792,2.927 2.104,3.083 0.313,0.156 10 false *a 2.917,2.833 3.229,2.99 0.313,0.156 10 false *b
*a Torque Wrench Fulcrum Length
*b Union Nut Wrench


Using a union nut wrench, connect the front No. 4 brake tube to the front flexible hose.

Torque:
Specified tightening torque : 15.2 N*m (155 kgf*cm, 11 ft.*lbf)

NOTICE:
·

Do not allow the brake line to twist or interfere with other parts or the vehicle body during tightening.

·

Do not allow any foreign matter such as dirt or dust to enter the brake line from the connecting parts.



HINT:
·

Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION

·

When using a union nut wrench (fulcrum length of 22 mm (0.866 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)):

13.38 N*m (136 kgf*cm, 10 ft.*lbf)




Hide 11101J 11.INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for 1ZR-FE, 2ZR-FE)

a.

Install the camshaft timing oil control valve assembly (for Exhaust Side).

for 1ZR-FE: Click hereEngine / Hybrid System>1ZR-FE ENGINE CONTROL>CAMSHAFT OIL CONTROL VALVE>INSTALLATION

for 2ZR-FE: Click hereEngine / Hybrid System>2ZR-FE ENGINE CONTROL>CAMSHAFT OIL CONTROL VALVE>INSTALLATION


Hide 88710 12.INSTALL AIR CONDITIONER TUBE ASSEMBLY (for 1ZR-FE, 2ZR-FE)

Hide 88707 13.INSTALL SUCTION PIPE SUB-ASSEMBLY (for 1ZR-FE, 2ZR-FE)

Hide 47201 14.INSTALL BRAKE MASTER CYLINDER SUB-ASSEMBLY

Hide 31410 15.INSTALL CLUTCH MASTER CYLINDER ASSEMBLY (for Manual Transaxle)

Hide 16.INSPECT AND ADJUST BRAKE PEDAL

Hide 55606 17.INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Hide 18.INSTALL FRONT WHEEL RH

Hide 19.INSPECT FOR OIL LEAK (for 1ZR-FE, 2ZR-FE)

a.

Start the engine. Make sure that there are no engine oil leaks from the area that was worked on.


Hide 11212 20.INSTALL NO. 2 CYLINDER HEAD COVER (for 1ZR-FE, 2ZR-FE)
