55303B 1.INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY

a.

When installing a new lower instrument panel sub-assembly:

i.

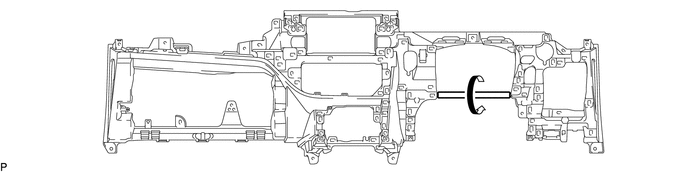

Immediately before installing the lower instrument panel sub-assembly, twist and cut off the portion as shown in the illustration.

b.

Install the lower instrument panel sub-assembly with the 2 bolts <A> or <B>, 8 screws <D> and screw <E> or <F>.

c.

Engage the 2 claws to connect the DLC3.

d.

w/ Rain Sensor:

i.

Connect each connector.

e.

Engage each clamp.

53601 2.CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

55054 3.INSTALL GLOVE COMPARTMENT DOOR STOPPER SUB-ASSEMBLY

55550 4.INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY

a.

2.385,1.927 2.698,2.083 0.313,0.156 10 false *a 1.823,0.281 2.135,0.438 0.313,0.156 10 false *b 2.677,1.052 2.99,1.208 0.313,0.156 10 false 53°

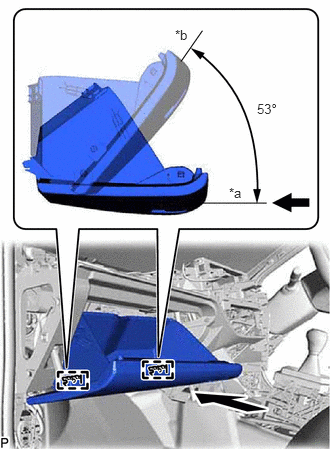

*a	Opened Approximately 53°
*b	Closed

With the glove compartment door assembly opened approximately 53° from its closed position, engage the 2 hinges horizontally.

NOTICE:

Engaging the hinges from the top will deform the hinges. Be sure to install the glove compartment door assembly horizontally.

b.

0.448,0.792 0.615,0.552 true 0.948,2.75 0.844,3.063 true 0.604,3.01 0.917,3.167 0.313,0.156 10 true *1 0.26,0.729 0.573,0.885 0.313,0.156 10 true *a 2.021,1.271 2.208,1.438 0.188,0.167 10 true A 0.656,1.271 0.844,1.438 0.188,0.167 10 true B

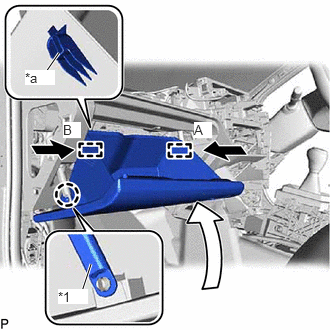

*1	Glove Compartment Door Stopper Sub-assembly
*a	Stopper

Slightly bend the stoppers (A) and (B) in the directions indicated by the arrows in the illustration and engage the stoppers to install the glove compartment door assembly.

c.

Engage the claw to connect the glove compartment door stopper sub-assembly.

62112 5.INSTALL COWL SIDE TRIM BOARD LH

67914 6.INSTALL FRONT DOOR SCUFF PLATE LH

55434B 7.INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL

a.

Connect each connector.

b.

Engage the clamp.

c.

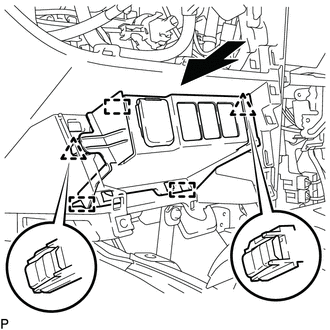

Engage the 3 guides and 2 clips to install the lower center instrument panel finish panel as shown in the illustration.

8.INSTALL AIR CONDITIONING PANEL ASSEMBLY (for Manual Air Conditioning System)

9.INSTALL CENTER INSTRUMENT PANEL SAFETY PAD RETAINER WITH AIR CONDITIONING CONTROL ASSEMBLY (for Automatic Air Conditioning System)

86212 10.INSTALL NO. 2 RADIO BRACKET

86211 11.INSTALL NO. 1 RADIO BRACKET

55045 12.INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

55606 13.INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

55447C 14.INSTALL NO. 2 SWITCH HOLE BASE

a.

w/o Smart Entry and Start System:

i.

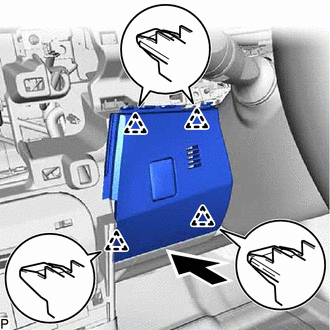

Engage the 5 clips to install the No. 2 switch hole base as shown in the illustration.

b.

w/ Smart Entry and Start System:

i.

Connect the connector.

ii.

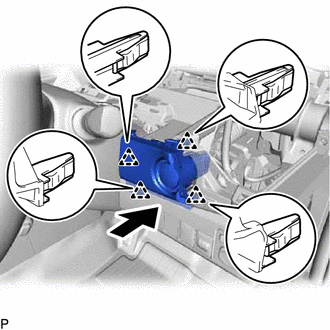

Engage the 4 clips to install the No. 2 switch hole base as shown in the illustration.

55446A 15.INSTALL NO. 1 SWITCH HOLE BASE

a.

Connect the connector.

b.

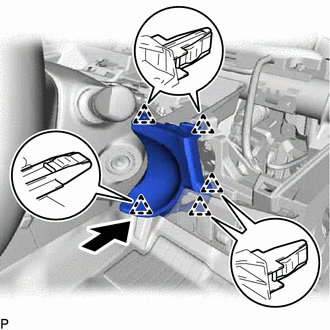

Engage the 4 clips to install the No. 1 switch hole base as shown in the illustration.

55545 16.INSTALL FUSE BOX OPENING COVER

62111C 17.INSTALL COWL SIDE TRIM BOARD RH

67913 18.INSTALL FRONT DOOR SCUFF PLATE RH

19.INSTALL CONSOLE BOX ASSEMBLY

20.INSTALL UPPER INSTRUMENT PANEL ASSEMBLY
