1.REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

55734A 2.REMOVE WATER GUARD PLATE RH

55737B 3.REMOVE NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL

55701J 4.REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY

89465 5.REMOVE HEATED OXYGEN SENSOR

6.REMOVE WIRE HARNESS CLAMP BRACKET

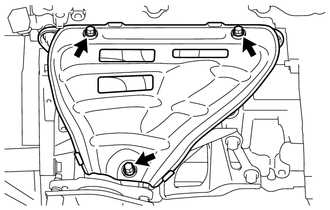

17167 7.REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR

a.

Remove the 3 bolts and No. 1 exhaust manifold heat insulator from the exhaust manifold.

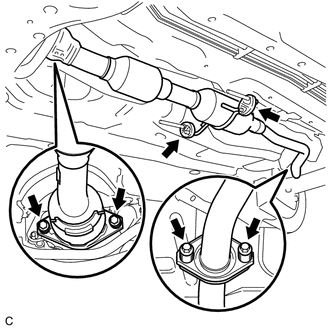

17410 8.REMOVE FRONT EXHAUST PIPE ASSEMBLY (TWC: Front and Rear Catalyst)

a.

Remove the 4 bolts and 4 compression springs.

b.

Remove the front exhaust pipe assembly (TWC: Front and Rear Catalyst) from the 2 exhaust pipe supports.

c.

Remove the 2 gaskets from the front exhaust pipe assembly (TWC: Front and Rear Catalyst) and exhaust manifold.

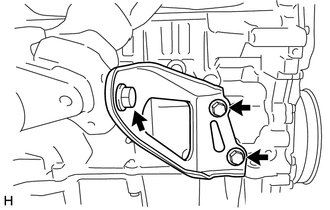

25591 9.REMOVE MANIFOLD SUPPORT BRACKET

a.

Remove the 3 bolts and manifold support bracket from the exhaust manifold and cylinder block sub-assembly.

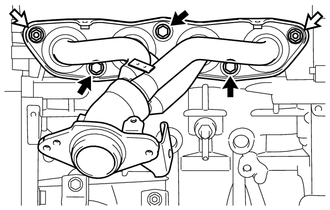

17141 10.REMOVE EXHAUST MANIFOLD

a.

0,0 0,0 false

	Bolt
	Nut

Remove the 3 bolts, 2 nuts and exhaust manifold from the cylinder head sub-assembly.

b.

Remove the exhaust manifold to head gasket from the cylinder head sub-assembly.
