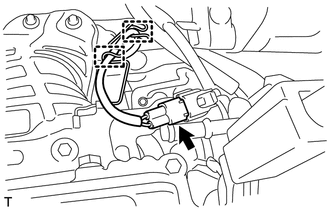

Disconnect the heated oxygen sensor connector and disengage the 2 wire harness clamps.

1.948,1.083 2.177,0.448 2.177,0.448 2.417,0.448 true 2.479,0.375 2.854,0.583 0.375,0.208 10 true SST

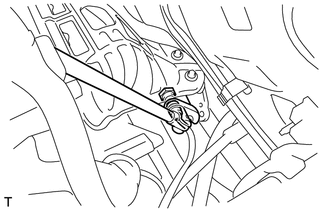

Using SST, remove the heated oxygen sensor from the exhaust manifold.

SST

09224-00010

NOTICE:

If the heated oxygen sensor has been struck or dropped, replace it.
