FRONT SUSPENSION  FRONT SHOCK ABSORBER  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 1.REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

Hide 55734A 2.REMOVE WATER GUARD PLATE RH

Hide 55737B 3.REMOVE NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL

Hide 55701J 4.REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY

Hide 5.REMOVE FRONT WHEEL

Hide 48810 6.SEPARATE FRONT STABILIZER LINK ASSEMBLY

a.

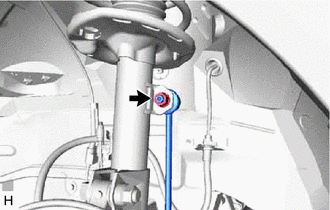

C289358

Remove the nut and separate the front stabilizer link assembly from the front shock absorber assembly.

HINT:

If the ball joint turns together with the nut, use a 6 mm hexagon wrench to hold the stud bolt.



Hide 47313J 7.SEPARATE FRONT FLEXIBLE HOSE (w/o ABS)

a.
C293319

Remove the bolt and separate the front flexible hose from the front shock absorber assembly.


Hide 89543 8.SEPARATE FRONT SPEED SENSOR (w/ ABS)

a.

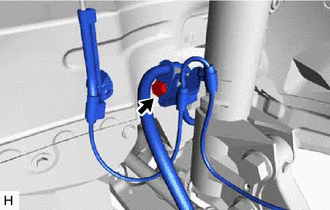

C290744

Remove the bolt and separate the front speed sensor and front flexible hose from the front shock absorber assembly.

NOTICE:

Be sure to separate the front speed sensor from the front shock absorber assembly completely.



Hide 48684B 9.REMOVE FRONT SUSPENSION SUPPORT DUST COVER

a.

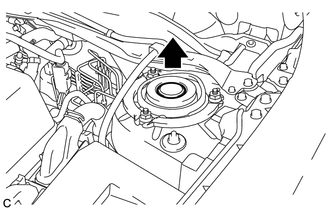

C190823

Remove the front suspension support dust cover.


Hide 10.REMOVE FRONT SHOCK ABSORBER WITH COIL SPRING

a.

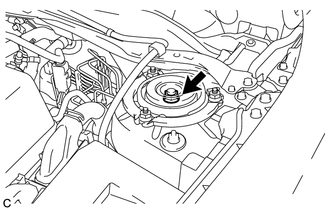

C190822

Loosen the front support to front shock absorber nut.

NOTICE:
·

Do not remove the front support to front shock absorber nut.

·

Loosen the front support to front shock absorber nut only when the front shock absorber with coil spring needs to be disassembled.




b.

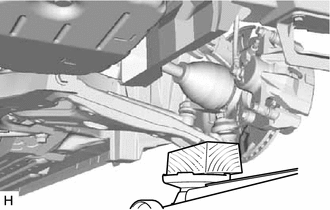

C289360
2.5,1.604 2.813,1.604 true 1.281,1.948 1.583,1.948 1.583,1.948 1.823,2.052 false 2.844,1.521 3.156,1.677 0.313,0.156 10 false *a 1.125,1.865 1.438,2.021 0.313,0.156 10 false *b
*a Wooden Block
*b Jack


Support the front lower No. 1 suspension arm sub-assembly using a jack and wooden block.


c.

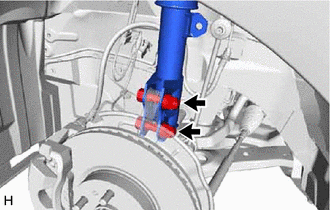

C289361

Remove the 2 bolts and 2 nuts, and separate the front shock absorber with coil spring (lower side) from the steering knuckle.

NOTICE:

When removing the nuts, keep the bolts from rotating.



d.

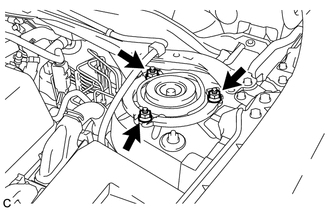

C190821

Remove the 3 nuts, front spring support reinforcement and front shock absorber with coil spring.

NOTICE:

Make sure that the front speed sensor is completely separated from the front shock absorber with coil spring.



Hide 48680A 11.REMOVE FRONT SUPPORT TO FRONT SHOCK ABSORBER NUT

a.

For SST with stopper pins:

i.

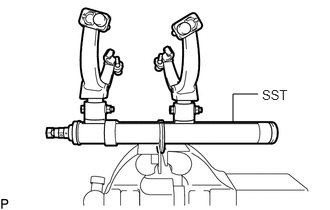

C287918N04
2.427,1.281 2.427,0.979 2.427,0.979 2.688,0.979 false 2.729,0.906 3.188,1.104 0.458,0.198 10 false SST

Secure SST in a vise.

SST
09727-30022  (09727-00010, 09727-00022, 09727-00031)


ii.

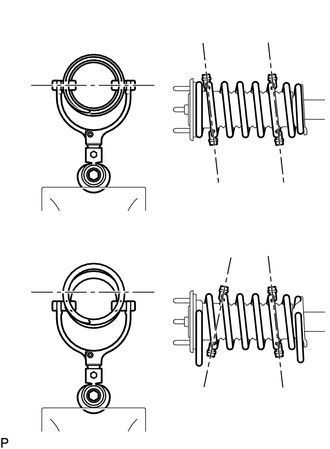

C298400
2.615,2.031 2.615,1.875 2.615,1.875 2.938,1.74 false 2.625,1.875 2.26,1.74 false 2.542,4.177 2.542,4.021 2.542,4.021 2.906,3.875 false 2.542,4.021 2.167,3.875 false 1.531,0.26 1.844,0.417 0.313,0.156 10 false *a 1.604,2.563 1.917,2.719 0.313,0.156 10 false *b 2.552,2.042 2.865,2.198 0.313,0.156 10 false *c 2.469,4.188 2.781,4.344 0.313,0.156 10 false *d
*a Correct
*b Incorrect
*c Parallel
*d Not Parallel


Attach the hooks of each SST arm across the diameter of the coil spring.

CAUTION:
·

Make sure that the hooks of the upper and lower arms are attached to the coil spring so that the distance between the hooks is as large as possible.

·

Make sure that the arms of SST are parallel and attached to the coil spring, and the number of coil springs between the hooks on each side is the same.

·

Check that the claws of the hooks are securely attached to the coil spring.




iii.

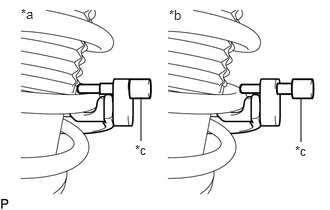

C302415C01
1.469,1.469 1.469,1.01 false 3.135,1.479 3.135,1.021 false 0.219,0.063 0.531,0.219 0.313,0.156 10 false *a 1.76,0.073 2.073,0.229 0.313,0.156 10 false *b 1.406,1.479 1.719,1.635 0.313,0.156 10 false *c 3.073,1.49 3.385,1.646 0.313,0.156 10 false *c
*a Correct
*b Incorrect
*c Stopper Pin


Install the stopper pins to the hooks of SST.

CAUTION:

Make sure that the stopper pins are installed securely.



iv.

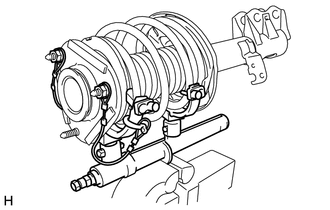

C302416
0.469,0.208 0.844,0.208 0.844,0.208 1.094,0.875 true 1.51,1.844 1.51,1.375 true 0.594,0.51 0.844,0.208 true 1.26,1.677 1.26,1.844 1.26,1.844 1.844,1.844 true 0.313,0.135 0.625,0.292 0.313,0.156 10 false *a 1.865,1.771 2.177,1.927 0.313,0.156 10 true SST
*a Vehicle Nut


Install SST and 2 vehicle nuts to the upper support as shown in the illustration.

SST
09727-30022  (09727-00090, 09727-00100)


v.

Using SST, compress the coil spring.

CAUTION:
·

If the coil spring bends while using SST, stop immediately and reattach SST correctly.

·

Do not compress the coil spring to the point where the coils touch each other.

·

Do not use an impact wrench.

·
C302417
0.844,1.854 1.26,1.854 true 0.563,1.781 1.021,1.979 0.458,0.198 10 false SST

If a stopper pin touches the coil spring while using SST, remove the stopper pin and continue with the procedure. In this case, installing the coil spring stopper belt as shown in the illustration is recommended.



SST
09727-00110


vi.

Check that the coil spring has become detached, and then remove the front support to front shock absorber nut.

CAUTION:

Do not remove the front support to front shock absorber nut if the coil spring is not free.




b.

For SST without stopper pins:

i.

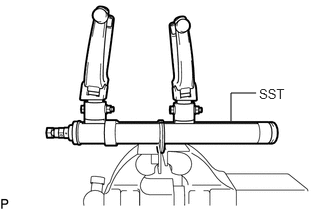

C288500N06
2.406,1.26 2.406,0.969 2.406,0.969 2.667,0.969 false 2.698,0.896 3.156,1.094 0.458,0.198 10 false SST

Secure SST in a vise.

SST
09727-30021  (09727-00010, 09727-00021, 09727-00031)


ii.
C298400
2.615,2.031 2.615,1.875 2.615,1.875 2.938,1.74 false 2.625,1.875 2.26,1.74 false 2.542,4.177 2.542,4.021 2.542,4.021 2.906,3.875 false 2.542,4.021 2.167,3.875 false 1.531,0.26 1.844,0.417 0.313,0.156 10 false *a 1.604,2.563 1.917,2.719 0.313,0.156 10 false *b 2.552,2.042 2.865,2.198 0.313,0.156 10 false *c 2.469,4.188 2.781,4.344 0.313,0.156 10 false *d
*a Correct
*b Incorrect
*c Parallel
*d Not Parallel


Attach the hooks of each SST arm across the diameter of the coil spring.

CAUTION:
·

Make sure that the hooks of the upper and lower arms are attached to the coil spring so that the distance between the hooks is as large as possible.

·

Make sure that the arms of SST are parallel and attached to the coil spring, and the number of coil springs between the hooks on each side is the same.

·

Check that the claws of the hooks are securely attached to the coil spring.




iii.

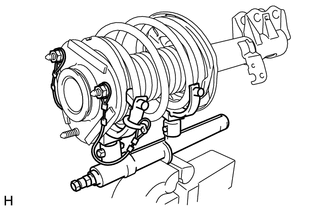

C302418
1.229,1.677 1.229,1.833 1.229,1.833 1.917,1.833 true 0.552,0.219 0.844,0.219 0.844,0.219 1.083,0.875 true 0.615,0.531 0.833,0.229 true 1.49,1.823 1.49,1.354 true 0.385,0.146 0.698,0.302 0.313,0.156 10 false *a 1.938,1.76 2.25,1.917 0.313,0.156 10 true SST
*a Vehicle Nut


Install SST and 2 vehicle nuts to the upper support as shown in the illustration.

SST
09727-30021  (09727-00090, 09727-00100)


iv.

Using SST, compress the coil spring.

CAUTION:
·

If the coil spring bends while using SST, stop immediately and reattach SST correctly.

·

Do not compress the coil spring to the point where the coils touch each other.

·

Do not use an impact wrench.



HINT:

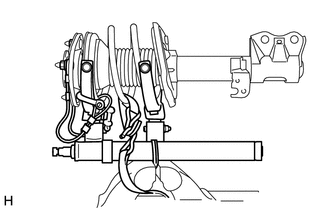

C302419
0.802,1.865 1.25,1.865 true 0.521,1.792 0.979,1.99 0.458,0.198 10 false SST

Installing SST as shown in the illustration is recommended.


SST
09727-00110


v.

Check that the coil spring has become detached, and then remove the front support to front shock absorber nut.

CAUTION:

Do not remove the front support to front shock absorber nut if the coil spring is not free.




Hide 48609 12.REMOVE FRONT SUSPENSION SUPPORT SUB-ASSEMBLY

Hide 48609D 13.REMOVE FRONT SUSPENSION SUPPORT DUST SEAL

Hide 48471C 14.REMOVE FRONT UPPER COIL SPRING SEAT

Hide 48157C 15.REMOVE FRONT UPPER COIL SPRING INSULATOR

Hide 48132 16.REMOVE FRONT COIL SPRING

a.

Remove SST from the front coil spring.

NOTICE:

Do not use an impact wrench. It will damage SST.



Hide 48331C 17.REMOVE FRONT SPRING BUMPER

Hide 48158C 18.REMOVE FRONT LOWER COIL SPRING INSULATOR

Hide 48520 19.REMOVE FRONT SHOCK ABSORBER ASSEMBLY
