1.REMOVE FRONT WHEELS

51442C 2.REMOVE ENGINE UNDER COVER LH

51441C 3.REMOVE ENGINE UNDER COVER RH

4.DRAIN AUTOMATIC TRANSAXLE FLUID (for Automatic Transaxle)

5.DRAIN MANUAL TRANSAXLE OIL (for Manual Transaxle)

43502H 6.REMOVE FRONT AXLE SHAFT NUT

a.

2.198,1.26 2.438,1.063 2.438,1.063 2.719,1.063 false 2.771,0.979 3.229,1.177 0.458,0.198 10 false SST

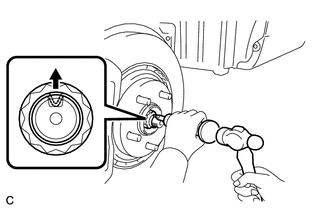

Using SST and a hammer, release the staked part of the front axle shaft nut.

SST

09930-00010

NOTICE:

Loosen the staked part of the front axle shaft nut completely, otherwise the threads of the drive shaft may be damaged.

b.

While applying the brakes, remove the front axle shaft nut.

47313J 7.SEPARATE FRONT FLEXIBLE HOSE (w/o ABS)

89543 8.SEPARATE FRONT SPEED SENSOR (w/ ABS)

45047 9.SEPARATE TIE ROD END SUB-ASSEMBLY

48810 10.SEPARATE FRONT STABILIZER LINK ASSEMBLY

48069 11.SEPARATE FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY

12.SEPARATE FRONT DRIVE SHAFT ASSEMBLY

43420 13.REMOVE FRONT DRIVE SHAFT ASSEMBLY LH

a.

2.188,1.875 2.188,1.635 false 2.073,1.906 2.531,2.104 0.458,0.198 10 false SST

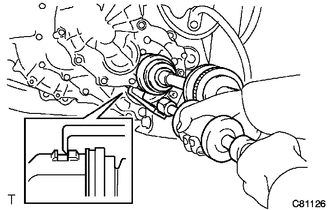

Using SST, remove the front drive shaft assembly LH.

SST

09520-01010
09520-24010  (09520-32040)

NOTICE:

·

Do not damage the front drive shaft oil seal LH.

·

Do not damage the front axle inboard joint boot.

·

Do not drop the front drive shaft assembly LH.

43410 14.REMOVE FRONT DRIVE SHAFT ASSEMBLY RH

43420G 15.REMOVE FRONT DRIVE SHAFT HOLE SNAP RING

a.

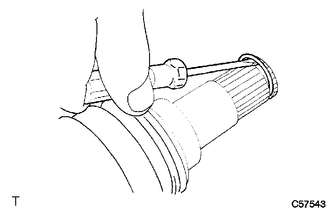

Using a screwdriver, remove the front drive shaft hole snap ring.
