C50 MANUAL TRANSMISSION / TRANSAXLE  MANUAL TRANSAXLE OIL  REPLACEMENT


PROCEDURE

Hide 51442C 1.REMOVE ENGINE UNDER COVER LH

Click hereEngine / Hybrid System>2NZ-FE ENGINE MECHANICAL>ENGINE ASSEMBLY>REMOVAL

Hide 2.DRAIN MANUAL TRANSAXLE OIL

a.

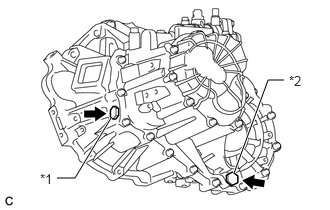

C304655C01
0.594,1.854 0.781,1.854 0.781,1.854 1.156,1.229 true 2.438,1.802 2.792,0.833 2.792,0.833 2.958,0.833 true 0.417,1.781 0.729,1.979 0.313,0.198 10 false *1 3.01,0.76 3.323,0.958 0.313,0.198 10 false *2
*1 Manual Transmission Filler Plug
*2 Drain Plug Sub-assembly


Remove the manual transmission filler plug and gasket.


b.

Remove the drain plug sub-assembly and gasket to drain the manual transaxle oil.


c.

Install a new gasket and the drain plug sub-assembly.

Torque:
39.2 N*m (400 kgf*cm, 29 ft.*lbf)


Hide 3.ADD MANUAL TRANSAXLE OIL

a.

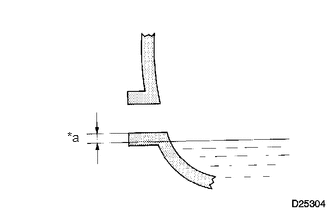

D025304C02
0.698,1.344 1.01,1.594 0.313,0.25 10 *a
*a 0 to 5 mm (0 to 0.197 in.)


Add manual transaxle oil until the oil level is between 0 to 5 mm (0 to 0.197 in.) from the bottom lip of the manual transmission filler plug opening.

Oil Grade:

API GL-4


Oil Viscosity:

SAE 75W-90


Standard Capacity:

1.9 liters (2.0 US qts, 1.7 Imp. qts)



b.

Install a new gasket and the manual transmission filler plug.

Torque:
39.2 N*m (400 kgf*cm, 29 ft.*lbf)

NOTICE:
·

When adding manual transaxle oil, make sure that the vehicle is level.

·

An excessively large or small amount of manual transaxle oil may cause problems.

·

After adding manual transaxle oil, drive the vehicle and recheck the oil level.




Hide 4.INSPECT FOR OIL LEAK

Hide 51442C 5.INSTALL ENGINE UNDER COVER LH

Click hereEngine / Hybrid System>2NZ-FE ENGINE MECHANICAL>ENGINE ASSEMBLY>INSTALLATION
