SUPPLEMENTAL RESTRAINT SYSTEMS  CENTER AIRBAG SENSOR ASSEMBLY  INSTALLATION


PROCEDURE

Hide 89170A 1.INSTALL AIRBAG ECU ASSEMBLY

a.

Check that the ignition switch is off.


b.

Check that the cable is disconnected from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.



c.
B324576

Install the airbag ECU assembly with the 3 bolts.

Torque:
17.5 N*m (178 kgf*cm, 13 ft.*lbf)

NOTICE:
·

If the airbag ECU assembly has been dropped, or there are any cracks, dents or other defects in the case or connector, replace it with a new one.

·

When installing the airbag ECU assembly, be careful that the SRS wiring does not interfere with or is not pinched between other parts.

·

When the ignition switch is first turned to ON after the airbag ECU assembly has been replaced, make sure that no one is in the vehicle.




d.

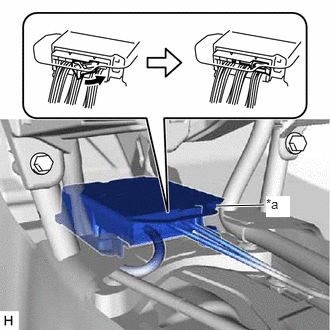

B324575C03
2.25,2.146 2.75,2.135 true 2.771,2.042 3.021,2.26 0.25,0.219 10 true *a
*a Waterproof Sheet


Connect the connectors to the airbag ECU assembly as shown in the illustration.

NOTICE:

When connecting any airbag connector, take care not to damage the airbag wire harness.



e.

Check that the waterproof sheet is properly set.


f.

Check that there is no looseness in the installed parts of the airbag ECU assembly.


Hide 58817A 2.INSTALL FRONT NO. 2 CONSOLE BOX INSERT

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>INSTALLATION

Hide 58816B 3.INSTALL CONSOLE BOX INSERT

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>INSTALLATION

Hide 4.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>INITIALIZATION


Hide 7. PERFORM YAW RATE AND ACCELERATION SENSOR ZERO POINT CALIBRATION (w/ VSC)

a.

When the airbag ECU assembly (center airbag sensor assembly) is replaced, perform zero point learning for the yaw rate and acceleration sensor.

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>VEHICLE STABILITY CONTROL SYSTEM>CALIBRATION

HINT:

The yaw rate and acceleration sensor is built into the airbag ECU assembly (center airbag sensor assembly).



Hide 8. PERFORM INITIALIZATION (for CVT)

a.

When the airbag ECU assembly (center airbag sensor assembly) is replaced, perform initialization.

Click hereDrivetrain>K313 CVT>CONTINUOUSLY VARIABLE TRANSAXLE SYSTEM>INITIALIZATION
