LIGHTING (EXT)  AUTOMATIC HEADLIGHT BEAM LEVEL CONTROL SYSTEM  Headlight Beam Level Control Actuator Circuit


DESCRIPTION

The headlight leveling ECU assembly actuates the headlight leveling motors according to the vehicle condition.

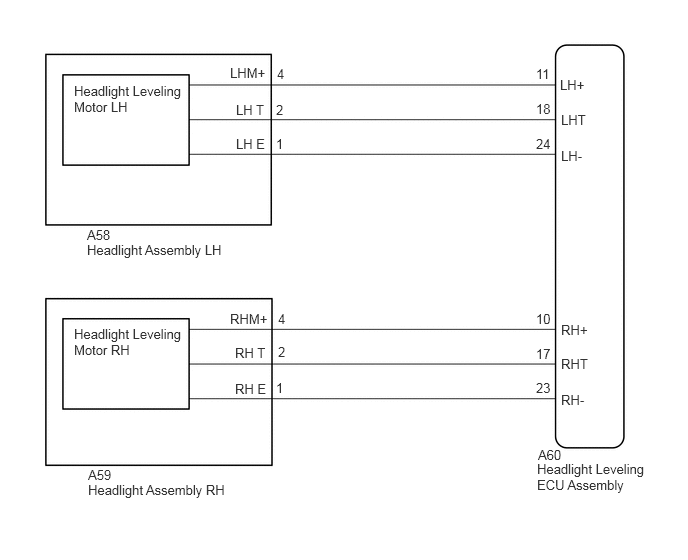

WIRING DIAGRAM

E303871E11
5.604,4.656 6.177,4.969 0.573,0.313 10 false A60 5.594,4.802 6.719,5.365 1.125,0.563 10 false Headlight Leveling ECU Assembly 5.583,0.688 6.156,1.01 0.573,0.323 10 false 11 5.833,0.802 6.406,1.104 0.573,0.302 10 false LH+ 5.844,1.167 6.417,1.469 0.573,0.302 10 false LHT 5.844,1.542 6.417,1.844 0.573,0.302 10 false LH- 5.583,1.052 6.156,1.375 0.573,0.323 10 false 18 5.583,1.417 6.156,1.74 0.573,0.323 10 false 24 5.583,3.24 6.156,3.563 0.573,0.323 10 false 10 5.583,3.604 6.156,3.927 0.573,0.323 10 false 17 5.583,3.958 6.156,4.281 0.573,0.323 10 false 23 5.844,3.354 6.417,3.656 0.573,0.302 10 false RH+ 5.844,3.708 6.417,4.01 0.573,0.302 10 false RHT 5.844,4.083 6.417,4.385 0.573,0.302 10 false RH- 0.771,0.865 1.906,1.406 1.135,0.542 10 false Headlight Leveling Motor LH 0.771,3.396 1.906,3.938 1.135,0.542 10 false Headlight Leveling Motor RH 2.396,0.677 2.969,0.99 0.573,0.313 10 false LHM+ 2.458,1.063 3.594,1.604 1.135,0.542 10 false LH T 2.458,1.417 3.594,1.958 1.135,0.542 10 false LH E 2.885,0.688 4.021,1.229 1.135,0.542 10 false 4 2.875,1.063 4.01,1.604 1.135,0.542 10 false 2 2.875,1.417 4.01,1.958 1.135,0.542 10 false 1 2.875,3.958 4.01,4.5 1.135,0.542 10 false 1 2.896,3.583 4.031,4.125 1.135,0.542 10 false 2 2.896,3.24 4.031,3.781 1.135,0.542 10 false 4 0.906,2.521 2.823,3.042 1.917,0.521 10 false Headlight Assembly LH 0.906,2.365 1.583,2.615 0.677,0.25 10 false A58 0.917,5.021 2.833,5.542 1.917,0.521 10 false Headlight Assembly RH 0.917,4.865 1.615,5.156 0.698,0.292 10 false A59 2.396,3.24 2.885,3.479 0.49,0.24 10 false RHM+ 2.448,3.594 3.583,4.135 1.135,0.542 10 false RH T 2.448,3.969 3.583,4.51 1.135,0.542 10 false RH E

CAUTION / NOTICE / HINT

NOTICE:

If the headlight leveling ECU assembly has been replaced, it is necessary to initialize the headlight leveling ECU assembly.

Click hereVehicle Exterior>LIGHTING (EXT)>AUTOMATIC HEADLIGHT BEAM LEVEL CONTROL SYSTEM>INITIALIZATION


PROCEDURE

1.PERFORM ACTIVE TEST USING GTS
a.

Connect the GTS to the DLC3.


b.

Start the engine.


c.

Turn the GTS on.


d.

Enter the following menus: Body Electrical / HL AutoLeveling / Active Test.


e.

Perform the Active Test according to the display on the GTS.

Body Electrical > HL AutoLeveling > Active Test
Tester Display Measurement Item Control Range Diagnostic Note
Drive The Leveling Motor Headlight leveling motor upward or downward operation Stop, Down or UP Perform the Active Test with the engine started and vehicle stopped
Body Electrical > HL AutoLeveling > Active Test
Tester Display
Drive The Leveling Motor
50004 165 22
OK:

Headlight leveling motors operate normally.



Result:
Proceed to
OK
NG



OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

Click hereVehicle Exterior>LIGHTING (EXT)>AUTOMATIC HEADLIGHT BEAM LEVEL CONTROL SYSTEM>PROBLEM SYMPTOMS TABLE


NG

2.CHECK HARNESS AND CONNECTOR (HEADLIGHT ASSEMBLY (HEADLIGHT LEVELING MOTOR) - HEADLIGHT LEVELING ECU ASSEMBLY)
2.CHECK HARNESS AND CONNECTOR (HEADLIGHT ASSEMBLY (HEADLIGHT LEVELING MOTOR) - HEADLIGHT LEVELING ECU ASSEMBLY)
a.

Disconnect the A58 headlight assembly LH (headlight leveling motor) connector.


b.

Disconnect the A59 headlight assembly RH (headlight leveling motor) connector.


c.

Disconnect the A60 headlight leveling ECU assembly connector.


d.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
for LH Side
Tester Connection Condition Specified Condition
A58-2 (LH T) - A60-18 (LHT) Always Below 1 Ω
A58-4 (LHM+) - A60-11 (LH+) Always Below 1 Ω
A58-1 (LH E) - A60-24 (LH-) Always Below 1 Ω
A58-2 (LH T) or A60-18 (LHT) - Body ground Always 10 kΩ or higher
A58-4 (LHM+) or A60-11 (LH+) - Body ground Always 10 kΩ or higher
A58-1 (LH E) or A60-24 (LH-) - Body ground Always 10 kΩ or higher

for RH Side
Tester Connection Condition Specified Condition
A59-2 (RH T) - A60-17 (RHT) Always Below 1 Ω
A59-4 (RHM+) - A60-10 (RH+) Always Below 1 Ω
A59-1 (RH E) - A60-23 (RH-) Always Below 1 Ω
A59-2 (RH T) or A60-17 (RHT) - Body ground Always 10 kΩ or higher
A59-4 (RHM+) or A60-10 (RH+) - Body ground Always 10 kΩ or higher
A59-1 (RH E) or A60-23 (RH-) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

3.REPLACE HEADLIGHT ASSEMBLY (HEADLIGHT LEVELING MOTOR)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

3.REPLACE HEADLIGHT ASSEMBLY (HEADLIGHT LEVELING MOTOR)
a.

Replace the headlight assembly (headlight leveling motor) with a new or known good one.

Click hereVehicle Exterior>LIGHTING (EXT)>HEADLIGHT ASSEMBLY(for LED Headlight)>DISASSEMBLY


Result:
Proceed to
NEXT



NEXT

4.PERFORM ACTIVE TEST USING GTS
4.PERFORM ACTIVE TEST USING GTS
a.

Connect the GTS to the DLC3.


b.

Start the engine.


c.

Turn the GTS on.


d.

Enter the following menus: Body Electrical / HL AutoLeveling / Active Test.


e.

Perform the Active Test according to the display on the GTS.

Body Electrical > HL AutoLeveling > Active Test
Tester Display Measurement Item Control Range Diagnostic Note
Drive The Leveling Motor Headlight leveling motor upward or downward operation Stop, Down or UP Perform the Active Test with the engine started and vehicle stopped
Body Electrical > HL AutoLeveling > Active Test
Tester Display
Drive The Leveling Motor
50004 165 22
OK:

Headlight leveling motors operate normally.



Result:
Proceed to
OK
NG



OK

END (HEADLIGHT ASSEMBLY (HEADLIGHT LEVELING MOTOR) WAS DEFECTIVE)

NG

REPLACE HEADLIGHT LEVELING ECU ASSEMBLY

Click hereVehicle Exterior>LIGHTING (EXT)>HEADLIGHT LEVELING ECU>REMOVAL
