LIGHTING (EXT)  HEADLIGHT ASSEMBLY(for LED Headlight)  DISASSEMBLY


PROCEDURE

Hide 81510D 1.REMOVE FRONT TURN SIGNAL LIGHT BULB

a.

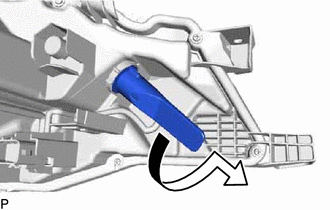

E363386

Turn the headlight cord with the front turn signal light bulb as shown in the illustration, and disconnect them as a unit.


b.

Remove the front turn signal light bulb from the headlight cord.


Hide 53182E 2.REMOVE HEADLIGHT COVER

a.

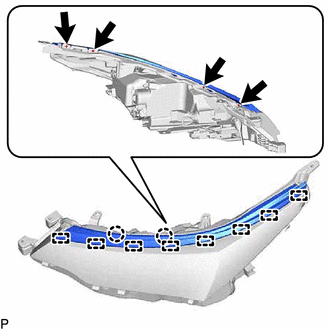

E355637

Remove the 4 screws.


b.

Disengage the 2 claws and 8 guides to remove the headlight cover.
