LIGHTING (EXT)  HEADLIGHT LEVELING ECU  REMOVAL


PROCEDURE

Hide 1. PRECAUTION

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION


Hide 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>INITIALIZATION


Hide 55550 3.REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>LOWER INSTRUMENT PANEL>REMOVAL

Hide 4.REMOVE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY WITH MAIN BODY ECU

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL

Hide 89960 5.REMOVE HEADLIGHT LEVELING ECU ASSEMBLY

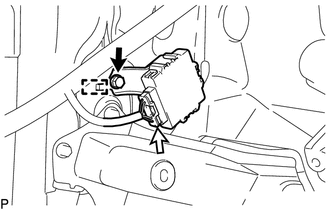

a.
E282320

Remove the bolt.


b.

Disengage the guide.


c.

Disconnect the connector to remove the headlight leveling ECU assembly.
