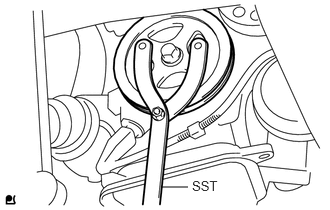

Using SST, hold the crankshaft pulley.

SST

09960-10010  (09962-01000, 09963-01000)

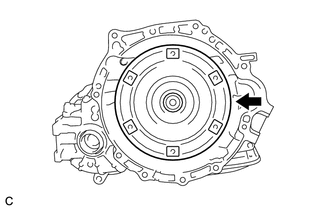

Remove the 6 drive plate and torque converter assembly setting bolts.

0.177,2.427 0.469,2.646 0.292,0.219 10 false *a 2.073,2.042 2.365,2.229 0.292,0.188 10 false *b 2.083,0.813 2.271,0.99 0.188,0.177 10 true *c 2.24,2.521 2.438,2.708 0.198,0.188 10 true *d

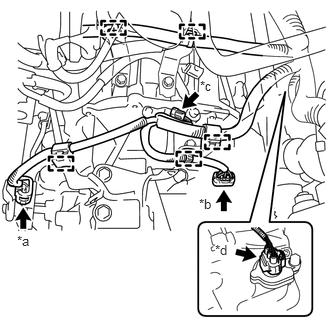

*a	Park/Neutral Position Switch Assembly Connector
*b	Transmission Wire Connector
*c	Transmission Revolution Sensor Connector
*d	Speedometer Sensor Connector

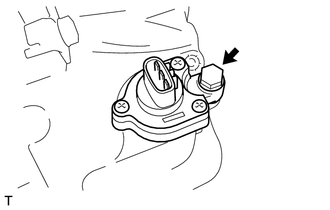

Disconnect the park/neutral position switch assembly connector.

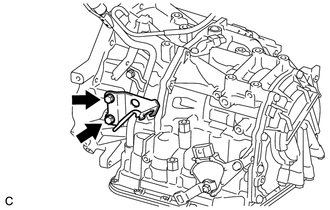

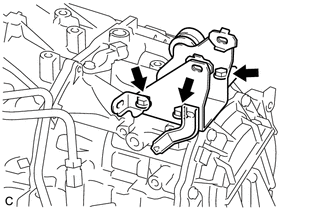

Remove the 2 bolts and front engine mounting bracket from the automatic transaxle assembly.

Remove the 3 bolts and rear engine mounting bracket from the automatic transaxle assembly.

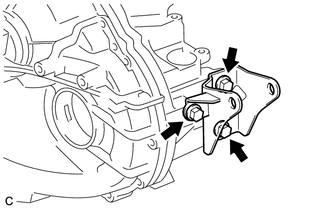

Remove the 3 bolts and engine mounting bracket LH from the automatic transaxle assembly.

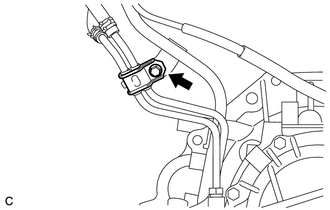

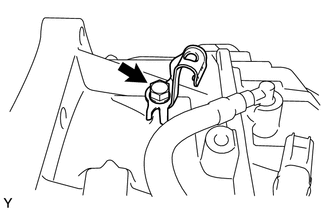

Remove the bolt and No. 2 oil cooler tube clamp from the transmission oil filler tube sub-assembly.

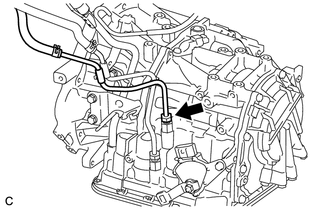

Using a 14 mm union nut wrench, remove the inlet No. 1 oil cooler tube from the automatic transaxle assembly while holding the oil cooler tube union with a wrench.

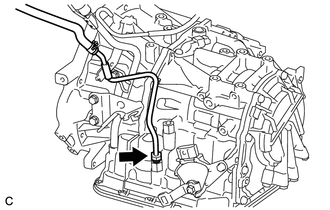

Using a 14 mm union nut wrench, remove the outlet No. 1 oil cooler tube from the automatic transaxle assembly while holding the oil cooler tube union with a wrench.

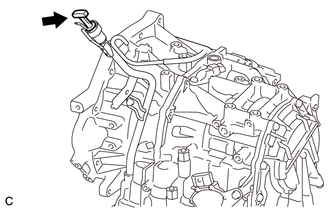

Remove the transmission oil level dipstick sub-assembly from the transmission oil filler tube sub-assembly.

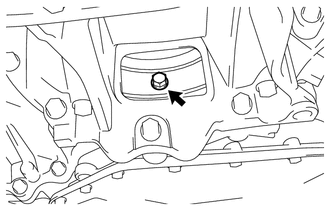

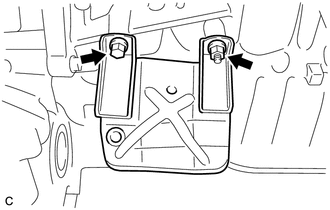

Remove the bolt, nut and drive shaft heat insulator sub-assembly from the engine assembly.

0.781,0.073 0.938,0.271 0.156,0.198 10 false A 2.354,0.031 2.51,0.229 0.156,0.198 10 false A 2.167,2 2.323,2.177 0.156,0.177 10 false B 0.813,1.802 0.969,2 0.156,0.198 10 false B 1.156,1.979 1.313,2.156 0.156,0.177 10 false B 0.51,0.927 0.667,1.125 0.156,0.198 10 false B 2.542,1.917 2.698,2.115 0.156,0.198 10 false B

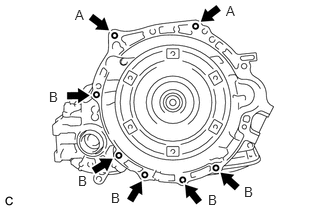

Remove the 7 bolts and automatic transaxle assembly from the engine assembly.

NOTICE:

To prevent damage to the 2 knock pins, do not pry between the automatic transaxle assembly and engine assembly.

HINT:

·

Bolt (A): Remove from automatic transaxle assembly side

·

Bolt (B): Remove from engine assembly side

Remove the torque converter assembly from the automatic transaxle assembly.

NOTICE:

Remove the torque converter assembly from the input shaft horizontally.

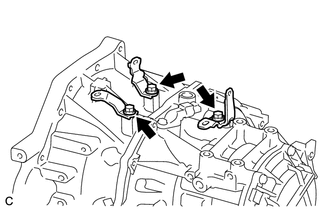

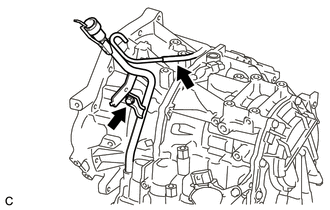

Remove the 3 bolts and 3 wire harness clamp brackets from the automatic transaxle assembly.

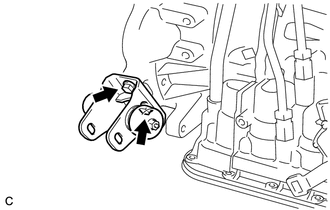

Remove the bolt and transmission control cable support from the automatic transaxle assembly.

Remove the bolt and speedometer sensor from the automatic transaxle assembly.

0.844,1.74 0.844,1.385 false 1.688,1.573 1.688,1.219 false 3.094,1.708 3.094,1.354 false 0.792,1.75 1.104,1.906 0.313,0.156 10 false *1 1.625,1.604 1.938,1.76 0.313,0.156 10 false *2 3.042,1.719 3.354,1.875 0.313,0.156 10 false *3

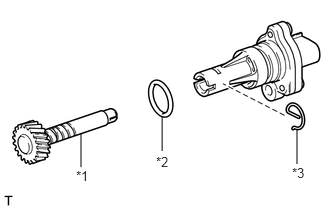

*1	Speedometer Driven Gear
*2	O-ring
*3	Clip

Remove the clip and speedometer driven gear from the speedometer sensor.
