2NZ-FE STARTING  STARTER  REMOVAL


PROCEDURE

Hide 1. PRECAUTION

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION


Hide 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>INITIALIZATION


Hide 28100 3.REMOVE STARTER ASSEMBLY

a.

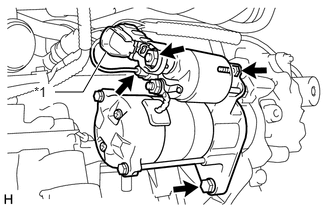

A302884C04
0.573,0.958 0.865,0.958 0.865,0.958 1.104,0.542 true 0.354,0.875 0.552,1.104 0.198,0.229 10 true *1
*1 Terminal Cap


Open the terminal cap.


b.

Remove the nut and disconnect terminal 30.


c.

Disconnect the starter assembly connector.


d.

Remove the 2 bolts and starter assembly.
