2NZ-FE ENGINE MECHANICAL FRONT CRANKSHAFT OIL SEAL INSTALLATION
PROCEDURE
15100C
1.INSTALL OIL PUMP SEAL
a.
Apply MP grease to the lip of a new oil pump seal.
- NOTICE:
-
Keep the lip free from foreign matter.
b.
0.563,2.615 0.688,2.615
0.688,2.615 0.635,2.188
false
0.25,2.542 0.708,2.74
0.458,0.198
10
false
SST

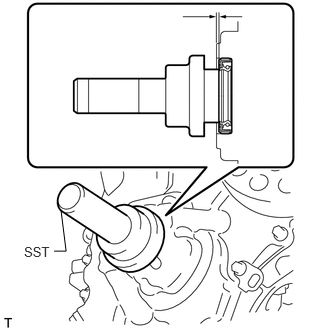

Using SST and a hammer, tap in the oil pump seal until its surface is flush with the oil pump assembly edge.
- SST
- 09223-22010
- NOTICE:
- ·
Wipe off excess grease from the crankshaft.
·Do not tap in the oil pump seal at an angle.
- HINT:
-
Oil pump seal tap in depth: 0 to - 1.0 mm (0 to -0.0394 in.)
13407
2.INSTALL CRANKSHAFT DAMPER SUB-ASSEMBLY
16361A
3.INSTALL V-RIBBED BELT
4.INSPECT FOR OIL LEAK
51441C
5.INSTALL ENGINE UNDER COVER RH
6.INSTALL FRONT WHEEL RH
