2NZ-FE ENGINE MECHANICAL DRIVE BELT INSTALLATION
PROCEDURE
16361A
1.INSTALL V-RIBBED BELT
a.
Temporarily install the V-ribbed belt onto each pulley.
- NOTICE:
-
Make sure that the V-ribbed belt is securely fitted into the ribbed grooves of each pulley.
16361A
2.ADJUST V-RIBBED BELT
a.
0.344,1.021 0.656,1.177
0.313,0.156
10
false
*a
2.427,0.313 2.74,0.469
0.313,0.156
10
false
*b
| *a | Correct |
| *b | Incorrect |

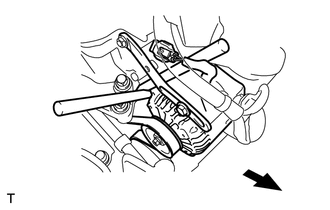

Insert an adjusting bar between the engine mounting bracket RH and generator assembly. Push the adjusting bar toward the front of the vehicle to adjust the V-ribbed belt tension.
- NOTICE:
-
Do not insert the adjusting bar between the camshaft timing oil control valve assembly and generator assembly. It could damage the camshaft timing oil control valve assembly.
b.
First tighten the bolt (A), then tighten bolt (B).
- Torque:
- Bolt (A) : 18.5 N*m (189 kgf*cm, 14 ft.*lbf)
- Bolt (B) : 54 N*m (551 kgf*cm, 40 ft.*lbf)
16361A
3.INSPECT V-RIBBED BELT
