2NZ-FE ENGINE MECHANICAL  FRONT CRANKSHAFT OIL SEAL  REMOVAL


PROCEDURE

Hide 1.REMOVE FRONT WHEEL RH

Click hereSuspension>TIRE / WHEEL>TIRE AND WHEEL>REMOVAL

Hide 51441C 2.REMOVE ENGINE UNDER COVER RH

Click hereEngine / Hybrid System>2NZ-FE ENGINE MECHANICAL>ENGINE ASSEMBLY>REMOVAL

Hide 13407 4.REMOVE CRANKSHAFT DAMPER SUB-ASSEMBLY

Click hereEngine / Hybrid System>2NZ-FE ENGINE MECHANICAL>ENGINE UNIT>DISASSEMBLY

Hide 15100C 5.REMOVE OIL PUMP SEAL

a.

Using a knife, cut off the lip of the oil pump seal.


b.

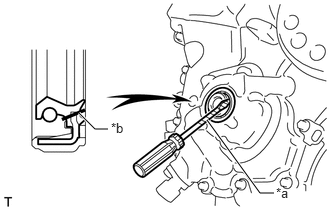

A166924C02
1.125,1.344 0.99,1.344 0.99,1.344 0.823,1.177 true 2.854,2.01 2.708,2.01 2.708,2.01 2.156,1.25 true 2.875,1.927 3.188,2.125 0.313,0.198 10 false *a 1.156,1.25 1.469,1.448 0.313,0.198 10 false *b
*a Protective Tape
*b Cut Position


Using a screwdriver, pry out the oil pump seal.

NOTICE:

After removal, check the crankshaft for damage. If damaged, smooth the surface with 400-grit sandpaper.


HINT:

Tape the screwdriver tip before use.
