2NZ-FE ENGINE MECHANICAL DRIVE BELT REMOVAL
PROCEDURE
16361A
1.REMOVE V-RIBBED BELT
a.
2.26,0.344 2.417,0.521
0.156,0.177
10
true
A
1.917,1.917 2.073,2.094
0.156,0.177
10
true
B

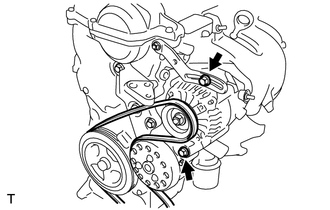

Loosen the bolts (A) and (B).
b.
Release the V-ribbed belt tension and remove the V-ribbed belt.
