THEFT DETERRENT / KEYLESS ENTRY SMART ENTRY AND START SYSTEM(for Entry Function) Luggage Compartment Door Entry Unlock Function does not Operate when Key is Outside Luggage Compartment

DESCRIPTION

If the entry luggage compartment door open function does not operate, there may be a malfunction in the luggage electrical key switch circuit or certification ECU (smart key ECU assembly), which receives a signal from the luggage electrical key switch circuit, or a communication error between the vehicle (electrical key antenna (outside luggage compartment)) and electrical key transmitter sub-assembly.

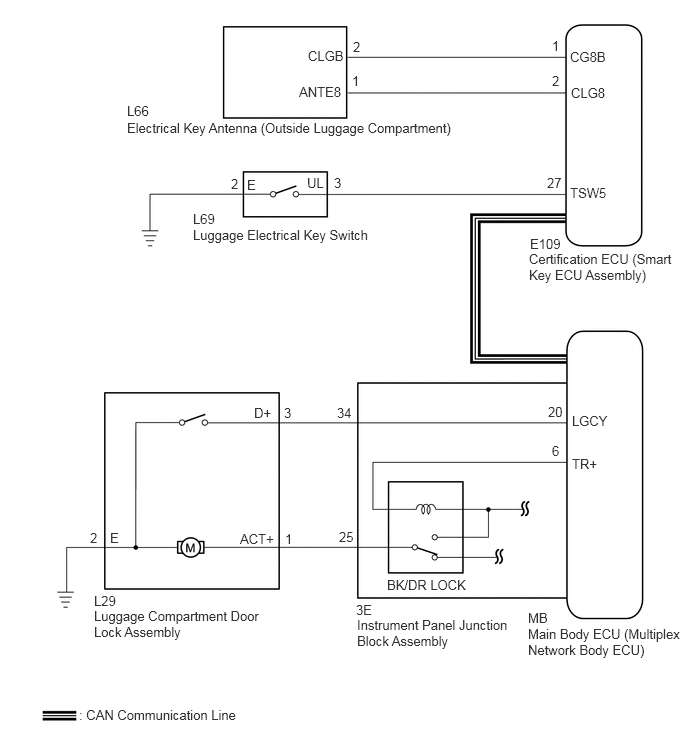

WIRING DIAGRAM

1.323,1.25 4.865,1.51 3.542,0.26 10 false Electrical Key Antenna (Outside Luggage Compartment) 1.323,1.073 1.656,1.281 0.333,0.208 10 false L66 3.208,0.5 3.656,0.708 0.448,0.208 10 false CLGB 3.115,0.875 3.563,1.083 0.448,0.208 10 false ANTE8 3.677,0.406 3.885,0.615 0.208,0.208 10 false 2 5.75,0.76 5.958,0.969 0.208,0.208 10 false 2 5.75,0.396 5.958,0.604 0.208,0.208 10 false 1 3.667,0.76 3.875,0.969 0.208,0.208 10 false 1 2.01,2.365 3.99,2.625 1.979,0.26 10 false Luggage Electrical Key Switch 2.01,2.198 2.344,2.406 0.333,0.208 10 false L69 2.406,1.833 2.615,2.042 0.208,0.208 10 false 2 2.573,1.844 2.781,2.052 0.208,0.208 10 false E 3.479,1.823 3.688,2.031 0.208,0.208 10 false 3 3.198,1.823 3.406,2.031 0.208,0.208 10 false UL 5.698,1.823 5.906,2.031 0.208,0.208 10 false 27 5.948,0.885 6.396,1.094 0.448,0.208 10 false CLG8 5.938,0.51 6.385,0.719 0.448,0.208 10 false CG8B 5.521,2.458 5.969,2.667 0.448,0.208 10 false E109 5.51,2.615 7.052,3.021 1.542,0.406 10 false Certification ECU (Smart Key ECU Assembly) 5.708,4.208 5.958,4.479 0.25,0.271 10 false 20 5.75,4.615 5.99,4.885 0.24,0.271 10 false 6 5.938,1.927 6.385,2.135 0.448,0.208 10 false TSW5 5.958,4.302 6.406,4.51 0.448,0.208 10 false LGCY 0.979,6.333 2.729,6.802 1.75,0.469 10 false Luggage Compartment Door Lock Assembly 5.958,4.75 6.406,4.958 0.448,0.208 10 false TR+ 3.51,4.219 3.958,4.427 0.448,0.208 10 false 34 2.958,4.219 3.167,4.427 0.208,0.208 10 false 3 2.969,5.531 3.177,5.74 0.208,0.208 10 false 1 0.938,5.521 1.146,5.729 0.208,0.208 10 false 2 1.146,5.521 1.354,5.729 0.208,0.208 10 false E 0.979,6.177 1.427,6.385 0.448,0.208 10 false L29 3.708,6.271 4.156,6.479 0.448,0.208 10 false 3E 3.719,6.427 5.344,6.875 1.625,0.448 10 false Instrument Panel Junction Block Assembly 5.5,6.354 5.948,6.563 0.448,0.208 10 false MB 5.5,6.521 7.135,6.99 1.635,0.469 10 false Main Body ECU (Multiplex Network Body ECU) 4.031,6.01 5.063,6.24 1.031,0.229 10 false BK/DR LOCK 3.531,5.51 3.979,5.719 0.448,0.208 10 false 25 0.823,7.365 2.583,7.667 1.76,0.302 10 false : CAN Communication Line 2.646,4.219 2.854,4.427 0.208,0.208 10 false D+ 2.5,5.531 2.938,5.792 0.438,0.26 10 false ACT+

CAUTION / NOTICE / HINT

NOTICE:: ·

The smart entry and start system (for Entry Function) uses the LIN communication system and CAN communication system. Inspect the communication function by following How to Proceed with Troubleshooting. Troubleshoot the smart entry and start system (for Entry Function) after confirming that the communication systems are functioning properly.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM(for Entry Function)>HOW TO PROCEED WITH TROUBLESHOOTING

·

When using the GTS with the engine switch off, connect the GTS to the DLC3 and turn a courtesy light switch on and off at intervals of 1.5 seconds or less until communication between the GTS and the vehicle begins. Then select Model Code "KEY REGIST" under manual mode and enter the following menus: Body Electrical / Entry&Start(CAN). While using the GTS, periodically turn a courtesy light switch on and off at intervals of 1.5 seconds or less to maintain communication between the GTS and the vehicle.

·

Check that there are no electrical key transmitter sub-assemblies in the vehicle.

·

Before performing the inspection, check that DTC B1242 (wireless door lock control) is not output.

Click hereVehicle Interior>DOOR LOCK>WIRELESS DOOR LOCK CONTROL SYSTEM(w/ Smart Entry and Start System)>DTC CHECK / CLEAR

·

Before replacing the certification ECU (smart key ECU assembly), refer to smart entry and start system (for Entry Function) Precaution.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM(for Entry Function)>PRECAUTION

·

After repair, confirm that no DTCs are output by performing "DTC Output Confirmation Operation".

PROCEDURE

1.READ VALUE USING GTS (TRUNK OPEN MODE)

Connect the GTS to the DLC3.

Turn the engine switch on (IG).

Turn the GTS on.

Enter the following menus: Body Electrical / Entry&Start / Data List.

Read the Data List according to the display on the GTS.

Body Electrical > Entry&Start > Data List

Tester Display	Measurement Item	Range	Normal Condition	Diagnostic Note
Trunk Open Mode	Luggage compartment door opening operation	OFF or ON	Customize setting status displayed	-

Body Electrical > Entry&Start > Data List

Tester Display
Trunk Open Mode

50003 125 3

Result:

Result	Proceed to
Trunk open mode is ON	A
Trunk open mode is OFF	B

2.READ VALUE USING GTS (TR/B-DOOR UNLOCK SW)

PERFORM CUSTOMIZE SETTING (Proceed to Customize Parameters)

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM(for Entry Function)>CUSTOMIZE PARAMETERS

2.READ VALUE USING GTS (TR/B-DOOR UNLOCK SW)

Connect the GTS to the DLC3.

Turn the engine switch on (IG).

Turn the GTS on.

Enter the following menus: Body Electrical / Entry&Start / Data List.

Read the Data List according to the display on the GTS.

Body Electrical > Entry&Start > Data List

Tester Display	Measurement Item	Range	Normal Condition	Diagnostic Note
Tr/B-Door Unlock SW	Luggage electrical key switch	OFF or ON	OFF: Luggage electrical key switch not pushed ON: Luggage electrical key switch pushed	· Displays whether the luggage electrical key switch is on or off. · Use this Data List item to help determine if there is a switch malfunction when the luggage compartment door open function does not operate.

Body Electrical > Entry&Start > Data List

Tester Display
Tr/B-Door Unlock SW

50003 125 17

OK:: The GTS display changes correctly in response to the operation of the luggage electrical key switch.

Result:

Proceed to
OK
NG

3.PERFORM ACTIVE TEST USING GTS (TRUNK AND BACK-DOOR OPEN)

12.INSPECT LUGGAGE ELECTRICAL KEY SWITCH

3.PERFORM ACTIVE TEST USING GTS (TRUNK AND BACK-DOOR OPEN)

Connect the GTS to the DLC3.

Turn the engine switch on (IG).

Turn the GTS on.

Enter the following menus: Body Electrical / Main Body / Active Test.

According to the display on the GTS, perform the Active Test.

Body Electrical > Main Body > Active Test

Tester Display	Measurement Item	Control Range	Diagnostic Note
Trunk and Back-Door Open	Operate luggage compartment door lock motor	OFF/ON	-

Body Electrical > Main Body > Active Test

Tester Display
Trunk and Back-Door Open

50004 123 3

OK:: Luggage compartment door lock motor operates.

Result:

Proceed to
OK
NG

4.CHECK WAVE ENVIRONMENT

8.INSPECT LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY

4.CHECK WAVE ENVIRONMENT

1.865,1.427 2.177,1.625 0.313,0.198 10 false *a

*a	Approximately 0.3 m (0.984 ft.)

Bring the electrical key transmitter sub-assembly approximately 0.3 m (0.984 ft.) from the electrical key antenna (outside luggage compartment) and perform an entry luggage compartment open function check.

HINT:: ·

Communication may not be possible if the electrical key transmitter sub-assembly is brought within 0.2 m (0.656 ft.) of the rear bumper.

·

When the electrical key transmitter sub-assembly is brought near the electrical key antenna (outside luggage compartment), the possibility of wave interference decreases, and it can be determined if wave interference is causing the problem symptom.

·

If the inspection result is that the problem only occurs in certain locations or at certain times of day, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.

·

There may be wave interference if the vehicle is near broadcasting antennas, large video displays, wireless garage door opener systems, wireless security cameras, home security systems, etc. In this case, move the vehicle to a different location and check if there is any improvement.

·

If a tool for checking radio waves, such as a signal strength meter, is available, move around the area while observing both the LF band (used by the vehicle antenna to form the detection area) and RF band (used by the electrical key transmitter sub-assembly for transmission) to check for locations where there is wave interference.

Result:

Proceed to
OK
NG

OK:: Entry function operates normally.

AFFECTED BY WAVE INTERFERENCE

5.CHECK KEY DIAGNOSTIC MODE

Check the following antenna in key diagnostic mode.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM(for Entry Function)>OPERATION CHECK

Body Electrical > Entry&Start > Utility

Tester Display
Communication Check(Key Diag Mode)

50005 125 1508

1.865,1.427 2.177,1.625 0.313,0.198 10 false *a

*a	0.7 to 1 m (2.30 to 3.28 ft.)

Select either channel 1 or channel 2 and inspect using key diagnostic mode for each channel.

When the electrical key transmitter sub-assembly is held at the same height as the rear bumper upper surface, align it with the center of the rear of the vehicle and check that the wireless door lock buzzer sounds.

HINT:: ·

Hold the electrical key transmitter sub-assembly at the same height as the rear bumper upper surface and align it with the center of the rear of the vehicle (0.7 to 1 m (2.30 to 3.28 ft.)). Make sure that the direction of the electrical key transmitter sub-assembly is as shown in the illustration.

·

If the buzzer sounds, it can be determined that the luggage compartment exterior transmitter is operating normally.

·

If the buzzer sounds with [CH1] displayed but not with [CH2], the electrical key transmitter sub-assembly cannot be detected by channel 2 due to a malfunction, such as wave interference.

OK:: Wireless door lock buzzer sounds.

Result:

Proceed to
OK
NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

6.CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - ELECTRICAL KEY ANTENNA (OUTSIDE LUGGAGE COMPARTMENT))

Disconnect the E109 certification ECU (smart key ECU assembly) connector.

Disconnect the L66 electrical key antenna (outside luggage compartment) connector.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
E109-1 (CG8B) - L66-2 (CLGB)	Always	Below 1 Ω
E109-2 (CLG8) - L66-1 (ANTE8)	Always	Below 1 Ω
E109-1 (CG8B) or L66-2 (CLGB) - Body ground	Always	10 kΩ or higher
E109-2 (CLG8) or L66-1 (ANTE8) - Body ground	Always	10 kΩ or higher

Result:

Proceed to
OK
NG

7.INSPECT ELECTRICAL KEY ANTENNA (OUTSIDE LUGGAGE COMPARTMENT)

REPAIR OR REPLACE HARNESS OR CONNECTOR

7.INSPECT ELECTRICAL KEY ANTENNA (OUTSIDE LUGGAGE COMPARTMENT)

1.823,1.073 2.219,0.708 2.219,0.708 2.406,0.708 false 1.583,1.073 1.198,0.708 1.198,0.708 1.01,0.708 false 2.438,0.615 2.865,0.792 0.427,0.177 10 false CLGB 0.531,0.615 1.021,0.875 0.49,0.26 10 false ANTE8 0.188,0.177 0.427,0.458 0.24,0.281 10 false *a

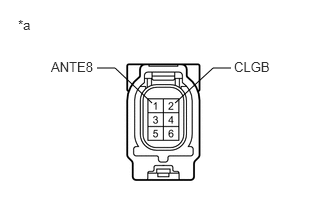

*a	Component without harness connected (Electrical Key Antenna (Outside Luggage Compartment))

Remove the electrical key antenna (outside luggage compartment).

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>ELECTRICAL KEY OSCILLATOR(for Outside Luggage Compartment)>REMOVAL

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
1 (ANTE8) - 2 (CLGB)	Always	Below 1 Ω

Result:

Proceed to
OK
NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

REPLACE ELECTRICAL KEY ANTENNA (OUTSIDE LUGGAGE COMPARTMENT)

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>ELECTRICAL KEY OSCILLATOR(for Outside Luggage Compartment)>REMOVAL

8.INSPECT LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY

Remove the luggage compartment door lock assembly.

Click hereVehicle Interior>DOOR LOCK>LUGGAGE COMPARTMENT DOOR LOCK>REMOVAL

Inspect the luggage compartment door lock assembly.

Click hereVehicle Interior>DOOR LOCK>LUGGAGE COMPARTMENT DOOR LOCK>INSPECTION

Result:

Proceed to
OK
NG

9.CHECK HARNESS AND CONNECTOR (LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY - INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY)

REPLACE LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY

Click hereVehicle Interior>DOOR LOCK>LUGGAGE COMPARTMENT DOOR LOCK>REMOVAL

9.CHECK HARNESS AND CONNECTOR (LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY - INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY)

Luggage compartment door lock motor:

Disconnect the 3E instrument panel junction block assembly connector.

ii.

Disconnect the L29 luggage compartment door lock assembly connector.

iii.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
3E-25 (TR+) - L29-1 (ACT+)	Always	Below 1 Ω
3E-25 (TR+) or L29-1 (ACT+) - Body ground	Always	10 kΩ or higher
L29-2 (E) - Body ground	Always	Below 1 Ω

Luggage door courtesy light switch:

Disconnect the 3E instrument panel junction block assembly connector.

ii.

Disconnect the L29 luggage compartment door lock assembly connector.

iii.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
3E-34 (LGCY) - L29-3 (D+)	Always	Below 1 Ω
3E-34 (LGCY) or L29-3 (D+) - Body ground	Always	10 kΩ or higher
L29-2 (E) - Body ground	Always	Below 1 Ω

Result:

Proceed to
OK
NG

10.REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

REPAIR OR REPLACE HARNESS OR CONNECTOR

10.REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

Temporarily replace the instrument panel junction block assembly with a new one.

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL

Result:

Proceed to
NEXT

11.CHECK OPERATION

Check that the luggage compartment door entry unlock function operates normally.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM(for Entry Function)>OPERATION CHECK

OK:: Luggage compartment door entry unlock function operates normally.

Result:

Proceed to
OK
NG

END (INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY WAS DEFECTIVE)

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL

12.INSPECT LUGGAGE ELECTRICAL KEY SWITCH

Remove the luggage electrical key switch.

Click hereVehicle Exterior>DOOR / HATCH>LUGGAGE COMPARTMENT DOOR OPENER OUTER SWITCH>REMOVAL

1.49,1.417 1.271,1.885 false 1.719,1.427 1.938,1.885 false 0.135,0.104 0.313,0.271 0.177,0.167 10 *a 1.156,1.917 1.385,2.083 0.229,0.167 10 UL 1.917,1.896 2.063,2.063 0.146,0.167 10 E

*a	Component without harness connected (Luggage Electrical Key Switch)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
2 (E) - 3 (UL)	Luggage electrical key switch not pushed	10 kΩ or higher
2 (E) - 3 (UL)	Luggage electrical key switch pushed	Below 1 Ω

Result:

Proceed to
OK
NG

13.CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - LUGGAGE ELECTRICAL KEY SWITCH)

REPLACE LUGGAGE ELECTRICAL KEY SWITCH

Click hereVehicle Exterior>DOOR / HATCH>LUGGAGE COMPARTMENT DOOR OPENER OUTER SWITCH>REMOVAL

13.CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - LUGGAGE ELECTRICAL KEY SWITCH)

Disconnect the E109 certification ECU (smart key ECU assembly) connector.

Disconnect the L69 luggage electrical key switch connector.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
E109-27 (TSW5) - L69-3 (UL)	Always	Below 1 Ω
E109-27 (TSW5) or L69-3 (UL) - Body ground	Always	10 kΩ or higher
L69-2 (E) - Body ground	Always	Below 1 Ω

Result:

Proceed to
OK
NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

REPAIR OR REPLACE HARNESS OR CONNECTOR
