2ZR-FE COOLING  RADIATOR  REMOVAL


PROCEDURE

Hide 51442C 1.REMOVE ENGINE UNDER COVER LH

Click hereEngine / Hybrid System>2ZR-FE ENGINE MECHANICAL>ENGINE ASSEMBLY>REMOVAL

Hide 51441C 2.REMOVE ENGINE UNDER COVER RH

Click hereEngine / Hybrid System>2ZR-FE ENGINE MECHANICAL>ENGINE ASSEMBLY>REMOVAL

Hide 3.REMOVE FRONT BUMPER ASSEMBLY

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER>REMOVAL

Hide 7.DISCONNECT RADIATOR RESERVOIR TANK HOSE

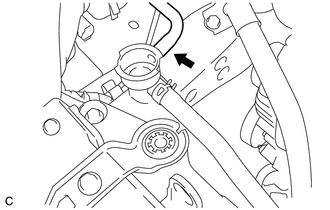

A311043

a.

Disconnect the radiator reservoir tank hose from the radiator assembly.


Hide 16573B 8.DISCONNECT NO. 3 RADIATOR HOSE

a.

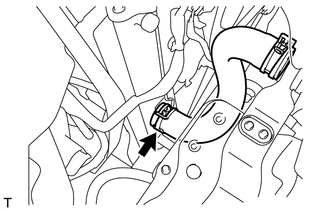

A155573

Slide the clip and disconnect the No. 3 radiator hose.


Hide 16572D 9.DISCONNECT NO. 2 RADIATOR HOSE

a.

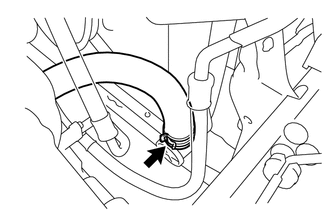

A311278

Slide the clip and disconnect the No. 2 radiator hose.


Hide 53510 10.REMOVE HOOD LOCK ASSEMBLY

Click hereVehicle Exterior>DOOR / HATCH>HOOD LOCK CONTROL CABLE ASSEMBLY>REMOVAL

Hide 16533 11.REMOVE UPPER RADIATOR SUPPORT

a.

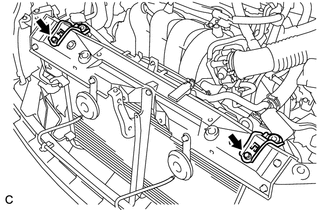

A311045

Remove the 2 bolts and 2 upper radiator supports.


b.

Remove the radiator support cushion from each upper radiator support.


Hide 53205 12.REMOVE UPPER RADIATOR SUPPORT SUB-ASSEMBLY

a.

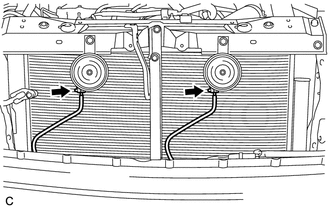

A311046

Disconnect the 2 horn connectors.


b.

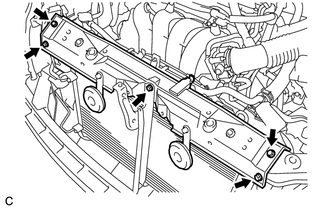

A311047

Remove the 5 bolts and upper radiator support sub-assembly.


Hide 16261N 13.DISCONNECT NO. 2 WATER BY-PASS HOSE

a.

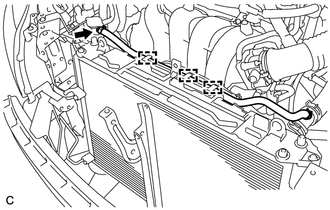

A197305

Disengage the 3 clamps.


b.

Slide the clip and disconnect the No. 2 water by-pass hose.


Hide 16712 14.REMOVE NO. 2 FAN SHROUD

a.

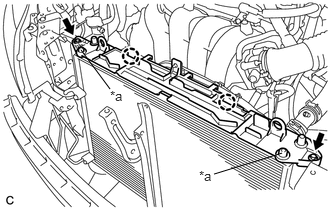

A197306C02
1.146,0.927 0.844,0.521 false 2.229,1.813 2.938,1.594 false 1.146,0.917 1.458,1.073 0.313,0.156 10 false *a 2.073,1.75 2.385,1.906 0.313,0.156 10 false *a
*a Guide


Remove the 2 bolts.


b.

Disengage the 2 claws and 2 guides to remove the No. 2 fan shroud from the radiator assembly.


Hide 16400 15.REMOVE RADIATOR ASSEMBLY

a.

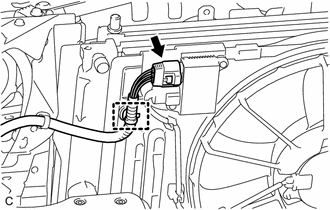

A308052

Disconnect the cooling fan ECU connector.


b.

Disengage the wire harness clamp.


c.

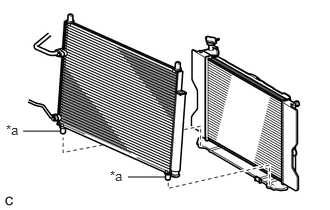

A311717C01
1.333,1.844 1.719,1.844 false 0.24,1.365 0.625,1.365 false 1.146,1.75 1.458,1.906 0.313,0.156 10 false *a 0.063,1.271 0.375,1.427 0.313,0.156 10 false *a
*a Guide


Disengage the 2 guides to disconnect the condenser assembly from the fan shroud assembly.

NOTICE:

Make sure not to damage the condenser assembly or radiator assembly when removing the condenser assembly.



d.

Remove the radiator assembly with the fan shroud assembly from the 2 lower radiator supports.

NOTICE:

Do not apply excessive force to the condenser assembly or pipe when removing the radiator assembly.



e.

Remove the 2 lower radiator supports from the vehicle body.


f.
A312140

Remove the 2 bolts and fan shroud assembly from the radiator assembly.

NOTICE:

Make sure not to damage the radiator assembly when removing the fan shroud assembly.



Hide 16400B 16.REMOVE RADIATOR DRAIN COCK PLUG

a.

Remove the radiator drain cock plug.


b.

Remove the O-ring from the radiator drain cock plug.
