67913 1.REMOVE FRONT DOOR SCUFF PLATE RH

62111C 2.REMOVE COWL SIDE TRIM BOARD RH

55606 3.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

53601 4.DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

53601 5.REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

a.

Disconnect the hood lock control cable assembly and remove the hood lock control lever sub-assembly.

6.REMOVE FRONT WHEEL RH

53875A 7.REMOVE FRONT FENDER LINER RH

53510 8.REMOVE HOOD LOCK ASSEMBLY

a.

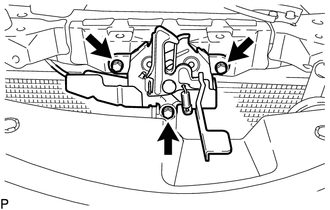

Remove the 3 bolts.

b.

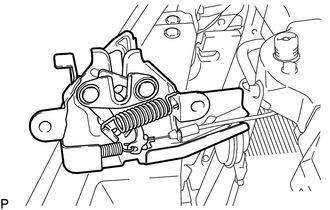

Disconnect the hood lock control cable assembly and remove the hood lock assembly.

53630 9.REMOVE HOOD LOCK CONTROL CABLE ASSEMBLY

a.

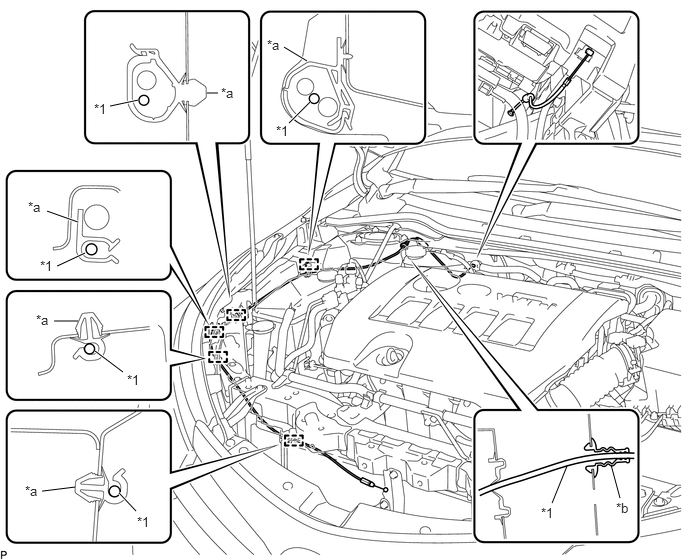

Using a screwdriver, disengage the 5 clamps and hood cable grommet as shown in the illustration.

6.458,5.188 6.365,4.844 false 5.75,5.24 5.906,4.854 false 1.417,5.323 1.24,5.135 true 0.438,5.115 0.781,5.073 false 1.281,3.875 0.99,3.656 true 0.563,3.344 0.813,3.344 false 0.885,2.635 0.594,2.771 true 0.813,2.313 0.49,2.198 true 1.438,1.042 1.146,1.104 true 2.156,0.969 2.271,0.969 false 3.198,0.635 2.958,0.49 true 3.229,1.063 3.01,1.281 true 0.979,1.052 1.292,1.208 0.313,0.156 10 false *1 2.302,0.885 2.615,1.042 0.313,0.156 10 false *a 6.417,5.208 6.729,5.365 0.313,0.156 10 false *b 2.875,1.281 3.188,1.438 0.313,0.156 10 false *1 0.417,2.688 0.729,2.844 0.313,0.156 10 false *1 1.323,3.875 1.635,4.031 0.313,0.156 10 false *1 1.427,5.354 1.74,5.51 0.313,0.156 10 false *1 5.635,5.26 5.948,5.417 0.313,0.156 10 false *1 2.781,0.385 3.094,0.542 0.313,0.156 10 false *a 0.292,2.073 0.604,2.229 0.313,0.156 10 false *a 0.375,3.25 0.688,3.406 0.313,0.156 10 false *a 0.26,5.031 0.573,5.188 0.313,0.156 10 false *a

*1	Hood Lock Control Cable Assembly	-	-
*a	Clamp	*b	Hood Cable Grommet

HINT:

Tape the screwdriver tip before use.

b.

Pull the hood lock control cable assembly from the engine compartment and remove it.
