WIPER / WASHER  WASHER MOTOR  REMOVAL


PROCEDURE

Hide 1.REMOVE FRONT WHEEL RH

Click hereSuspension>TIRE / WHEEL>TIRE AND WHEEL>REMOVAL

Hide 53875A 2.REMOVE FRONT FENDER LINER RH

a.

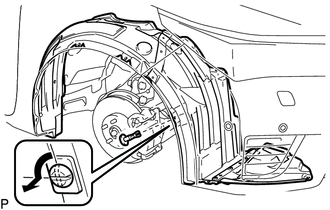

E294805
0.188,1.563 0.5,1.719 0.313,0.156 10 false *a
*a 90°


Using a screwdriver, turn the pin 90 degrees and remove the pin hold clip.


b.

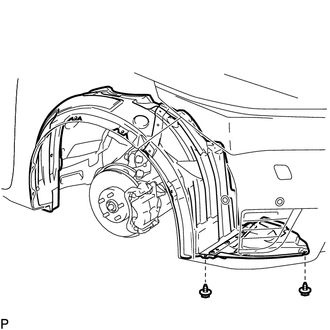

E294806

Remove the 2 screws.


c.

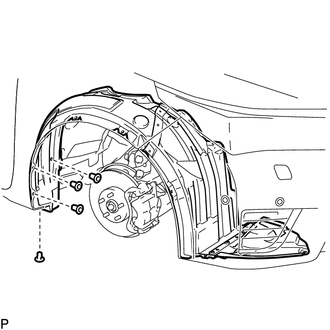

E294807

Remove the 4 grommets.


d.

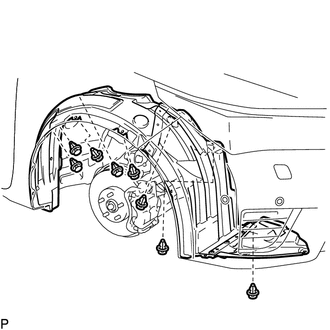

E294808

Remove the 8 clips and front fender liner RH.


Hide 3.DRAIN WINDSHIELD WASHER FLUID

a.

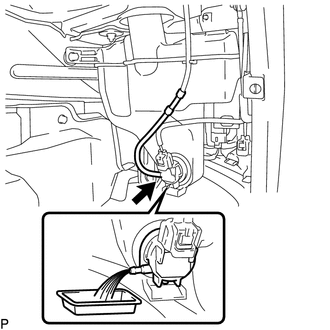

E284233

Disconnect the washer hose from the windshield washer motor and pump assembly, and drain the windshield washer fluid.

HINT:

Use a container to collect the windshield washer fluid.



Hide 85310 4.REMOVE WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY

a.
E284234

Disconnect the connector.


b.

Remove the windshield washer motor and pump assembly as shown in the illustration.
