THEFT DETERRENT / KEYLESS ENTRY  ELECTRICAL KEY OSCILLATOR(for Center Floor)  REMOVAL


PROCEDURE

Hide 1.REMOVE REAR SEAT CUSHION ASSEMBLY

for Fixed Seat Type:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY(for Fixed Seat Type)>REMOVAL

for Reclining Seat Type:

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY(for Reclining Seat Type)>REMOVAL

Hide 899A0A 2.REMOVE NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY

a.

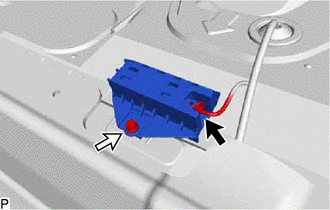

B354413

Disconnect the connector.


b.

Remove the bolt and No. 2 indoor electrical key antenna assembly.

NOTICE:

Be careful when removing the No. 2 indoor electrical key antenna assembly. If the No. 2 indoor electrical key antenna assembly is dropped, replace it with a new one.
