SEAT  REAR SEAT ASSEMBLY(for Fixed Seat Type)  REMOVAL


CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.


PROCEDURE

Hide 1.REMOVE REAR SEAT CUSHION ASSEMBLY

a.
B376000
1.01,4.24 1.146,4.146 false 1.229,3.74 1.438,3.469 true 2.948,0.833 3.083,0.833 false 2.51,0.708 2.646,0.708 false 0.833,0.75 1.083,0.917 true 1.458,3.354 1.771,3.51 0.313,0.156 10 false *a 2.354,0.604 2.667,0.76 0.313,0.156 10 false *b 0.854,4.156 1.167,4.313 0.313,0.156 10 false *c 1.115,0.844 1.427,1 0.313,0.156 10 false *d 3.094,0.729 3.313,0.906 0.219,0.177 10 false *a 0.667,4.365 0.979,4.521 0.313,0.156 12 false A
*a Rear Seat Cushion Frame Hook
*b Rear Seatback Frame Hook
*c Rear Seat Cushion Lock Hook
*d Rubber Band

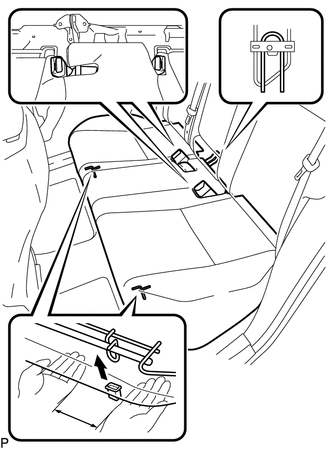

Lift up the front edge of the rear seat cushion assembly as shown in the illustration and disengage the 2 rear seat cushion frame hooks on the front side of the rear seat cushion assembly from the 2 rear seat cushion lock hooks.

NOTICE:

Be sure to hold the parts of the rear seat cushion assembly directly next to the rear seat cushion frame hook when lifting it up. Lifting a different part of the cushion may deform the rear seat cushion frame.


Standard Measurement:
Area Measurement
A 100 mm (3.94 in.) or less



b.

Disconnect the rear seat inner with center belt assembly RH from the rubber band of the rear seat cushion assembly.


c.

Pass the rear seat inner with center belt assembly RH and rear seat inner with center belt assembly LH through the slits of the rear seat cushion assembly, disengage the rear seat cushion frame hook on the rear side of the rear seat cushion assembly from the rear seatback frame hook, and remove the rear seat cushion assembly as shown in the illustration.

NOTICE:

Be careful not to damage the vehicle body.



Hide 71940A 2.REMOVE REAR SEAT HEADREST ASSEMBLY

Hide 71960B 3.REMOVE REAR SEAT CENTER HEADREST ASSEMBLY

Hide 4.REMOVE REAR SEATBACK ASSEMBLY

a.
B184584

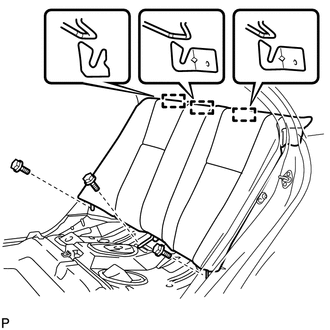

Remove the 3 bolts.


b.

Disengage the 3 hooks and remove the rear seatback assembly.

NOTICE:

Be careful not to damage the vehicle body.



Hide 72693 5.REMOVE REAR SEAT CUSHION LOCK HOOK

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY(for Reclining Seat Type)>REMOVAL
