SEAT  REAR SEAT ASSEMBLY(for Reclining Seat Type)  REMOVAL


CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.


PROCEDURE

Hide 64771 1.REMOVE SPARE WHEEL COVER

a.

Remove the spare wheel cover.


Hide 2.REMOVE REAR SEAT CUSHION ASSEMBLY

a.

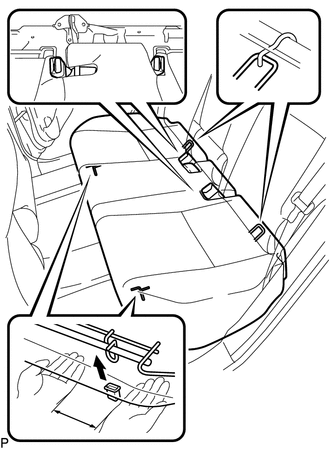

B336003
0.938,4.219 1.125,4.146 false 1.219,3.729 1.521,3.49 true 2.813,0.802 3.063,0.802 false 2.542,0.479 2.719,0.531 false 0.823,0.729 0.99,0.865 true 0.792,4.125 1.104,4.323 0.313,0.198 10 false *c 0.677,4.365 0.99,4.563 0.313,0.198 10 false A 1.573,3.365 1.76,3.573 0.188,0.208 10 true *a 3.094,0.708 3.406,0.906 0.313,0.198 10 false *a 2.375,0.365 2.688,0.563 0.313,0.198 10 false *b 1.031,0.813 1.344,1.01 0.313,0.198 10 false *d
*a Rear Seat Cushion Frame Hook
*b Rear Seatback Hinge Hook
*c Rear Seat Cushion Lock Hook
*d Rubber Band


Lift up the front edge of the rear seat cushion assembly as shown in the illustration and disengage the 2 rear seat cushion frame hooks on the front side of the rear seat cushion assembly from the 2 rear seat cushion lock hooks.

NOTICE:

Be sure to hold the parts of the rear seat cushion assembly directly next to the rear seat cushion frame hook when lifting it up. Lifting a different part of the cushion may deform the rear seat cushion frame.


Standard Measurement:
Area Measurement
A 100 mm (3.94 in.) or less


b.

Disconnect the rear seat inner with center belt assembly RH from the rubber band of the rear seat cushion assembly.


c.

Pass the rear seat inner with center belt assembly RH and rear seat inner with center belt assembly LH through the slits of the rear seat cushion assembly, disengage the 2 rear seat cushion frame hooks on the rear side of the rear seat cushion assembly from the rear seatback hinge hook, and remove the rear seat cushion assembly as shown in the illustration.

NOTICE:

Be careful not to damage the vehicle body.



Hide 71940A 3.REMOVE REAR SEAT HEADREST ASSEMBLY

Hide 71960B 4.REMOVE REAR SEAT CENTER HEADREST ASSEMBLY

Hide 5.REMOVE REAR SEATBACK ASSEMBLY LH

a.
B336004

Remove the 2 bolts.


b.

Fold the rear seatback assembly LH forward.


c.
B336005
0,0 0,0 false
V100155

Fastener


Disengage the 3 fasteners.


d.
B336049

Remove the 2 clips.


e.
B336006

Remove the 2 bolts.


f.

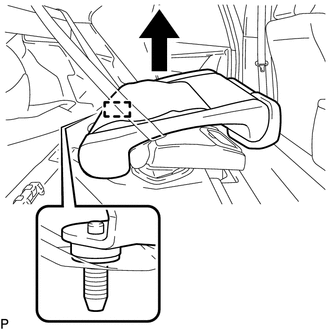

B336071

Disengage the guide to remove the rear seatback assembly LH as shown in the illustration.

NOTICE:

Be careful not to damage the vehicle body.



Hide 6.REMOVE REAR SEATBACK ASSEMBLY RH

a.
B336009

Remove the 2 bolts.


b.

Fold the rear seatback assembly RH forward.


c.
B336010
0,0 0,0 false
V100155

Fastener


Disengage the 2 fasteners.


d.
B336011

Remove the 2 clips.


e.
B336012

Remove the 2 bolts.


f.

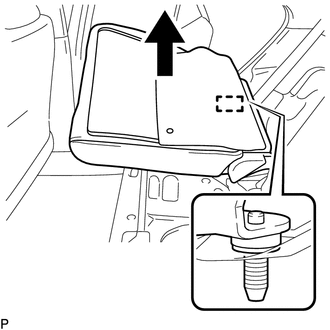

B336072

Disengage the guide to remove the rear seatback assembly RH as shown in the illustration.

NOTICE:

Be careful not to damage the vehicle body.



Hide 72693 7.REMOVE REAR SEAT CUSHION LOCK HOOK

a.
B369775

Disengage the 2 claws to remove the rear seat cushion lock hook as shown in the illustration.

HINT:

Use the same procedure for the RH side and LH side.
