SEAT BELT REAR SEAT OUTER BELT ASSEMBLY REMOVAL
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH side and LH side.
·The following procedure is for the RH side.
PROCEDURE
1.REMOVE REAR SEAT ASSEMBLY (for Fixed Seat Type)
2.REMOVE REAR SEAT ASSEMBLY (for Reclining Seat Type)
67917A
3.REMOVE REAR DOOR SCUFF PLATE RH
67918A
4.REMOVE REAR DOOR SCUFF PLATE LH
- HINT:
-
Use the same procedure as for the RH side.
62331A
5.DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH
Disconnect the rear door opening trim weatherstrip RH.
62332A
6.DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH
- HINT:
-
Use the same procedure as for the RH side.
62551F
7.REMOVE REAR SEAT SIDE GARNISH RH (for Fixed Seat Type)
62551F
8.REMOVE REAR SEAT SIDE GARNISH RH (for Reclining Seat Type)
62552F
9.REMOVE REAR SEAT SIDE GARNISH LH
- HINT:
-
Use the same procedure as for the RH side.
62470A
10.REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH
62480A
11.REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH
- HINT:
-
Use the same procedure as for the RH side.
64353
12.REMOVE PACKAGE TRAY TRIM BELT HOLE COVER
- HINT:
-
Use the same procedure for all package tray trim belt hole covers.
Disengage the 2 claws.
Disengage the 4 guides to remove the package tray trim belt hole cover.
64330
13.REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY
w/ Center Stop Light:

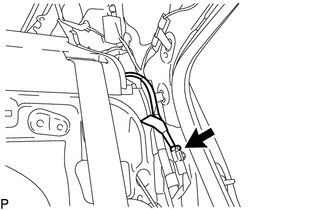

Disconnect the connector.

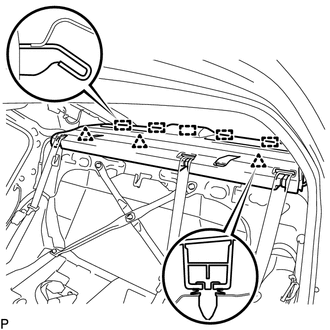

Disengage the 3 clips and 5 guides, and remove the package tray trim panel assembly.
73360B
14.REMOVE REAR SEAT OUTER BELT ASSEMBLY

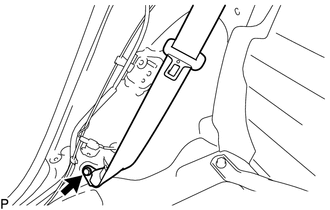

Remove the bolt and disconnect the floor anchor of the rear seat outer belt assembly.

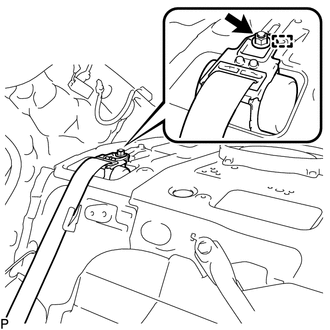

Remove the nut.
Disengage the guide to remove the rear seat outer belt assembly.
