2ZR-FE ENGINE CONTROL  SFI SYSTEM  P0365  Camshaft Position Sensor "B" Circuit (Bank 1)  P0367  Camshaft Position Sensor "B" Circuit Low Input (Bank 1)  P0368  Camshaft Position Sensor "B" Circuit High Input (Bank 1)


DESCRIPTION

The camshaft position sensor (for exhaust camshaft) (EV1 signal) consists of a magnet and MRE (Magneto Resistance Element).

The exhaust camshaft has a timing rotor for the camshaft position sensor. When the camshaft rotates, changes occur in the air gaps between the timing rotor and MRE, which affects the magnetic field. As a result, the resistance of the MRE material fluctuates. The camshaft position sensor converts the camshaft rotation data to pulse signals, uses the pulse signals to determine the camshaft angle, and sends it to the ECM. Then the ECM uses this data to control fuel injection duration, fuel injection timing and Variable Valve Timing (VVT) system.

DTC No. Detection Item DTC Detection Condition Trouble Area MIL Memory
P0365 Camshaft Position Sensor "B" Circuit (Bank 1) No camshaft position sensor (for exhaust camshaft) signal for 5 seconds at an engine speed of 600 rpm or higher (1 trip detection logic).
·

Open or short in camshaft position sensor (for exhaust camshaft) circuit

·

Camshaft position sensor (for exhaust camshaft)

·

Exhaust camshaft

·

Valve timing

·

ECM


Comes on DTC stored
P0367 Camshaft Position Sensor "B" Circuit Low Input (Bank 1) The output voltage of the camshaft position sensor (for exhaust camshaft) is less than 0.3 V for 4 seconds or more (1 trip detection logic).
·

Open or short in camshaft position sensor (for exhaust camshaft) circuit

·

Camshaft position sensor (for exhaust camshaft)

·

ECM


Comes on DTC stored
P0368 Camshaft Position Sensor "B" Circuit High Input (Bank 1) The output voltage of the camshaft position sensor (for exhaust camshaft) is higher than 4.7 V for 4 seconds or more (1 trip detection logic).
·

Open or short in camshaft position sensor (for exhaust camshaft) circuit

·

Camshaft position sensor (for exhaust camshaft)

·

ECM


Comes on DTC stored

HINT:

Reference: Inspection using an oscilloscope.

Click hereEngine / Hybrid System>2ZR-FE ENGINE CONTROL>SFI SYSTEM>P0340


MONITOR DESCRIPTION

If no pulse signal is transmitted by the camshaft position sensor (for exhaust camshaft) despite the camshaft rotating, the ECM interprets this as a malfunction of the sensor.

Also, when the sensor output voltage remains at less than 0.3 V, or higher than 4.7 V for 4 seconds or more, the ECM stores a DTC.

MONITOR STRATEGY

Required Sensors/Components (Main) Camshaft position sensor (for exhaust camshaft)
Required Sensors/Components (Related) Crankshaft position sensor
Frequency of Operation Continuous

CONFIRMATION DRIVING PATTERN

1.

Connect the GTS to the DLC3.

2.

Turn the ignition switch to ON and turn the GTS on.

3.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

4.

Turn the ignition switch off and wait for at least 30 seconds.

5.

Turn the ignition switch to ON and turn the GTS on.

6.

Start the engine.

7.

Idle the engine for 10 seconds or more.

8.

Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.

9.

Read the pending DTCs.

HINT:
·

If a pending DTC is output, the system is malfunctioning.

·

If a pending DTC is not output, perform the following procedure.



10.

Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness.

11.

Input the DTC: P0365, P0367 or P0368.

12.

Check the DTC judgment result.

GTS Display Description
NORMAL
·

DTC judgment completed

·

System normal


ABNORMAL
·

DTC judgment completed

·

System abnormal


INCOMPLETE
·

DTC judgment not completed

·

Perform driving pattern after confirming DTC enabling conditions


N/A
·

Unable to perform DTC judgment

·

Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit



HINT:
·

If the judgment result shows NORMAL, the system is normal.

·

If the judgment result shows ABNORMAL, the system has a malfunction.

·

If the judgment result shows INCOMPLETE or N/A, perform the Confirmation Driving Pattern and check the DTC judgment result again.

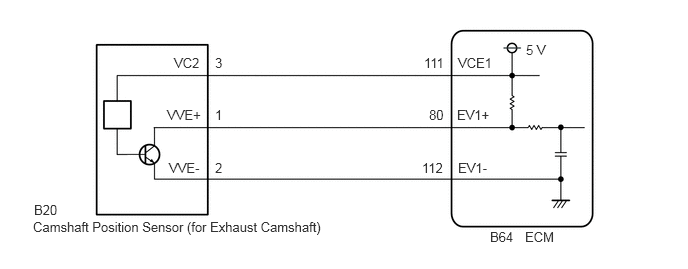

WIRING DIAGRAM

A282201E93
0.354,2.104 0.74,2.271 0.385,0.167 10 false B20 0.344,2.281 3.448,2.573 3.104,0.292 10 false Camshaft Position Sensor (for Exhaust Camshaft) 5.104,2.385 5.594,2.604 0.49,0.219 10 false B64 5.469,2.385 5.906,2.583 0.438,0.198 10 false ECM 1.813,0.573 2.188,0.854 0.375,0.281 10 false VC2 2.24,0.573 2.333,0.719 0.094,0.146 10 false 3 2.24,1.115 2.333,1.26 0.094,0.146 10 false 1 2.24,1.667 2.333,1.813 0.094,0.146 10 false 2 4.417,0.573 4.656,0.74 0.24,0.167 10 false 111 4.469,1.115 4.667,1.271 0.198,0.156 10 false 80 4.396,1.667 4.656,1.813 0.26,0.146 10 false 112 1.74,1.115 2.167,1.365 0.427,0.25 10 false VVE+ 1.76,1.667 2.167,1.865 0.406,0.198 10 false VVE- 4.771,0.573 5.167,0.802 0.396,0.229 10 false VCE1 4.76,1.115 5.135,1.385 0.375,0.271 10 false EV1+ 4.771,1.667 5.156,1.906 0.385,0.24 10 false EV1- 5.479,0.438 5.875,0.667 0.396,0.229 10 false 5 V

CAUTION / NOTICE / HINT

HINT:
·

If no problem is found through this diagnostic troubleshooting procedure, there may be a mechanical problem with the engine.

·

Read freeze frame data using the GTS. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.



PROCEDURE

1.CHECK TERMINAL VOLTAGE (POWER SOURCE OF CAMSHAFT POSITION SENSOR (FOR EXHAUST CAMSHAFT))

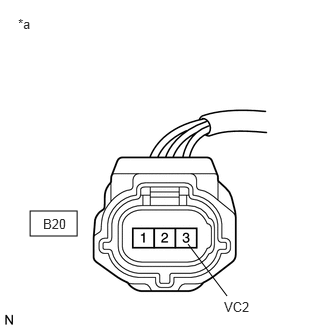

A194108C58
0.313,2.198 0.802,2.458 0.49,0.26 1.958,2.542 2.365,3.083 false 0.188,0.167 0.385,0.333 0.198,0.167 10 false *a 2.333,3.115 2.969,3.354 0.635,0.24 10 false VC2 0.448,2.25 0.792,2.667 0.344,0.417 10 false B20
*a Front view of wire harness connector
(to Camshaft Position Sensor (for Exhaust Camshaft))


a.

Disconnect the camshaft position sensor (for exhaust camshaft) connector.


b.

Turn the ignition switch to ON.


c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
B20-3 (VC2) - Body ground Ignition switch ON 4.5 to 5.5 V



Result:
Proceed to
OK
NG



OK

2.CHECK HARNESS AND CONNECTOR (CAMSHAFT POSITION SENSOR (FOR EXHAUST CAMSHAFT) - ECM)

NG

9.CHECK HARNESS AND CONNECTOR (CAMSHAFT POSITION SENSOR (FOR EXHAUST CAMSHAFT) - ECM)
2.CHECK HARNESS AND CONNECTOR (CAMSHAFT POSITION SENSOR (FOR EXHAUST CAMSHAFT) - ECM)
a.

Disconnect the camshaft position sensor (for exhaust camshaft) connector.


b.

Disconnect the ECM connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
B20-1 (VVE+) - B64-80 (EV1+) Always Below 1 Ω
B20-2 (VVE-) - B64-112 (EV1-) Always Below 1 Ω
B20-1 (VVE+) or B64-80 (EV1+) - Body ground and other terminals Always 10 kΩ or higher
B20-2 (VVE-) or B64-112 (EV1-) - Body ground and other terminals Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

3.CHECK SENSOR INSTALLATION (CAMSHAFT POSITION SENSOR (FOR EXHAUST CAMSHAFT))

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

3.CHECK SENSOR INSTALLATION (CAMSHAFT POSITION SENSOR (FOR EXHAUST CAMSHAFT))
A316078C02
0.438,2.719 0.75,2.917 0.313,0.198 10 false OK 0.417,0.708 0.729,0.906 0.313,0.198 10 false NG 2.229,1.094 2.542,1.292 0.313,0.198 10 false *a
*a Clearance


a.

Check the camshaft position sensor (for exhaust camshaft) installation condition.

OK:

Camshaft position sensor is installed correctly.



Result:
Proceed to
OK
NG



OK

4.INSPECT EXHAUST CAMSHAFT

NG

SECURELY REINSTALL CAMSHAFT POSITION SENSOR (FOR EXHAUST CAMSHAFT)

Click hereEngine / Hybrid System>2ZR-FE ENGINE CONTROL>CAMSHAFT POSITION SENSOR>INSTALLATION


4.INSPECT EXHAUST CAMSHAFT
a.

Inspect the timing rotor of the exhaust camshaft.

OK:

Camshaft timing rotor does not have any cracks or deformation.


HINT:

Perform "Inspection After Repair" after replacing the exhaust camshaft.

Click hereEngine / Hybrid System>2ZR-FE ENGINE CONTROL>SFI SYSTEM>INITIALIZATION



Result:
Proceed to
OK
NG



OK

5.REPLACE CAMSHAFT POSITION SENSOR (FOR EXHAUST CAMSHAFT)

NG

REPLACE EXHAUST CAMSHAFT

Click hereEngine / Hybrid System>2ZR-FE ENGINE MECHANICAL>CAMSHAFT>REMOVAL


5.REPLACE CAMSHAFT POSITION SENSOR (FOR EXHAUST CAMSHAFT)
a.

Replace the camshaft position sensor (for exhaust camshaft).

Click hereEngine / Hybrid System>2ZR-FE ENGINE CONTROL>CAMSHAFT POSITION SENSOR>REMOVAL


Result:
Proceed to
NEXT



NEXT

6.CHECK WHETHER DTC OUTPUT RECURS (DTC P0365, P0367 OR P0368)
6.CHECK WHETHER DTC OUTPUT RECURS (DTC P0365, P0367 OR P0368)
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Clear the DTCs.

Powertrain > Engine and ECT > Clear DTCs
50002 234

e.

Turn the ignition switch off and wait for at least 30 seconds.


f.

Start the engine.


g.

Turn the GTS on.


h.

Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.


i.

Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.


j.

Read the DTCs.

Powertrain > Engine and ECT > Trouble Codes
50001 234

Result:
Result Proceed to
DTC P0365, P0367 or P0368 is output A
DTCs are not output B



A

7.CHECK ENGINE MECHANICAL SYSTEM

B

END

7.CHECK ENGINE MECHANICAL SYSTEM
a.

Check for mechanical malfunctions that affect the valve timing, such as a jumped tooth or stretching of the timing chain.


Result:
Proceed to
OK
NG



OK

8.CHECK WHETHER DTC OUTPUT RECURS (DTC P0365, P0367 OR P0368)

NG

REPAIR OR REPLACE MALFUNCTIONING PARTS, COMPONENT AND AREA

8.CHECK WHETHER DTC OUTPUT RECURS (DTC P0365, P0367 OR P0368)
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Clear the DTCs.

Powertrain > Engine and ECT > Clear DTCs
50002 234

e.

Turn the ignition switch off and wait for at least 30 seconds.


f.

Start the engine.


g.

Turn the GTS on.


h.

Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.


i.

Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.


j.

Read the DTCs.

Powertrain > Engine and ECT > Trouble Codes
50001 234
Result:
Result Proceed to
DTCs are not output A
DTC P0365, P0367 or P0368 is output B


HINT:

If the engine does not start, replace the ECM.




A

CHECK FOR INTERMITTENT PROBLEMS

Click hereEngine / Hybrid System>2ZR-FE ENGINE CONTROL>SFI SYSTEM>CHECK FOR INTERMITTENT PROBLEMS


B

REPLACE ECM

Click hereEngine / Hybrid System>2ZR-FE ENGINE CONTROL>ECM>REMOVAL


9.CHECK HARNESS AND CONNECTOR (CAMSHAFT POSITION SENSOR (FOR EXHAUST CAMSHAFT) - ECM)
a.

Disconnect the camshaft position sensor (for exhaust camshaft) connector.


b.

Disconnect the ECM connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
B20-3 (VC2) - B64-111 (VCE1) Always Below 1 Ω
B20-3 (VC2) or B64-111 (VCE1) - Body ground and other terminals Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE ECM

Click hereEngine / Hybrid System>2ZR-FE ENGINE CONTROL>ECM>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
