SUPPLEMENTAL RESTRAINT SYSTEMS  AIRBAG SYSTEM  B1612/83  Lost Communication with Front Airbag Sensor RH  B1613/83  Front Airbag Sensor RH Initialization Incomplete


DESCRIPTION

The front airbag sensor RH circuit consists of the airbag ECU assembly and front airbag sensor RH.

The front airbag sensor RH detects impacts to the vehicle and sends signals to the airbag ECU assembly to determine if the airbag and pretensioner should be deployed.

These DTCs are stored when a malfunction is detected in the front airbag sensor RH circuit.

DTC No. Detection Item DTC Detection Condition Trouble Area Test Mode / Check Mode
B1612/83 Lost Communication with Front Airbag Sensor RH
·

The airbag ECU assembly detects a line short, short to ground or B+, or an open in the front airbag sensor RH circuit.

·

Front airbag sensor RH malfunction

·

Airbag ECU assembly malfunction


·

Instrument panel wire

·

Engine room main wire

·

Front airbag sensor RH

·

Airbag ECU assembly


Does not apply to test/check mode
B1613/83 Front Airbag Sensor RH Initialization Incomplete
·

The airbag ECU assembly detects a line short, short to ground or B+, or an open in the front airbag sensor RH circuit.

·

Front airbag sensor RH malfunction

·

Airbag ECU assembly malfunction


·

Instrument panel wire

·

Engine room main wire

·

Front airbag sensor RH

·

Airbag ECU assembly


Does not apply to test/check mode

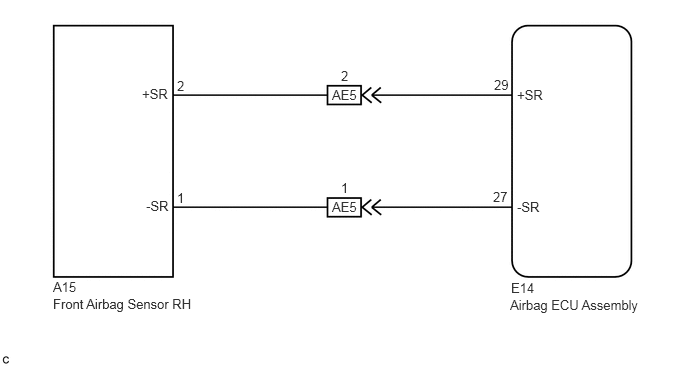

WIRING DIAGRAM

C238364E35
1.844,0.813 2.146,1.229 0.302,0.417 10 false 2 1.479,0.896 1.958,1.219 0.479,0.323 10 false +SR 1.844,1.979 2.115,2.313 0.271,0.333 10 false 1 1.521,2.063 2,2.375 0.479,0.313 10 false -SR 5.146,0.802 5.531,1.083 0.385,0.281 10 false 29 5.385,0.906 5.76,1.25 0.375,0.344 10 false +SR 5.135,1.969 5.406,2.292 0.271,0.323 10 false 27 3.458,0.906 3.917,1.302 0.458,0.396 10 false AE5 3.458,2.073 3.885,2.5 0.427,0.427 10 false AE5 3.552,0.708 3.771,1.01 0.219,0.302 10 false 2 3.552,1.875 3.781,2.156 0.229,0.281 10 false 1 5.385,2.073 5.75,2.396 0.365,0.323 10 false -SR 0.552,2.906 1.156,3.219 0.604,0.313 10 false A15 0.552,3.083 2.167,3.479 1.615,0.396 10 false Front Airbag Sensor RH 5.323,2.917 5.698,3.198 0.375,0.281 10 false E14 5.313,3.094 6.896,3.604 1.583,0.51 10 false Airbag ECU Assembly

CAUTION / NOTICE / HINT

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION


PROCEDURE

1.CHECK CONNECTORS
a.

Turn the ignition switch off.


b.

Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.



c.

Check that the connectors are properly connected to the airbag ECU assembly and front airbag sensor RH. Also check that the connectors that link the engine room main wire and instrument panel wire are properly connected.

OK:

The connectors are properly connected.


HINT:

If the connectors are not properly connected, reconnect the connectors and proceed to the next inspection.



d.

Disconnect the connectors from the airbag ECU assembly and front airbag sensor RH. Also disconnect the connectors that link the engine room main wire and instrument panel wire.


e.

Check that the terminals of the connectors are not deformed or damaged.

OK:

The terminals are not deformed or damaged.



Result:
Proceed to
OK
NG



OK

2.CHECK FRONT AIRBAG SENSOR RH CIRCUIT (OPEN)

NG

REPLACE WIRE HARNESS

2.CHECK FRONT AIRBAG SENSOR RH CIRCUIT (OPEN)
a.

Connect the connectors that link the engine room main wire and instrument panel wire.

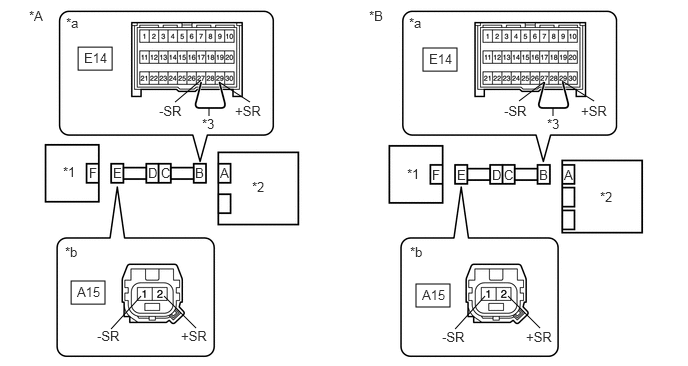

C302852C03
0.813,0.49 1.167,0.729 0.354,0.24 4.406,0.5 4.76,0.74 0.354,0.24 0.74,2.927 1.094,3.167 0.354,0.24 4.333,2.958 4.688,3.198 0.354,0.24 1.823,1.063 2.094,0.833 false 2.604,1.063 2.281,0.854 false 5.406,1.052 5.667,0.854 false 6.188,1.052 5.854,0.844 false 2.177,1.208 2.177,1.125 false 5.76,1.208 5.76,1.125 false 1.156,3.427 1.469,3.083 false 2.042,3.417 1.708,3.083 false 4.74,3.427 5.052,3.083 false 5.625,3.417 5.292,3.083 false 0.302,0.083 0.729,0.396 0.427,0.313 10 false *A 3.844,0.083 4.177,0.385 0.333,0.302 10 false *B 4.24,1.729 4.583,1.958 0.344,0.229 10 false *1 6.25,1.969 6.635,2.302 0.385,0.333 10 false *2 2.104,1.208 2.406,1.479 0.302,0.271 10 false *3 0.688,0.156 1.073,0.427 0.385,0.271 10 false *a 4.271,2.542 4.667,2.979 0.396,0.438 10 false *b 2.292,1.719 2.719,2.031 0.427,0.313 10 false A 2.031,1.719 2.458,2.031 0.427,0.313 10 false B 1.677,1.719 2.104,2.031 0.427,0.313 10 false C 1.542,1.719 1.969,2.031 0.427,0.313 10 false D 1.177,1.719 1.604,2.031 0.427,0.313 10 false E 0.927,1.719 1.354,2.031 0.427,0.313 10 false F 5.875,1.74 6.302,2.052 0.427,0.313 10 false A 5.615,1.74 6.042,2.052 0.427,0.313 10 false B 5.25,1.74 5.677,2.052 0.427,0.313 10 false C 5.125,1.74 5.552,2.052 0.427,0.313 10 false D 4.76,1.74 5.188,2.052 0.427,0.313 10 false E 4.5,1.74 4.927,2.052 0.427,0.313 10 false F 0.875,0.521 1.24,0.771 0.365,0.25 10 false E14 4.26,0.156 4.646,0.427 0.385,0.271 10 false *a 0.656,1.708 1.031,2.031 0.375,0.323 10 false *1 2.625,1.865 2.948,2.094 0.323,0.229 10 false *2 5.698,1.208 5.979,1.469 0.281,0.26 10 false *3 0.677,2.542 1.031,2.802 0.354,0.26 10 false *b 1.656,1.073 2.063,1.375 0.406,0.302 10 false -SR 2.448,1.073 2.854,1.375 0.406,0.302 10 false +SR 5.25,1.073 5.656,1.375 0.406,0.302 10 false -SR 6.052,1.073 6.458,1.375 0.406,0.302 10 false +SR 1.01,3.417 1.417,3.719 0.406,0.302 10 false -SR 1.885,3.417 2.292,3.719 0.406,0.302 10 false +SR 4.604,3.427 5.01,3.729 0.406,0.302 10 false -SR 5.479,3.427 5.885,3.729 0.406,0.302 10 false +SR 4.469,0.531 4.823,0.781 0.354,0.25 10 false E14 0.802,2.958 1.167,3.208 0.365,0.25 10 false A15 4.396,2.99 4.76,3.24 0.365,0.25 10 false A15
*A for Automatic Transaxle, Manual Transaxle without VSC *B for CVT, Manual Transaxle with VSC
*1 Front Airbag Sensor RH *2 Airbag ECU Assembly
*3 Service Wire - -
*a Front view of wire harness connector
(to Airbag ECU Assembly) 		*b Front view of wire harness connector
(to Front Airbag Sensor RH)



b.

Using a service wire, connect terminals 29 (+SR) and 27 (-SR) of connector B.

NOTICE:

Do not forcibly insert the service wire into the terminals of the connector when connecting the wire.



c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
A15-2 (+SR) - A15-1 (-SR) Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

3.CHECK FRONT AIRBAG SENSOR RH CIRCUIT (SHORT)

NG

10.CHECK INSTRUMENT PANEL WIRE (OPEN)
3.CHECK FRONT AIRBAG SENSOR RH CIRCUIT (SHORT)
a.

Disconnect the service wire from connector B.

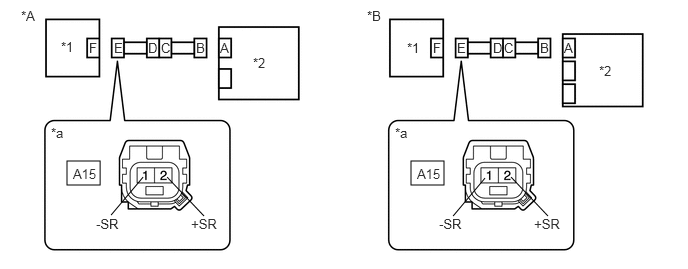

C302853C05
0.698,1.677 1.042,1.927 0.344,0.25 4.281,1.677 4.625,1.927 0.344,0.25 1.156,2.24 1.49,1.844 false 2.125,2.25 1.74,1.844 false 4.719,2.25 5.052,1.854 false 5.708,2.25 5.323,1.844 false 0.219,0.083 0.552,0.5 0.333,0.417 10 false *A 3.823,0.083 4.323,0.667 0.5,0.583 10 false *B 0.635,0.406 1.073,0.729 0.438,0.323 10 false *1 2.635,0.573 3.063,1 0.427,0.427 10 false *2 0.531,1.302 0.906,1.656 0.375,0.354 10 false *a 4.24,0.417 4.677,0.74 0.438,0.323 10 false *1 6.24,0.656 6.667,1.083 0.427,0.427 10 false *2 4.115,1.302 4.49,1.656 0.375,0.354 10 false *a 2.292,0.417 2.719,0.844 0.427,0.427 10 false A 2.042,0.417 2.469,0.844 0.427,0.427 10 false B 1.677,0.417 2.104,0.844 0.427,0.427 10 false C 1.542,0.417 1.969,0.844 0.427,0.427 10 false D 1.188,0.417 1.615,0.844 0.427,0.427 10 false E 0.927,0.417 1.354,0.844 0.427,0.427 10 false F 5.875,0.417 6.302,0.844 0.427,0.427 10 false A 5.625,0.417 6.052,0.844 0.427,0.427 10 false B 5.25,0.417 5.677,0.844 0.427,0.427 10 false C 5.135,0.417 5.563,0.844 0.427,0.427 10 false D 4.76,0.417 5.188,0.844 0.427,0.427 10 false E 4.51,0.417 4.938,0.844 0.427,0.427 10 false F 0.76,1.729 1.094,2.146 0.333,0.417 10 false A15 4.344,1.729 4.677,2.146 0.333,0.417 10 false A15 1,2.25 1.333,2.698 0.333,0.448 10 false -SR 1.99,2.25 2.323,2.698 0.333,0.448 10 false +SR 4.573,2.25 4.906,2.698 0.333,0.448 10 false -SR 5.563,2.25 5.896,2.698 0.333,0.448 10 false +SR
*A for Automatic Transaxle, Manual Transaxle without VSC *B for CVT, Manual Transaxle with VSC
*1 Front Airbag Sensor RH *2 Airbag ECU Assembly
*a Front view of wire harness connector
(to Front Airbag Sensor RH) 		- -



b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
A15-2 (+SR) - A15-1 (-SR) Always 1 MΩ or higher



Result:
Proceed to
OK
NG



OK

4.CHECK FRONT AIRBAG SENSOR RH CIRCUIT (SHORT TO B+)

NG

9.CHECK INSTRUMENT PANEL WIRE (SHORT)
4.CHECK FRONT AIRBAG SENSOR RH CIRCUIT (SHORT TO B+)
a.

Connect the cable to the negative (-) battery terminal.

C302853C05
0.698,1.677 1.042,1.927 0.344,0.25 4.281,1.677 4.625,1.927 0.344,0.25 1.156,2.24 1.49,1.844 false 2.125,2.25 1.74,1.844 false 4.719,2.25 5.052,1.854 false 5.708,2.25 5.323,1.844 false 0.219,0.083 0.552,0.5 0.333,0.417 10 false *A 3.823,0.083 4.323,0.667 0.5,0.583 10 false *B 0.635,0.406 1.073,0.729 0.438,0.323 10 false *1 2.635,0.573 3.063,1 0.427,0.427 10 false *2 0.531,1.302 0.906,1.656 0.375,0.354 10 false *a 4.24,0.417 4.677,0.74 0.438,0.323 10 false *1 6.24,0.656 6.667,1.083 0.427,0.427 10 false *2 4.115,1.302 4.49,1.656 0.375,0.354 10 false *a 2.292,0.417 2.719,0.844 0.427,0.427 10 false A 2.042,0.417 2.469,0.844 0.427,0.427 10 false B 1.677,0.417 2.104,0.844 0.427,0.427 10 false C 1.542,0.417 1.969,0.844 0.427,0.427 10 false D 1.188,0.417 1.615,0.844 0.427,0.427 10 false E 0.927,0.417 1.354,0.844 0.427,0.427 10 false F 5.875,0.417 6.302,0.844 0.427,0.427 10 false A 5.625,0.417 6.052,0.844 0.427,0.427 10 false B 5.25,0.417 5.677,0.844 0.427,0.427 10 false C 5.135,0.417 5.563,0.844 0.427,0.427 10 false D 4.76,0.417 5.188,0.844 0.427,0.427 10 false E 4.51,0.417 4.938,0.844 0.427,0.427 10 false F 0.76,1.729 1.094,2.146 0.333,0.417 10 false A15 4.344,1.729 4.677,2.146 0.333,0.417 10 false A15 1,2.25 1.333,2.698 0.333,0.448 10 false -SR 1.99,2.25 2.323,2.698 0.333,0.448 10 false +SR 4.573,2.25 4.906,2.698 0.333,0.448 10 false -SR 5.563,2.25 5.896,2.698 0.333,0.448 10 false +SR
*A for Automatic Transaxle, Manual Transaxle without VSC *B for CVT, Manual Transaxle with VSC
*1 Front Airbag Sensor RH *2 Airbag ECU Assembly
*a Front view of wire harness connector
(to Front Airbag Sensor RH) 		- -



b.

Turn the ignition switch to ON.


c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
A15-2 (+SR) - Body ground Ignition switch ON Below 1 V
A15-1 (-SR) - Body ground Ignition switch ON Below 1 V



d.

Turn the ignition switch off.


e.

Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.



Result:
Proceed to
OK
NG



OK

5.CHECK FRONT AIRBAG SENSOR RH CIRCUIT (SHORT TO GROUND)

NG

8.CHECK INSTRUMENT PANEL WIRE (SHORT TO B+)
5.CHECK FRONT AIRBAG SENSOR RH CIRCUIT (SHORT TO GROUND)
a.

Measure the resistance according to the value(s) in the table below.

C302853C05
0.698,1.677 1.042,1.927 0.344,0.25 4.281,1.677 4.625,1.927 0.344,0.25 1.156,2.24 1.49,1.844 false 2.125,2.25 1.74,1.844 false 4.719,2.25 5.052,1.854 false 5.708,2.25 5.323,1.844 false 0.219,0.083 0.552,0.5 0.333,0.417 10 false *A 3.823,0.083 4.323,0.667 0.5,0.583 10 false *B 0.635,0.406 1.073,0.729 0.438,0.323 10 false *1 2.635,0.573 3.063,1 0.427,0.427 10 false *2 0.531,1.302 0.906,1.656 0.375,0.354 10 false *a 4.24,0.417 4.677,0.74 0.438,0.323 10 false *1 6.24,0.656 6.667,1.083 0.427,0.427 10 false *2 4.115,1.302 4.49,1.656 0.375,0.354 10 false *a 2.292,0.417 2.719,0.844 0.427,0.427 10 false A 2.042,0.417 2.469,0.844 0.427,0.427 10 false B 1.677,0.417 2.104,0.844 0.427,0.427 10 false C 1.542,0.417 1.969,0.844 0.427,0.427 10 false D 1.188,0.417 1.615,0.844 0.427,0.427 10 false E 0.927,0.417 1.354,0.844 0.427,0.427 10 false F 5.875,0.417 6.302,0.844 0.427,0.427 10 false A 5.625,0.417 6.052,0.844 0.427,0.427 10 false B 5.25,0.417 5.677,0.844 0.427,0.427 10 false C 5.135,0.417 5.563,0.844 0.427,0.427 10 false D 4.76,0.417 5.188,0.844 0.427,0.427 10 false E 4.51,0.417 4.938,0.844 0.427,0.427 10 false F 0.76,1.729 1.094,2.146 0.333,0.417 10 false A15 4.344,1.729 4.677,2.146 0.333,0.417 10 false A15 1,2.25 1.333,2.698 0.333,0.448 10 false -SR 1.99,2.25 2.323,2.698 0.333,0.448 10 false +SR 4.573,2.25 4.906,2.698 0.333,0.448 10 false -SR 5.563,2.25 5.896,2.698 0.333,0.448 10 false +SR
*A for Automatic Transaxle, Manual Transaxle without VSC *B for CVT, Manual Transaxle with VSC
*1 Front Airbag Sensor RH *2 Airbag ECU Assembly
*a Front view of wire harness connector
(to Front Airbag Sensor RH) 		- -


Standard Resistance:
Tester Connection Condition Specified Condition
A15-2 (+SR) - Body ground Always 1 MΩ or higher
A15-1 (-SR) - Body ground Always 1 MΩ or higher



Result:
Proceed to
OK
NG



OK

6.CHECK FRONT AIRBAG SENSOR RH

NG

7.CHECK INSTRUMENT PANEL WIRE (SHORT TO GROUND)
6.CHECK FRONT AIRBAG SENSOR RH
a.

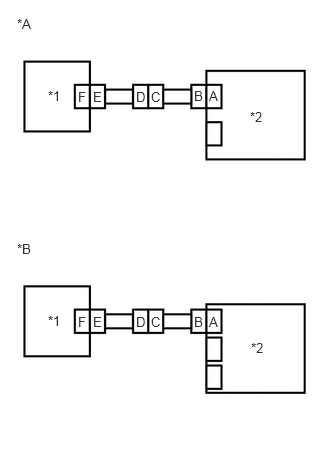

C291749C03
0.5,0.917 0.813,1.115 0.313,0.198 10 false *1 0.5,3.26 0.813,3.458 0.313,0.198 10 false *1 2.604,1.135 2.917,1.573 0.313,0.438 10 false *2 2.615,3.542 2.938,3.844 0.323,0.302 10 false *2 0.177,0.167 0.49,0.365 0.313,0.198 10 false *A 0.177,2.51 0.49,2.708 0.313,0.198 10 false *B 2.177,0.917 2.333,1.115 0.156,0.198 10 false A 2.021,3.271 2.177,3.479 0.156,0.208 10 false B 1.573,0.927 1.729,1.125 0.156,0.198 10 false C 1.417,0.927 1.573,1.125 0.156,0.198 10 false D 0.969,0.927 1.125,1.125 0.156,0.198 10 false E 2.177,3.271 2.333,3.469 0.156,0.198 10 false A 2.021,0.917 2.177,1.125 0.156,0.208 10 false B 1.573,3.271 1.729,3.469 0.156,0.198 10 false C 1.417,3.271 1.573,3.469 0.156,0.198 10 false D 0.969,3.271 1.125,3.469 0.156,0.198 10 false E 0.813,3.271 0.969,3.469 0.156,0.198 10 false F 0.813,0.927 0.969,1.125 0.156,0.198 10 false F
*A for Automatic Transaxle, Manual Transaxle without VSC
*B for CVT, Manual Transaxle with VSC
*1 Front Airbag Sensor LH
*2 Airbag ECU Assembly


Connect the connector to the airbag ECU assembly.


b.

Interchange the front airbag sensor RH with LH and connect the connectors.


c.

Connect the cable to the negative (-) battery terminal.


d.

Clear the DTCs stored in memory.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>DTC CHECK / CLEAR

Body Electrical > SRS Airbag > Clear DTCs
50002 188

e.

Turn the ignition switch off.


f.

Turn the ignition switch to ON, and wait for at least 60 seconds.


g.

Check for DTCs.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>DTC CHECK / CLEAR

Body Electrical > SRS Airbag > Trouble Codes
50001 188
HINT:

Codes other than DTCs B1612/83, B1613/83, B1617/84 and B1618/84 may be output at this time, but they are not related to this check.



Result:
Result Proceed to
DTCs B1612/83, B1613/83, B1617/84 and B1618/84 are not output. A
DTC B1617/84 or B1618/84 is output. B
DTC B1612/83 or B1613/83 is output. C


h.

Turn the ignition switch off.


i.

Disconnect the cable from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.



j.

Return the front airbag sensor RH and LH to their original positions and connect the connectors.



A

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


B

REPLACE FRONT AIRBAG SENSOR RH

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>FRONT AIRBAG SENSOR>REMOVAL


C

REPLACE AIRBAG ECU ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>CENTER AIRBAG SENSOR ASSEMBLY>REMOVAL


7.CHECK INSTRUMENT PANEL WIRE (SHORT TO GROUND)
a.

Disconnect the instrument panel wire connector from the engine room main wire.

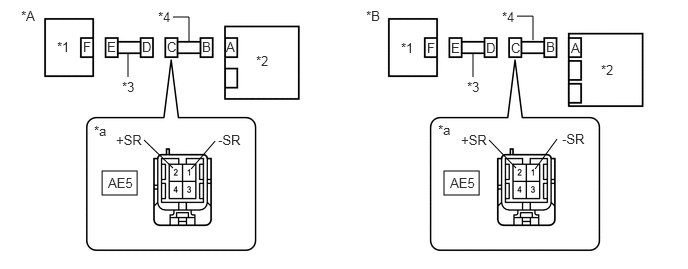

C302855C06
1.063,1.781 1.427,2.031 0.365,0.25 4.625,1.781 4.99,2.031 0.365,0.25 1.802,1.75 1.5,1.458 false 1.969,0.427 1.969,0.177 1.969,0.177 1.802,0.177 false 4.927,0.802 4.927,0.552 false 5.552,0.417 5.552,0.167 5.552,0.167 5.385,0.167 false 1.99,1.76 2.24,1.469 false 5.375,1.75 5.094,1.458 false 5.573,1.76 5.802,1.448 false 1.333,0.802 1.333,0.552 false 0.219,0.083 0.531,0.323 0.313,0.24 10 false *A 3.813,0.083 4.146,0.417 0.333,0.333 10 false *B 0.594,0.406 0.927,0.656 0.333,0.25 10 false *1 6.26,0.646 6.625,0.979 0.365,0.333 10 false *2 5.229,0.094 5.625,0.333 0.396,0.24 10 false *4 0.979,1.281 1.396,1.604 0.417,0.323 10 false *a 4.177,0.417 4.51,0.667 0.333,0.25 10 false *1 2.667,0.552 2.99,0.844 0.323,0.292 10 false *2 1.271,0.823 1.604,1.073 0.333,0.25 10 false *3 4.865,0.823 5.198,1.073 0.333,0.25 10 false *3 1.646,0.094 2.042,0.427 0.396,0.333 10 false *4 4.563,1.271 4.979,1.594 0.417,0.323 10 false *a 2.354,0.406 2.677,0.698 0.323,0.292 10 false A 2.104,0.406 2.427,0.698 0.323,0.292 10 false B 1.74,0.406 2.063,0.698 0.323,0.292 10 false C 1.479,0.406 1.802,0.698 0.323,0.292 10 false D 1.115,0.406 1.438,0.698 0.323,0.292 10 false E 0.865,0.406 1.188,0.698 0.323,0.292 10 false F 5.948,0.417 6.271,0.708 0.323,0.292 10 false A 5.688,0.406 6.01,0.698 0.323,0.292 10 false B 5.323,0.417 5.646,0.708 0.323,0.292 10 false C 5.063,0.417 5.385,0.708 0.323,0.292 10 false D 4.698,0.417 5.021,0.708 0.323,0.292 10 false E 4.448,0.417 4.771,0.708 0.323,0.292 10 false F 1.125,1.823 1.542,2.146 0.417,0.323 10 false AE5 4.688,1.823 5.104,2.146 0.417,0.323 10 false AE5 1.208,1.375 1.625,1.698 0.417,0.323 10 false +SR 2.271,1.375 2.688,1.698 0.417,0.323 10 false -SR 4.802,1.375 5.219,1.698 0.417,0.323 10 false +SR 5.854,1.365 6.271,1.688 0.417,0.323 10 false -SR
*A for Automatic Transaxle, Manual Transaxle without VSC *B for CVT, Manual Transaxle with VSC
*1 Front Airbag Sensor RH *2 Airbag ECU Assembly
*3 Engine Room Main Wire *4 Instrument Panel Wire
*a Front view of wire harness connector
(to Engine Room Main Wire) 		- -



b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
AE5-2 (+SR) - Body ground Always 1 MΩ or higher
AE5-1 (-SR) - Body ground Always 1 MΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE ENGINE ROOM MAIN WIRE

NG

REPLACE INSTRUMENT PANEL WIRE

8.CHECK INSTRUMENT PANEL WIRE (SHORT TO B+)
a.

Disconnect the instrument panel wire connector from the engine room main wire.

C302855C06
1.063,1.781 1.427,2.031 0.365,0.25 4.625,1.781 4.99,2.031 0.365,0.25 1.802,1.75 1.5,1.458 false 1.969,0.427 1.969,0.177 1.969,0.177 1.802,0.177 false 4.927,0.802 4.927,0.552 false 5.552,0.417 5.552,0.167 5.552,0.167 5.385,0.167 false 1.99,1.76 2.24,1.469 false 5.375,1.75 5.094,1.458 false 5.573,1.76 5.802,1.448 false 1.333,0.802 1.333,0.552 false 0.219,0.083 0.531,0.323 0.313,0.24 10 false *A 3.813,0.083 4.146,0.417 0.333,0.333 10 false *B 0.594,0.406 0.927,0.656 0.333,0.25 10 false *1 6.26,0.646 6.625,0.979 0.365,0.333 10 false *2 5.229,0.094 5.625,0.333 0.396,0.24 10 false *4 0.979,1.281 1.396,1.604 0.417,0.323 10 false *a 4.177,0.417 4.51,0.667 0.333,0.25 10 false *1 2.667,0.552 2.99,0.844 0.323,0.292 10 false *2 1.271,0.823 1.604,1.073 0.333,0.25 10 false *3 4.865,0.823 5.198,1.073 0.333,0.25 10 false *3 1.646,0.094 2.042,0.427 0.396,0.333 10 false *4 4.563,1.271 4.979,1.594 0.417,0.323 10 false *a 2.354,0.406 2.677,0.698 0.323,0.292 10 false A 2.104,0.406 2.427,0.698 0.323,0.292 10 false B 1.74,0.406 2.063,0.698 0.323,0.292 10 false C 1.479,0.406 1.802,0.698 0.323,0.292 10 false D 1.115,0.406 1.438,0.698 0.323,0.292 10 false E 0.865,0.406 1.188,0.698 0.323,0.292 10 false F 5.948,0.417 6.271,0.708 0.323,0.292 10 false A 5.688,0.406 6.01,0.698 0.323,0.292 10 false B 5.323,0.417 5.646,0.708 0.323,0.292 10 false C 5.063,0.417 5.385,0.708 0.323,0.292 10 false D 4.698,0.417 5.021,0.708 0.323,0.292 10 false E 4.448,0.417 4.771,0.708 0.323,0.292 10 false F 1.125,1.823 1.542,2.146 0.417,0.323 10 false AE5 4.688,1.823 5.104,2.146 0.417,0.323 10 false AE5 1.208,1.375 1.625,1.698 0.417,0.323 10 false +SR 2.271,1.375 2.688,1.698 0.417,0.323 10 false -SR 4.802,1.375 5.219,1.698 0.417,0.323 10 false +SR 5.854,1.365 6.271,1.688 0.417,0.323 10 false -SR
*A for Automatic Transaxle, Manual Transaxle without VSC *B for CVT, Manual Transaxle with VSC
*1 Front Airbag Sensor RH *2 Airbag ECU Assembly
*3 Engine Room Main Wire *4 Instrument Panel Wire
*a Front view of wire harness connector
(to Engine Room Main Wire) 		- -



b.

Connect the cable to the negative (-) battery terminal.


c.

Turn the ignition switch to ON.


d.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
AE5-2 (+SR) - Body ground Ignition switch ON Below 1 V
AE5-1 (-SR) - Body ground Ignition switch ON Below 1 V



Result:
Proceed to
OK
NG



OK

REPLACE ENGINE ROOM MAIN WIRE

NG

REPLACE INSTRUMENT PANEL WIRE

9.CHECK INSTRUMENT PANEL WIRE (SHORT)
a.

Disconnect the instrument panel wire connector from the engine room main wire.

C302855C06
1.063,1.781 1.427,2.031 0.365,0.25 4.625,1.781 4.99,2.031 0.365,0.25 1.802,1.75 1.5,1.458 false 1.969,0.427 1.969,0.177 1.969,0.177 1.802,0.177 false 4.927,0.802 4.927,0.552 false 5.552,0.417 5.552,0.167 5.552,0.167 5.385,0.167 false 1.99,1.76 2.24,1.469 false 5.375,1.75 5.094,1.458 false 5.573,1.76 5.802,1.448 false 1.333,0.802 1.333,0.552 false 0.219,0.083 0.531,0.323 0.313,0.24 10 false *A 3.813,0.083 4.146,0.417 0.333,0.333 10 false *B 0.594,0.406 0.927,0.656 0.333,0.25 10 false *1 6.26,0.646 6.625,0.979 0.365,0.333 10 false *2 5.229,0.094 5.625,0.333 0.396,0.24 10 false *4 0.979,1.281 1.396,1.604 0.417,0.323 10 false *a 4.177,0.417 4.51,0.667 0.333,0.25 10 false *1 2.667,0.552 2.99,0.844 0.323,0.292 10 false *2 1.271,0.823 1.604,1.073 0.333,0.25 10 false *3 4.865,0.823 5.198,1.073 0.333,0.25 10 false *3 1.646,0.094 2.042,0.427 0.396,0.333 10 false *4 4.563,1.271 4.979,1.594 0.417,0.323 10 false *a 2.354,0.406 2.677,0.698 0.323,0.292 10 false A 2.104,0.406 2.427,0.698 0.323,0.292 10 false B 1.74,0.406 2.063,0.698 0.323,0.292 10 false C 1.479,0.406 1.802,0.698 0.323,0.292 10 false D 1.115,0.406 1.438,0.698 0.323,0.292 10 false E 0.865,0.406 1.188,0.698 0.323,0.292 10 false F 5.948,0.417 6.271,0.708 0.323,0.292 10 false A 5.688,0.406 6.01,0.698 0.323,0.292 10 false B 5.323,0.417 5.646,0.708 0.323,0.292 10 false C 5.063,0.417 5.385,0.708 0.323,0.292 10 false D 4.698,0.417 5.021,0.708 0.323,0.292 10 false E 4.448,0.417 4.771,0.708 0.323,0.292 10 false F 1.125,1.823 1.542,2.146 0.417,0.323 10 false AE5 4.688,1.823 5.104,2.146 0.417,0.323 10 false AE5 1.208,1.375 1.625,1.698 0.417,0.323 10 false +SR 2.271,1.375 2.688,1.698 0.417,0.323 10 false -SR 4.802,1.375 5.219,1.698 0.417,0.323 10 false +SR 5.854,1.365 6.271,1.688 0.417,0.323 10 false -SR
*A for Automatic Transaxle, Manual Transaxle without VSC *B for CVT, Manual Transaxle with VSC
*1 Front Airbag Sensor RH *2 Airbag ECU Assembly
*3 Engine Room Main Wire *4 Instrument Panel Wire
*a Front view of wire harness connector
(to Engine Room Main Wire) 		- -



b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
AE5-2 (+SR) - AE5-1 (-SR) Always 1 MΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE ENGINE ROOM MAIN WIRE

NG

REPLACE INSTRUMENT PANEL WIRE

10.CHECK INSTRUMENT PANEL WIRE (OPEN)
a.

Disconnect the instrument panel wire connector from the engine room main wire.

HINT:

The service wire has already been inserted into connector B.

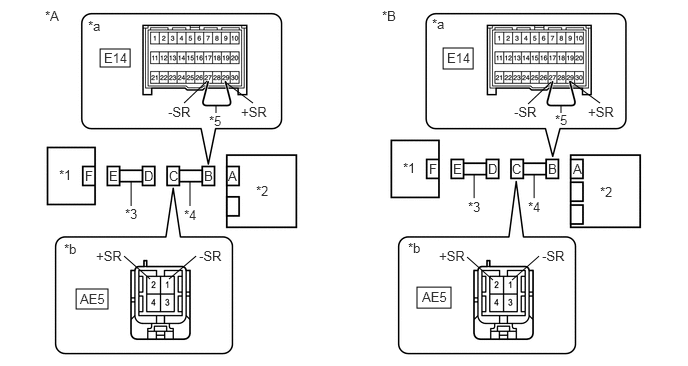

C302854C03
1.042,0.51 1.354,0.698 0.313,0.188 4.615,0.5 4.927,0.719 0.313,0.219 0.792,3.01 1.125,3.219 0.333,0.208 4.344,2.99 4.698,3.208 0.354,0.219 1.365,2.146 1.365,1.896 false 4.938,2.063 4.938,1.813 false 1.979,2.146 1.979,1.896 false 5.563,2.063 5.563,1.813 false 2.25,1.177 2.25,1.094 false 5.844,1.177 5.844,1.094 false 1.917,1.073 2.156,0.844 false 2.635,1.073 2.344,0.854 false 5.5,1.083 5.74,0.854 false 6.25,1.073 5.938,0.844 false 1.563,2.906 1.292,2.667 false 1.76,2.906 2.042,2.667 false 5.135,2.917 4.865,2.677 false 5.333,2.917 5.615,2.667 false 0.469,0.083 0.802,0.417 0.333,0.333 10 false *A 3.979,0.083 4.479,0.417 0.5,0.333 10 false *B 0.615,1.74 1.01,2.073 0.396,0.333 10 false *1 2.667,1.906 3.083,2.24 0.417,0.333 10 false *2 1.302,2.146 1.635,2.385 0.333,0.24 10 false *3 1.917,2.156 2.25,2.406 0.333,0.25 10 false *4 1.75,1.083 2.167,1.333 0.417,0.25 10 false -SR 0.917,0.188 1.333,0.521 0.417,0.333 10 false *a 0.667,2.51 1,2.833 0.333,0.323 10 false *b 4.5,0.167 4.917,0.5 0.417,0.333 10 false *a 4.25,2.5 4.583,2.823 0.333,0.323 10 false *b 4.198,1.667 4.594,2 0.396,0.333 10 false *1 6.25,1.917 6.667,2.25 0.417,0.333 10 false *2 4.875,2.073 5.208,2.313 0.333,0.24 10 false *3 5.5,2.073 5.833,2.323 0.333,0.25 10 false *4 2.177,1.177 2.594,1.51 0.417,0.333 10 false *5 2.51,1.083 2.927,1.333 0.417,0.25 10 false +SR 5.354,1.083 5.771,1.333 0.417,0.25 10 false -SR 6.125,1.083 6.542,1.333 0.417,0.25 10 false +SR 5.781,1.167 6.177,1.49 0.396,0.323 10 false *5 1.083,0.521 1.5,0.771 0.417,0.25 10 false E14 4.656,0.521 5.073,0.771 0.417,0.25 10 false E14 0.833,3.031 1.25,3.281 0.417,0.25 10 false AE5 4.396,3.01 4.813,3.26 0.417,0.25 10 false AE5 1,2.583 1.417,2.833 0.417,0.25 10 false +SR 2.073,2.583 2.49,2.833 0.417,0.25 10 false -SR 5.646,2.583 6.063,2.833 0.417,0.25 10 false -SR 4.573,2.583 4.99,2.833 0.417,0.25 10 false +SR 2.375,1.75 2.792,2.083 0.417,0.333 10 false A 2.125,1.75 2.542,2.083 0.417,0.333 10 false B 1.76,1.75 2.177,2.083 0.417,0.333 10 false C 1.5,1.75 1.917,2.083 0.417,0.333 10 false D 1.135,1.75 1.552,2.083 0.417,0.333 10 false E 0.885,1.75 1.302,2.083 0.417,0.333 10 false F 5.969,1.677 6.385,2.01 0.417,0.333 10 false A 5.708,1.677 6.125,2.01 0.417,0.333 10 false B 5.333,1.677 5.75,2.01 0.417,0.333 10 false C 5.083,1.677 5.5,2.01 0.417,0.333 10 false D 4.719,1.677 5.135,2.01 0.417,0.333 10 false E 4.469,1.677 4.885,2.01 0.417,0.333 10 false F
*A for Automatic Transaxle, Manual Transaxle without VSC *B for CVT, Manual Transaxle with VSC
*1 Front Airbag Sensor RH *2 Airbag ECU Assembly
*3 Engine Room Main Wire *4 Instrument Panel Wire
*5 Service Wire - -
*a Front view of wire harness connector
(to Airbag ECU Assembly) 		*b Front view of wire harness connector
(to Engine Room Main Wire)



b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
AE5-2 (+SR) - AE5-1 (-SR) Always Below 1 Ω



c.

Disconnect the service wire from connector B.


Result:
Proceed to
OK
NG



OK

REPLACE ENGINE ROOM MAIN WIRE

NG

REPLACE INSTRUMENT PANEL WIRE
