SUPPLEMENTAL RESTRAINT SYSTEMS CENTER AIRBAG SENSOR ASSEMBLY REMOVAL

PROCEDURE

Hide Display 1. PRECAUTION

CAUTION:: Be sure to read Precaution thoroughly before servicing.; Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>PRECAUTION

NOTICE:: After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.; Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION

Hide Display 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NOTICE:: When disconnecting the cable, some systems need to be initialized after the cable is reconnected.; Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>INITIALIZATION

Hide Display 58817A 3.REMOVE FRONT NO. 2 CONSOLE BOX INSERT

Hide Display 58816B 4.REMOVE CONSOLE BOX INSERT

Hide Display 89170A 5.REMOVE AIRBAG ECU ASSEMBLY

Check that the ignition switch is off.

Check that the cable is disconnected from the negative (-) battery terminal.

CAUTION:: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

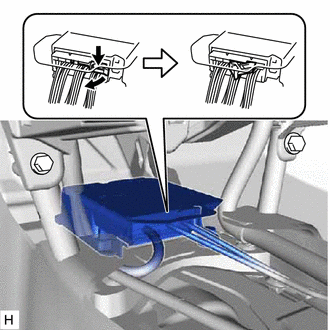

Disconnect the connectors from the airbag ECU assembly as shown in the illustration.

NOTICE:: When disconnecting any airbag connector, take care not to damage the airbag wire harness.

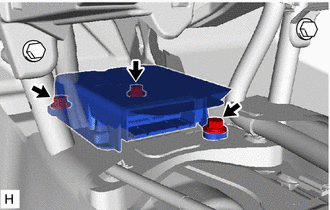

Remove the 3 bolts and airbag ECU assembly.
